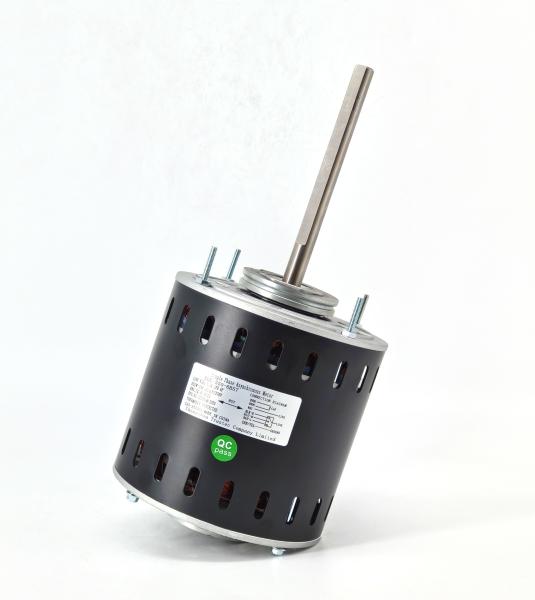

48 Frame Direct Drive AC Blower Motor - 3/4HP 1075RPM/3SPD 115V 60HZ
48 Frame Direct Drive AC Blower Motor - 3/4HP 1075RPM/3SPD 115V 60HZ
48 Frame Direct Drive AC Blower Motor - 3/4HP 1075RPM/3SPD 115V 60HZ
48 Frame Direct Drive AC Blower Motor - 3/4HP 1075RPM/3SPD 115V 60HZ
48 Frame Direct Drive AC Blower Motor - 3/4HP 1075RPM/3SPD 115V 60HZ
48 Frame Direct Drive AC Blower Motor - 3/4HP 1075RPM/3SPD 115V 60HZ
Specifications
Brand Name :
trusTec
Model Number :
YDK-550-6B57-UNB
Certification :
CE、UL529388
Place of Origin :
Changzhou, China
MOQ :
200 pcs
Price :
Negotiable (FOB/CNF/CIF)
Payment Terms :
T/T, L/C
Supply Ability :
100,000 pcs per month
Delivery Time :
15 days fresh products after order confirmation.
Packaging Details :
Standard carton packing, foam board inside for protection.
Product :
Direct Drive Blower Motor
Frame :
Nema 48
Motor Type :
Permanent Split Capacitor
Supply Voltage :
115V
Enclosure Type :
OAO (Open Air Over)
Supply Frequency :
60Hz
Thermal Overload :
Equipped with an Automatic Thermal Overload
Current :
8.2A
Phase :
Single Phase
Output HP :
3/4HP
Shaft Flats :
One flat
Rated Speed :
1075RPM/3SPD
Mounting Orientation :
All angle
Capacitor :
20uF/370V
Mounting :
Stud Mounting All Angel
Shaft Diameter :
1/2" / 12.7mm
Insulation Class :
Class B
Shaft Length :
5.75" / 146.05mm
Bearings :
Ball Bearing
Flat Length :
4.6" / 116.84mm
Max. Ambient Temperature :
40℃/104℉
Lead Length :
22.8" / 580mm
Rotation :
Reversible
Screw Length :
1.62" / 41.1mm
Pole :
6P
Motor Shell Length :
5.48" / 139.2mm
PF :
0.9
Description
Send your message to this supplier
Send Now

48 Frame Direct Drive AC Blower Motor - 3/4HP 1075RPM/3SPD 115V 60HZ

Ask Latest Price
Watch Video
Product Detail
Brand Name :
trusTec
Model Number :
YDK-550-6B57-UNB
Certification :
CE、UL529388
Place of Origin :
Changzhou, China
MOQ :
200 pcs
Price :
Negotiable (FOB/CNF/CIF)
Contact Supplier
video
48 Frame Direct Drive AC Blower Motor - 3/4HP 1075RPM/3SPD 115V 60HZ
48 Frame Direct Drive AC Blower Motor - 3/4HP 1075RPM/3SPD 115V 60HZ
48 Frame Direct Drive AC Blower Motor - 3/4HP 1075RPM/3SPD 115V 60HZ
