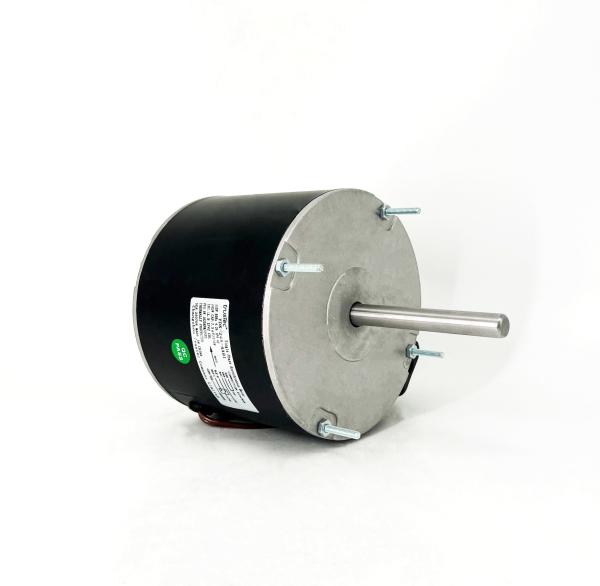

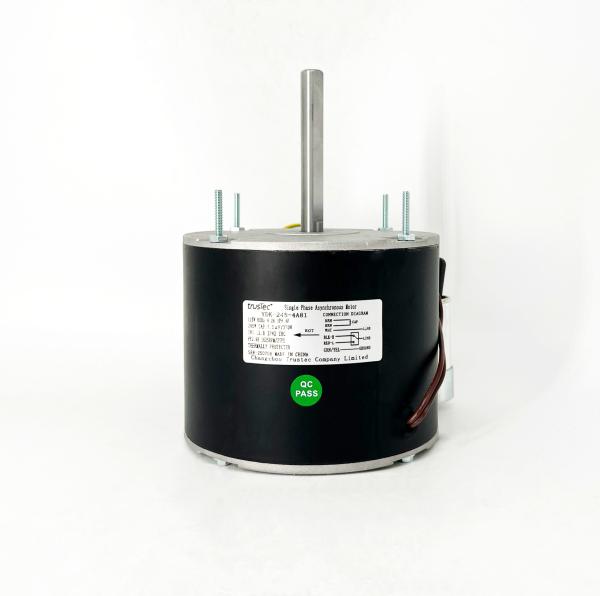

Condenser Fan Motor YDK-245-4A81-245W 1625RPM/2SPD 115V 60HZ
Condenser Fan Motor YDK-245-4A81-245W 1625RPM/2SPD 115V 60HZ
Condenser Fan Motor YDK-245-4A81-245W 1625RPM/2SPD 115V 60HZ
Condenser Fan Motor YDK-245-4A81-245W 1625RPM/2SPD 115V 60HZ
Condenser Fan Motor YDK-245-4A81-245W 1625RPM/2SPD 115V 60HZ
Condenser Fan Motor YDK-245-4A81-245W 1625RPM/2SPD 115V 60HZ
Specifications
Brand Name :
trusTec
Model Number :
YDK-245-4A81-CHG
Certification :
CE、UL529388
Place of Origin :
Changzhou, China
MOQ :
200 pcs
Price :
Negotiable (FOB/CNF/CIF)
Payment Terms :
T/T, L/C
Supply Ability :
100,000 pcs per month
Delivery Time :
15 days fresh products after order confirmation.
Packaging Details :
Standard carton packing, foam board inside for protection.
Product :
Condenser Fan Motor
Frame :
142mm
Motor Type :
Permanent Split Capacitor
Supply Voltage :
115V
Enclosure Type :
TEAO(Totally Enclosed Air Over)
Supply Frequency :
60Hz
Thermal Overload :
Equipped With An Automatic Thermal Overload
Current :
4.2A
Phase :
Single Phase
Output HP :
245W
Shaft Flat :
One Flat
Speed :
1625RPM/2SPD
Mounting Orientation :
All Angle
Capacitor :
7.5μF/370V
Insulation Class :
Class B
Pole :
4P
Bearings :
Ball Bearing
Shaft Diameter :
0.5"/12.7mm
Rotation :
CW
PF :
0.98
Max. Ambient Temperature :
40℃/104℉
Lead Length :
11.81"/300mm
Motor Shell Length :
4.37"/111mm
Shaft Length :
4.72"/120mm
Flat Length :
3.23"/82mm
Screw Length :
1.06"/27mm
Description
