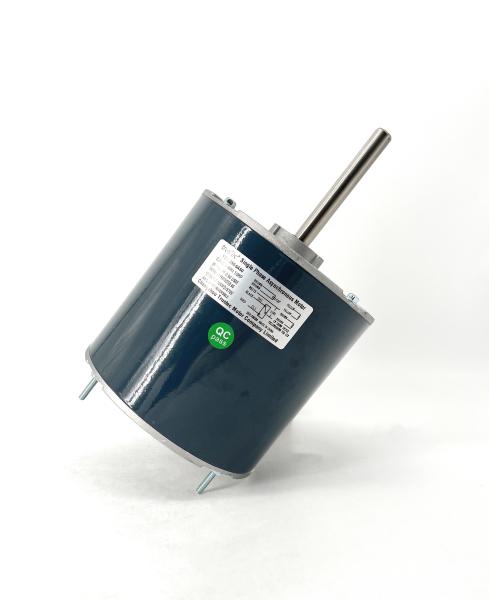

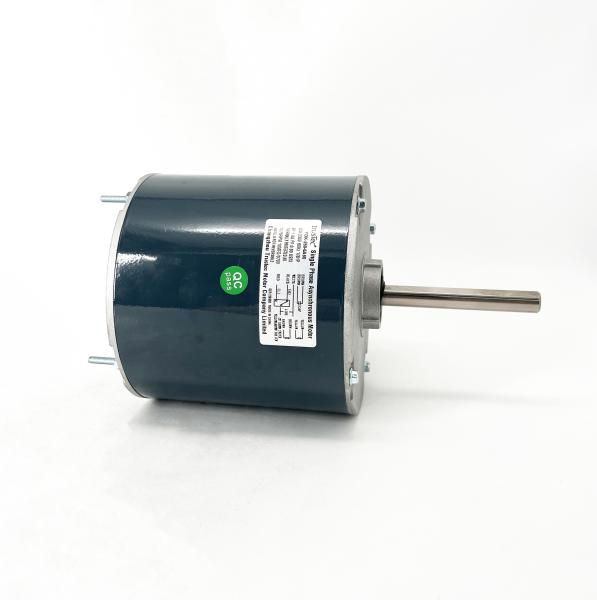

Condenser Fan Motor YDK-250-6A60-250W 1075RPM 208-230V 60HZ
Condenser Fan Motor YDK-250-6A60-250W 1075RPM 208-230V 60HZ
Condenser Fan Motor YDK-250-6A60-250W 1075RPM 208-230V 60HZ
Condenser Fan Motor YDK-250-6A60-250W 1075RPM 208-230V 60HZ
Condenser Fan Motor YDK-250-6A60-250W 1075RPM 208-230V 60HZ
Condenser Fan Motor YDK-250-6A60-250W 1075RPM 208-230V 60HZ
Specifications
Brand Name :
trusTec
Model Number :
YDK-250-6A60-USM
Certification :
CE、UL529388
Place of Origin :
Changzhou, China
MOQ :
200 pcs
Price :
Negotiable (FOB/CNF/CIF)
Payment Terms :
T/T, L/C
Supply Ability :
100,000 pcs per month
Delivery Time :
15 days fresh products after order confirmation.
Packaging Details :
Standard carton packing, foam board inside for protection.
Product :
Condenser Fan Motor
Frame :
142mm
Motor Type :
Permanent Split Capacitor
Supply Voltage :
208-230V
Enclosure Type :
TEAO(Totally Enclosed Air Over)
Supply Frequency :
60Hz
Thermal Overload :
Equipped With An Automatic Thermal Overload
Current :
1.8A
Phase :
Single Phase
Output HP :
250W
Shaft Flat :
One Flat
Speed :
1075RPM
Mounting Orientation :
All Angle
Capacitor :
10MFD/370V
Insulation Class :
Class B
Pole :
6P
Bearings :
Ball Bearing
Shaft Diameter :
12mm/0.47"
Rotation :
Reversible
Shaft Length :
101.6mm/4.00"
PF :
0.90
Flat Length :
90mm/3.54"
Max. Ambient Temperature :
40℃/104℉
Lead Length :
890mm/35.04"
Motor Shell Length :
135mm/5.31"
Screw Length :
13mm/0.51"
