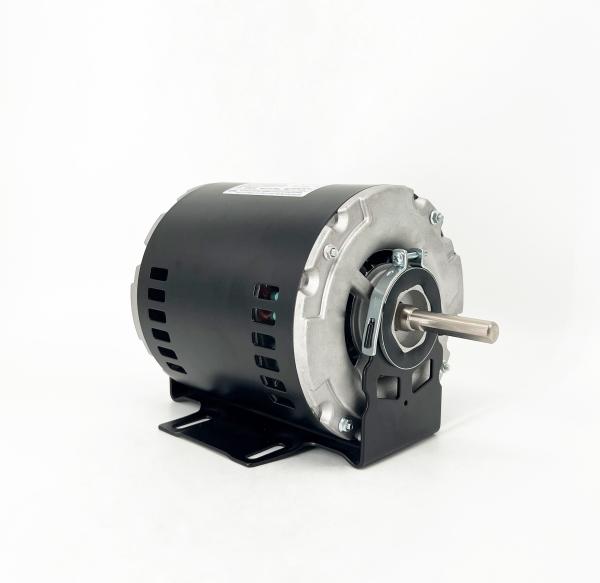

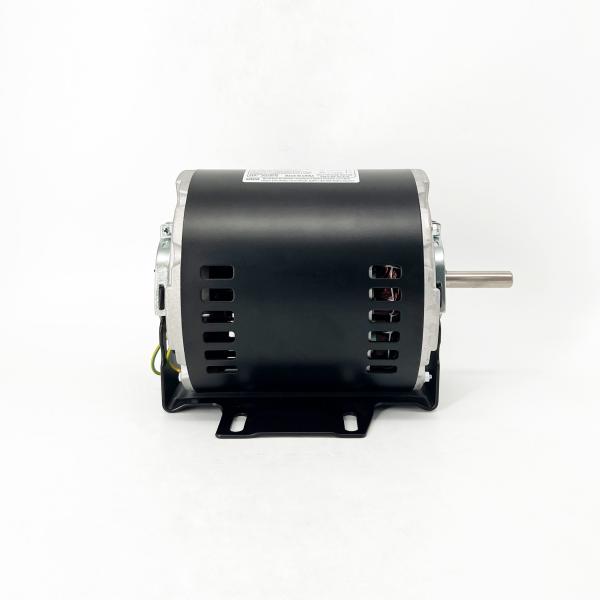

Evaporative Air Cooler Motor YDK160-375-4A2- 1/2HP/1/6HP 1425/1725/940/1140RPM 220/230V 50/60HZ
Evaporative Air Cooler Motor YDK160-375-4A2- 1/2HP/1/6HP 1425/1725/940/1140RPM 220/230V 50/60HZ
Evaporative Air Cooler Motor YDK160-375-4A2- 1/2HP/1/6HP 1425/1725/940/1140RPM 220/230V 50/60HZ
Evaporative Air Cooler Motor YDK160-375-4A2- 1/2HP/1/6HP 1425/1725/940/1140RPM 220/230V 50/60HZ
Evaporative Air Cooler Motor YDK160-375-4A2- 1/2HP/1/6HP 1425/1725/940/1140RPM 220/230V 50/60HZ
Evaporative Air Cooler Motor YDK160-375-4A2- 1/2HP/1/6HP 1425/1725/940/1140RPM 220/230V 50/60HZ
Evaporative Air Cooler Motor YDK160-375-4A2- 1/2HP/1/6HP 1425/1725/940/1140RPM 220/230V 50/60HZ
Evaporative Air Cooler Motor YDK160-375-4A2- 1/2HP/1/6HP 1425/1725/940/1140RPM 220/230V 50/60HZ
Specifications
Brand Name :
trusTec
Model Number :
YDK160-375-4A2-DNW
Certification :
CE、UL529388
Place of Origin :
Changzhou, China
MOQ :
200 pcs
Price :
Negotiable (FOB/CNF/CIF)
Payment Terms :
T/T, L/C
Supply Ability :
100,000 pcs per month
Delivery Time :
15 days fresh products after order confirmation.
Packaging Details :
Standard carton packing, foam board inside for protection.
Product :
Air Cooler Fan Motor
Frame :
163mm
Motor Type :
Evaporative Air Cooler Motor
Supply Voltage :
220V/230V
Enclosure Type :
OAO(Open Air Over)
Supply Frequency :
50/60Hz
Thermal Overload :
Equipped With An Automatic Thermal Overload
Current :
4.3A/3.6A/2.1A/1.8A
Phase :
Single Phase
Output HP :
1/2HP、1/6HP
Shaft Flat :
One Flat
Speed :
1425/1725/940/1140RPM
Mounting Orientation :
All Angle
Pole :
4P、6P
Insulation Class :
Class F
Shaft Diameter :
17mm/0.67"
Bearings :
Ball Bearing
PF :
0.72
Shaft Length :
55mm/2.17"
Rotation :
CW-SE
Flat Length :
46mm/1.81"
Max. Ambient Temperature :
40℃/104℉
Motor Shell Length :
174.5mm/6.87"
