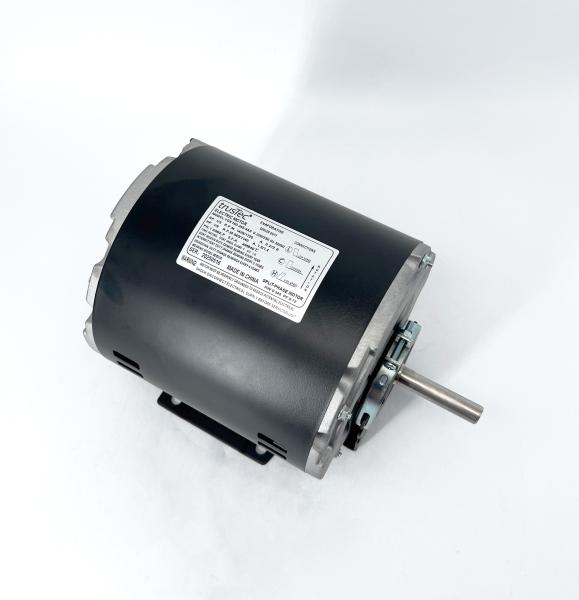

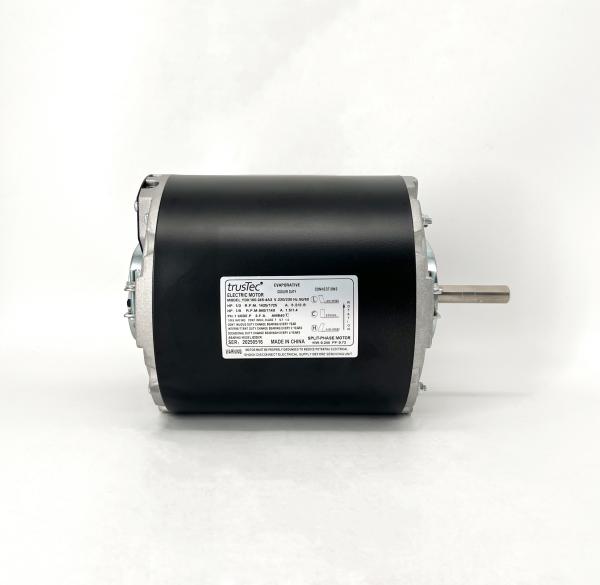

Evaporative Air Cooler Motor YDK160-245-4A3- 1/3HP/1/9HP 1425/1725/940/1140RPM 220/230V 50/60HZ
Evaporative Air Cooler Motor YDK160-245-4A3- 1/3HP/1/9HP 1425/1725/940/1140RPM 220/230V 50/60HZ
Evaporative Air Cooler Motor YDK160-245-4A3- 1/3HP/1/9HP 1425/1725/940/1140RPM 220/230V 50/60HZ
Evaporative Air Cooler Motor YDK160-245-4A3- 1/3HP/1/9HP 1425/1725/940/1140RPM 220/230V 50/60HZ
Evaporative Air Cooler Motor YDK160-245-4A3- 1/3HP/1/9HP 1425/1725/940/1140RPM 220/230V 50/60HZ
Evaporative Air Cooler Motor YDK160-245-4A3- 1/3HP/1/9HP 1425/1725/940/1140RPM 220/230V 50/60HZ
Evaporative Air Cooler Motor YDK160-245-4A3- 1/3HP/1/9HP 1425/1725/940/1140RPM 220/230V 50/60HZ
Evaporative Air Cooler Motor YDK160-245-4A3- 1/3HP/1/9HP 1425/1725/940/1140RPM 220/230V 50/60HZ
Specifications
Brand Name :
trusTec
Model Number :
YDK160-245-4A3-DNW
Certification :
CE、UL529388
Place of Origin :
Changzhou, China
MOQ :
200 pcs
Price :
Negotiable (FOB/CNF/CIF)
Payment Terms :
T/T, L/C
Supply Ability :
100,000 pcs per month
Delivery Time :
15 days fresh products after order confirmation.
Packaging Details :
Standard carton packing, foam board inside for protection.
Product :
Air Cooler Fan Motor
Frame :
163mm
Motor Type :
Evaporative Air Cooler Motor
Supply Voltage :
220V/230V
Enclosure Type :
OAO(Open Air Over)
Supply Frequency :
50/60Hz
Thermal Overload :
Equipped With An Automatic Thermal Overload
Current :
3.2A/2.8A/1.5A/1.4A
Phase :
Single Phase
Output HP :
1/3HP、1/9HP
Shaft Flat :
One Flat
Speed :
1425/1725/940/1140RPM
Mounting Orientation :
All Angle
Pole :
4P
Insulation Class :
Class F
Shaft Diameter :
17mm/0.67"
Bearings :
Ball Bearing
PF :
0.72
Shaft Length :
55mm/2.17"
Rotation :
CW-SE
Flat Length :
46mm/1.81"
Max. Ambient Temperature :
40℃/104℉
Motor Shell Length :
174.5mm/6.87"
Description
Send your message to this supplier
Send Now

Evaporative Air Cooler Motor YDK160-245-4A3- 1/3HP/1/9HP 1425/1725/940/1140RPM 220/230V 50/60HZ

Ask Latest Price
Product Detail
Brand Name :
trusTec
Model Number :
YDK160-245-4A3-DNW
Certification :
CE、UL529388
Place of Origin :
Changzhou, China
MOQ :
200 pcs
Price :
Negotiable (FOB/CNF/CIF)
Contact Supplier
Evaporative Air Cooler Motor YDK160-245-4A3- 1/3HP/1/9HP 1425/1725/940/1140RPM 220/230V 50/60HZ
Evaporative Air Cooler Motor YDK160-245-4A3- 1/3HP/1/9HP 1425/1725/940/1140RPM 220/230V 50/60HZ
Evaporative Air Cooler Motor YDK160-245-4A3- 1/3HP/1/9HP 1425/1725/940/1140RPM 220/230V 50/60HZ
Evaporative Air Cooler Motor YDK160-245-4A3- 1/3HP/1/9HP 1425/1725/940/1140RPM 220/230V 50/60HZ

Changzhou Trustec Company Limited

Verified Supplier
10 Years
jiangsu, changzhou
Since 2011
Business Type :
Manufacturer, Exporter
Main Products :
Commercial Exhaust Fan Motor, Air Conditioner Fan Motor, Synchronous Gear Motor
Total Annual :
5 million-10 million
Employee Number :
50~100
Certification Level :
Verified Supplier
