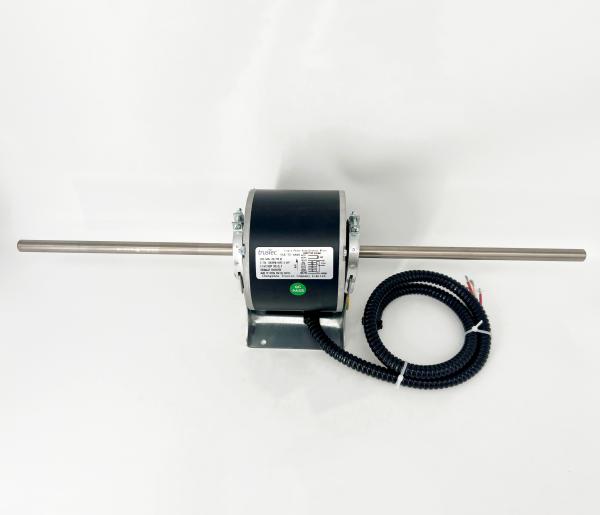

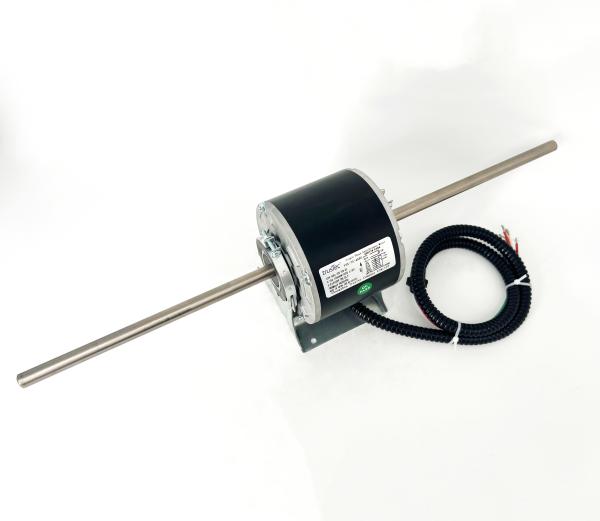

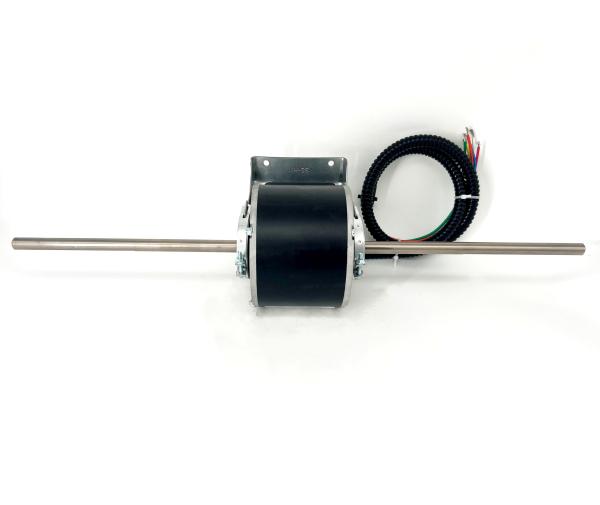

Fan Coil Motor YSK-75-4A60 - 75W 1280RPM6SPD 220V 60HZ
Fan Coil Motor YSK-75-4A60 - 75W 1280RPM6SPD 220V 60HZ
Fan Coil Motor YSK-75-4A60 - 75W 1280RPM6SPD 220V 60HZ
Fan Coil Motor YSK-75-4A60 - 75W 1280RPM6SPD 220V 60HZ
Fan Coil Motor YSK-75-4A60 - 75W 1280RPM6SPD 220V 60HZ
Fan Coil Motor YSK-75-4A60 - 75W 1280RPM6SPD 220V 60HZ
Specifications
Brand Name :
trusTec
Model Number :
YSK-75-4A60-EVT
Certification :
CE、UL529388
Place of Origin :
Changzhou, China
MOQ :
200 pcs
Price :
Negotiable (FOB/CNF/CIF)
Payment Terms :
T/T, L/C
Supply Ability :
100,000 pcs per month
Delivery Time :
15 days fresh products after order confirmation.
Packaging Details :
Standard carton packing, foam board inside for protection.
Product :
AC Fan Coil Unit Motor
Frame :
123mm
Motor Type :
Permanent Split Capacitor
Supply Voltage :
220V
Enclosure Type :
TEAO(Totally Enclosed Air Over)
Supply Frequency :
60Hz
Thermal Overload :
Equipped With An Automatic Thermal Overload
Current :
0.73A
Phase :
Single Phase
Output HP :
75W
Shaft Flat :
One Flat
Speed :
1280RPM/6SPD
Mounting Orientation :
All Angle
Capacitor :
5uF/450V
Insulation Class :
Class F
Pole :
4P
Bearings :
Ball Bearing
Shaft Diameter :
0.5"/12.7mm
PF :
0.9
Shaft Length :
8.86"/225mm*2
Rotation :
CW-LE
Flat Length :
4.72"/120mm*2
Max. Ambient Temperature :
70℃/158℉
Lead Length :
41.43"/1050mm
Motor Shell Length :
4.72"/120mm
Description
Send your message to this supplier
Send Now

Fan Coil Motor YSK-75-4A60 - 75W 1280RPM6SPD 220V 60HZ

Ask Latest Price
Watch Video
Product Detail
Brand Name :
trusTec
Model Number :
YSK-75-4A60-EVT
Certification :
CE、UL529388
Place of Origin :
Changzhou, China
MOQ :
200 pcs
Price :
Negotiable (FOB/CNF/CIF)
Contact Supplier
video
Fan Coil Motor YSK-75-4A60 - 75W 1280RPM6SPD 220V 60HZ
Fan Coil Motor YSK-75-4A60 - 75W 1280RPM6SPD 220V 60HZ
Fan Coil Motor YSK-75-4A60 - 75W 1280RPM6SPD 220V 60HZ

Changzhou Trustec Company Limited

Verified Supplier
10 Years
jiangsu, changzhou
Since 2011
Business Type :
Manufacturer, Exporter
Main Products :
Commercial Exhaust Fan Motor, Air Conditioner Fan Motor, Synchronous Gear Motor
Total Annual :
5 million-10 million
Employee Number :
50~100
Certification Level :
Verified Supplier
