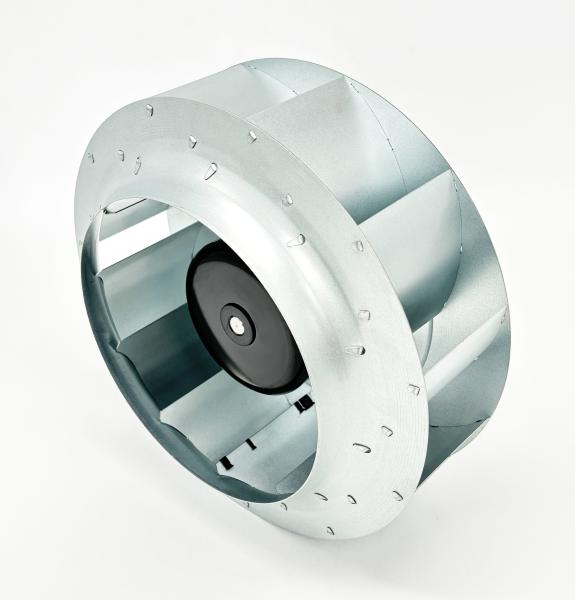

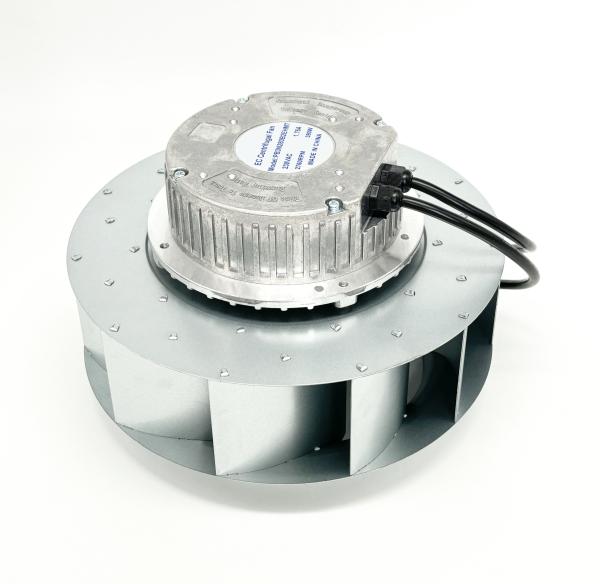

EC Centrifugal Fan - 390W 2760RPM 230V 50/60Hz Control input 0~10VDC / PWM
EC Centrifugal Fan - 390W 2760RPM 230V 50/60Hz Control input 0~10VDC / PWM
EC Centrifugal Fan - 390W 2760RPM 230V 50/60Hz Control input 0~10VDC / PWM
EC Centrifugal Fan - 390W 2760RPM 230V 50/60Hz Control input 0~10VDC / PWM
EC Centrifugal Fan - 390W 2760RPM 230V 50/60Hz Control input 0~10VDC / PWM
EC Centrifugal Fan - 390W 2760RPM 230V 50/60Hz Control input 0~10VDC / PWM
Specifications
Brand Name :
trusTec
Model Number :
PB3N280B2EHMT
Certification :
CE
Place of Origin :
Changzhou, China
MOQ :
200 pcs
Price :
Negotiable (FOB/CNF/CIF)
Payment Terms :
T/T, L/C
Supply Ability :
100,000 pcs per month
Delivery Time :
15 days fresh products after order confirmation.
Packaging Details :
Standard carton packing, foam board inside for protection.
Product :
EC Centrifugal Fan
Supply Voltage :
230V
Thermal Overload :
Equipped With An Automatic Thermal Overload
Supply Frequency :
50/60HZ
Mounting :
Stud Mounting All Angel
Input Current :
1.75A
Bearings :
NMB ball bearing
Air Flow :
1649CFM /2800m3/H
Mounting Orientation :
All Angle
Input Power :
390W
Insulation Class :
Class B
Speed :
2760RPM
Rotation :
CW
Dimension :
Ø281mm X 176mm
Signal Output :
FG (Frequency Generator)
Operating Temperature :
-25℃ to 60℃
Speed Control :
Control input 0~10VDC / PWM
Lead Length :
19.6" / 500mm
Number of Blades :
11
Weight :
5000g
