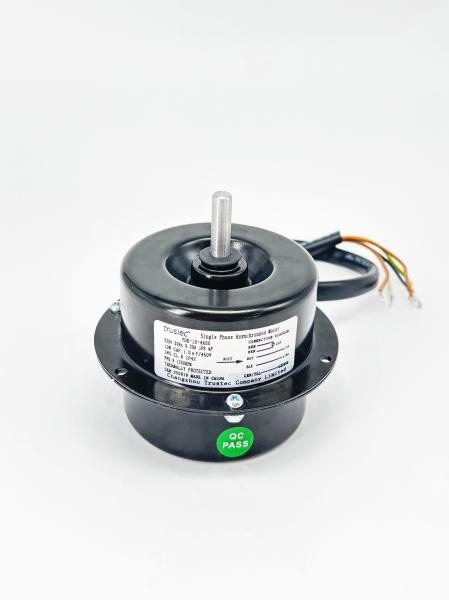

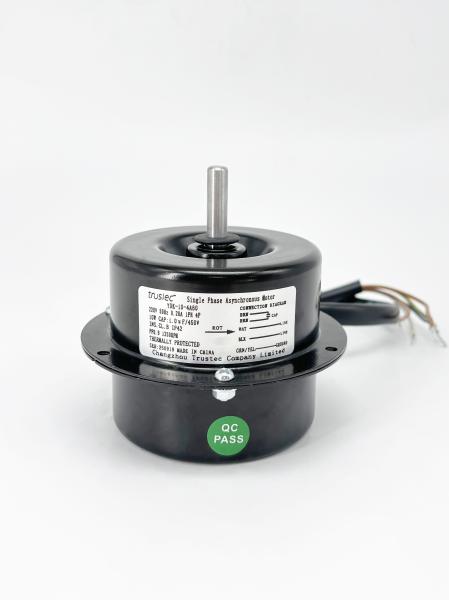

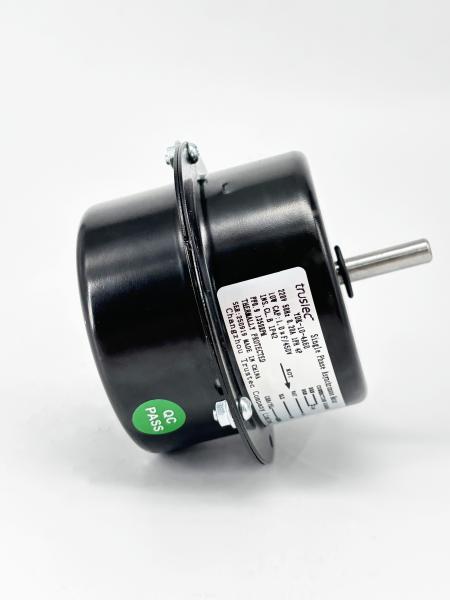

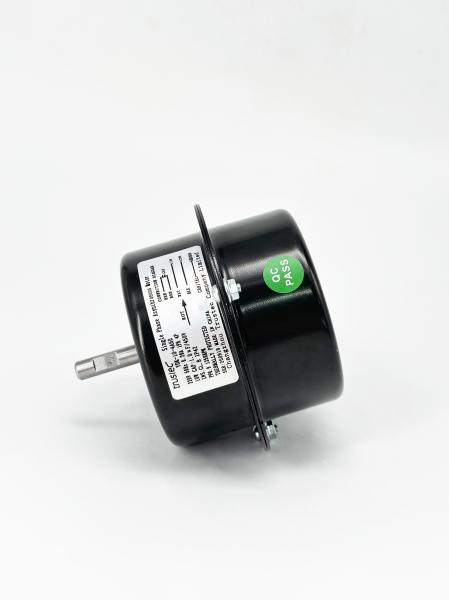

Outdoor Fan Motor YDK-10-4A60-10W 1350RPM 220V 50HZ with 104mm Frame and 8mm Shaft Diameter
Outdoor Fan Motor YDK-10-4A60-10W 1350RPM 220V 50HZ with 104mm Frame and 8mm Shaft Diameter
Outdoor Fan Motor YDK-10-4A60-10W 1350RPM 220V 50HZ with 104mm Frame and 8mm Shaft Diameter
Outdoor Fan Motor YDK-10-4A60-10W 1350RPM 220V 50HZ with 104mm Frame and 8mm Shaft Diameter
Outdoor Fan Motor YDK-10-4A60-10W 1350RPM 220V 50HZ with 104mm Frame and 8mm Shaft Diameter
Outdoor Fan Motor YDK-10-4A60-10W 1350RPM 220V 50HZ with 104mm Frame and 8mm Shaft Diameter
Outdoor Fan Motor YDK-10-4A60-10W 1350RPM 220V 50HZ with 104mm Frame and 8mm Shaft Diameter
Outdoor Fan Motor YDK-10-4A60-10W 1350RPM 220V 50HZ with 104mm Frame and 8mm Shaft Diameter
Specifications
Brand Name :
trusTec
Model Number :
YDK-10-4A60-ALB
Certification :
CE、UL529388
Place of Origin :
Changzhou, China
MOQ :
200 pcs
Price :
Negotiable (FOB/CNF/CIF)
Payment Terms :
T/T, L/C
Supply Ability :
100,000 pcs per month
Delivery Time :
15 days fresh products after order confirmation.
Packaging Details :
Standard carton packing, foam board inside for protection.
Product :
Outdoor Fan Motor
Frame :
104mm
Motor Type :
Permanent Split Capacitor
Supply Voltage :
220V
Enclosure Type :
TEAO(Totally Enclosed Air Over)
Supply Frequency :
50Hz
Thermal Overload :
Equipped With An Automatic Thermal Overload
Current :
0.2A
Phase :
Single Phase
Output HP :
10W
Shaft Flat :
One Flat
Speed :
1350RPM
Mounting Orientation :
All Angle
Capacitor :
1.0μF/450V
Insulation Class :
Class B
Pole :
4P
Rotation :
CCW-SE
PF :
0.9
Bearings :
Ball Bearing
Max. Ambient Temperature :
40℃/104℉
Motor Shell Length :
72mm/ 2.83"
Shaft Length :
30mm/1.18"
Flat Length :
10mm/0.39"
Lead Length :
500mm/19.69"
Shaft Diameter :
8mm/0.31"
Description
