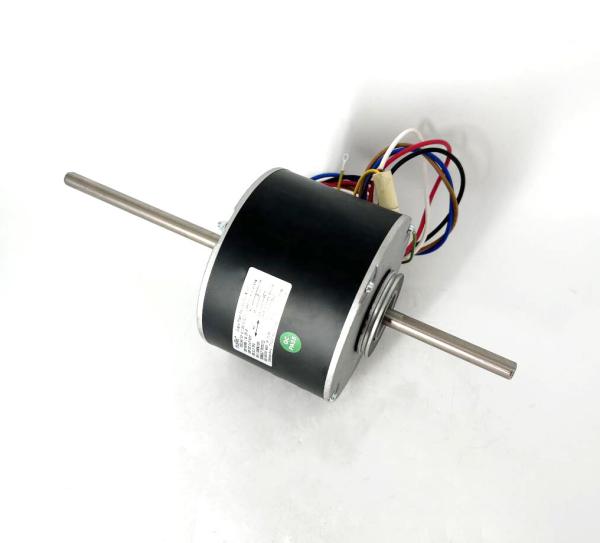

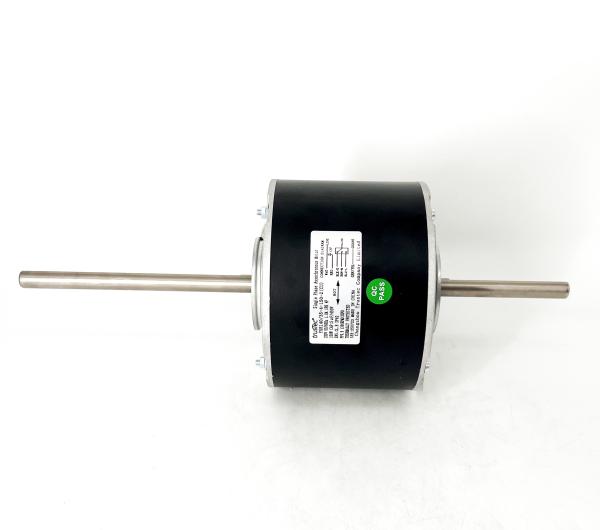

Fan Coil Motor YSK140/35-4-150-2 - 150W 1300RPM/3SPD 230V 50/60HZ
Fan Coil Motor YSK140/35-4-150-2 - 150W 1300RPM/3SPD 230V 50/60HZ
Fan Coil Motor YSK140/35-4-150-2 - 150W 1300RPM/3SPD 230V 50/60HZ
Fan Coil Motor YSK140/35-4-150-2 - 150W 1300RPM/3SPD 230V 50/60HZ
Specifications
Brand Name :
trusTec
Model Number :
YSK140/35-4-150-2-SGR
Certification :
CE、UL529388
Place of Origin :
Changzhou, China
MOQ :
200 pcs
Price :
Negotiable (FOB/CNF/CIF)
Payment Terms :
T/T, L/C
Supply Ability :
100,000 pcs per month
Delivery Time :
15 days fresh products after order confirmation.
Packaging Details :
Standard carton packing, foam board inside for protection.
Product :
AC Fan Coil Unit Motor
Frame :
142mm
Motor Type :
Permanent Split Capacitor
Supply Voltage :
230V
Enclosure Type :
TEAO(Totally Enclosed Air Over)
Supply Frequency :
50/60Hz
Thermal Overload :
Equipped With An Automatic Thermal Overload
Current :
1.0A
Phase :
Single Phase
Output HP :
150W
Shaft Flat :
One Flat
Speed :
1300RPM/3SPD
Mounting Orientation :
All Angle
Capacitor :
5uF/450V
Insulation Class :
Class B
Pole :
4P
Bearings :
Ball Bearing
Shaft Diameter :
0.47"/12mm
Rotation :
Reversible
PF :
0.9
Shaft Length :
14.69"/373mm
Flat Length :
3.15"/80mm、6.30"/160mm
Max. Ambient Temperature :
40℃/104℉
Lead Length :
7.87"/200mm
Motor Shell Length :
4.02"/102mm
Screw Length :
0.79"/20mm
Description
