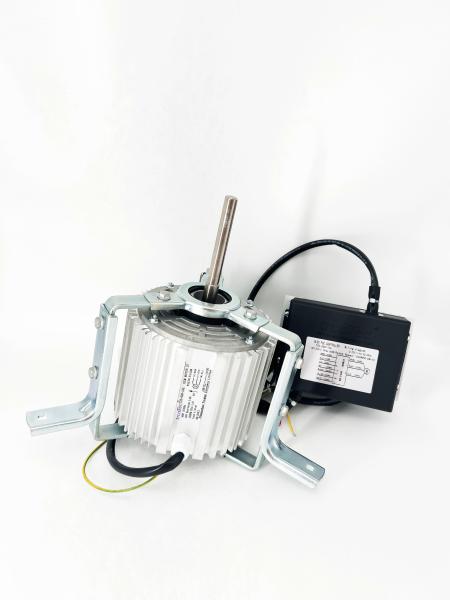

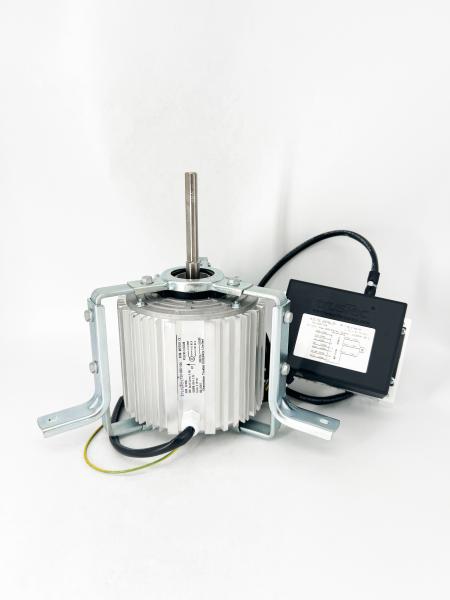

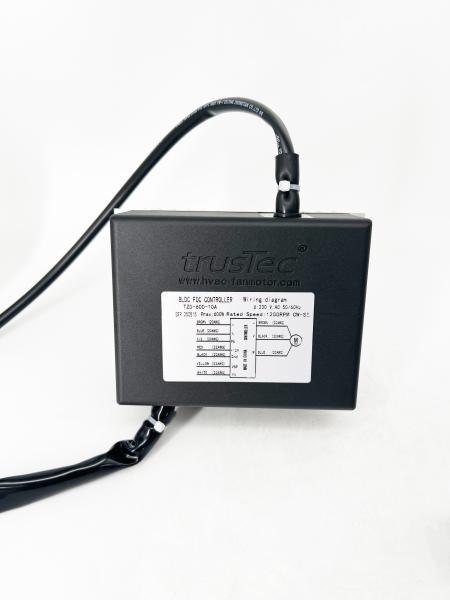

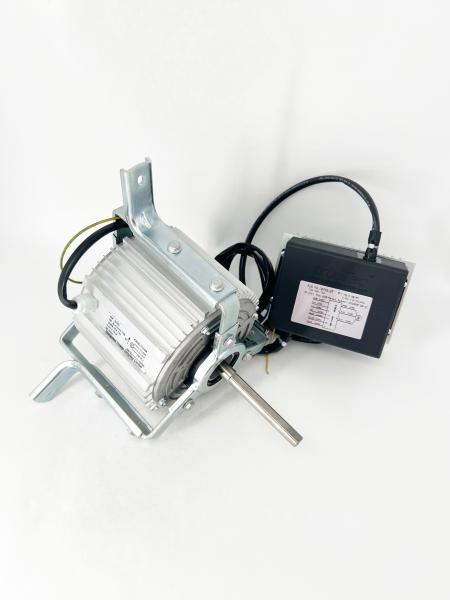

ECM Fan Motor For Air Conditioner-TZD-600-10A 600W 1200RPM 230V 50/60HZ
ECM Fan Motor For Air Conditioner-TZD-600-10A 600W 1200RPM 230V 50/60HZ
ECM Fan Motor For Air Conditioner-TZD-600-10A 600W 1200RPM 230V 50/60HZ
ECM Fan Motor For Air Conditioner-TZD-600-10A 600W 1200RPM 230V 50/60HZ
ECM Fan Motor For Air Conditioner-TZD-600-10A 600W 1200RPM 230V 50/60HZ
ECM Fan Motor For Air Conditioner-TZD-600-10A 600W 1200RPM 230V 50/60HZ
ECM Fan Motor For Air Conditioner-TZD-600-10A 600W 1200RPM 230V 50/60HZ
ECM Fan Motor For Air Conditioner-TZD-600-10A 600W 1200RPM 230V 50/60HZ
Specifications
Brand Name :
trusTec
Model Number :
TZD-600-10A-TVM
Certification :
CE
Place of Origin :
Changzhou, China
MOQ :
200 pcs
Price :
Negotiable (FOB/CNF/CIF)
Payment Terms :
T/T, L/C
Supply Ability :
100,000 pcs per month
Delivery Time :
15 days fresh products after order confirmation.
Packaging Details :
Standard carton packing, foam board inside for protection.
Product :
ECM Fan Motor
Frame :
150.5mm
Enclosure Type :
TEAO(Totally Enclosed Air Over)
Supply Voltage :
230V
Thermal Overload :
Equipped With An Automatic Thermal Overload
Supply Frequency :
50/60HZ
Phase :
Single Phase
Current :
5.06A
Mounting :
Bracket
Output Power :
600W
Bearings :
Ball Bearing
Speed :
1200RPM
Mounting Orientation :
All Angle
Poles :
10P
Insulation Class :
Class B
Shaft Length :
101mm/3.98"
Rotation :
CW-SE
Max. Ambient Temperature :
40℃/104℉
Shaft Diameter :
12.7mm/0.5"
Lead Length :
700mm/27.56"
Motor Shell Length :
170mm/6.7"
Flat Length :
90mm/3.54"
