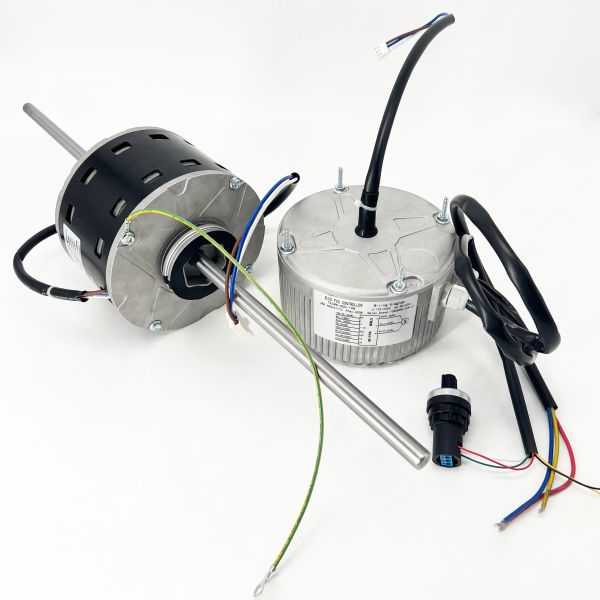

48 Frame ECM Motor - 600W 208~230V 200~1300 - Rated 1050RPM 85.8% IE4 Motor
48 Frame ECM Motor - 600W 208~230V 200~1300 - Rated 1050RPM 85.8% IE4 Motor
48 Frame ECM Motor - 600W 208~230V 200~1300 - Rated 1050RPM 85.8% IE4 Motor
48 Frame ECM Motor - 600W 208~230V 200~1300 - Rated 1050RPM 85.8% IE4 Motor
48 Frame ECM Motor - 600W 208~230V 200~1300 - Rated 1050RPM 85.8% IE4 Motor
48 Frame ECM Motor - 600W 208~230V 200~1300 - Rated 1050RPM 85.8% IE4 Motor
Specifications
Brand Name :
trusTec
Model Number :
TECMS-600-10B-ARN
Certification :
CE
Place of Origin :
Changzhou, China
MOQ :
200 pcs
Price :
Negotiable (FOB/CNF/CIF)
Payment Terms :
T/T, L/C
Supply Ability :
100,000 pcs per month
Delivery Time :
15 days fresh products after order confirmation.
Packaging Details :
Standard carton packing, foam board inside for protection.
Motor Type :
ECM Fan Motor
Frame :
48 frame
Enclosure Type :
OAO(Open Air Over)
Supply Voltage :
120/240V
Thermal Overload :
Equipped With An Automatic Thermal Overload
Supply Frequency :
50/60HZ
Current :
6.8A
Mounting :
Bracket
Output Power :
600W 4/5HP
Bearings :
Ball Bearing
Speed :
200~1300RPM
Efficiency :
Rated 1050RPM IE5 85.8%
Mounting Orientation :
All Angle
Poles :
10P
Insulation Class :
Class F
Max. Ambient Temperature :
70℃/158℉
Control Mode :
VSP 2~9V
Flat Length :
153mm/6.02" *2
Rotation :
CCW-LE
Shaft Length :
223.5mm/8.80" *2
Shaft Diameter :
12.7mm/0.5"
Motor Shell Length :
124mm/4.88"
