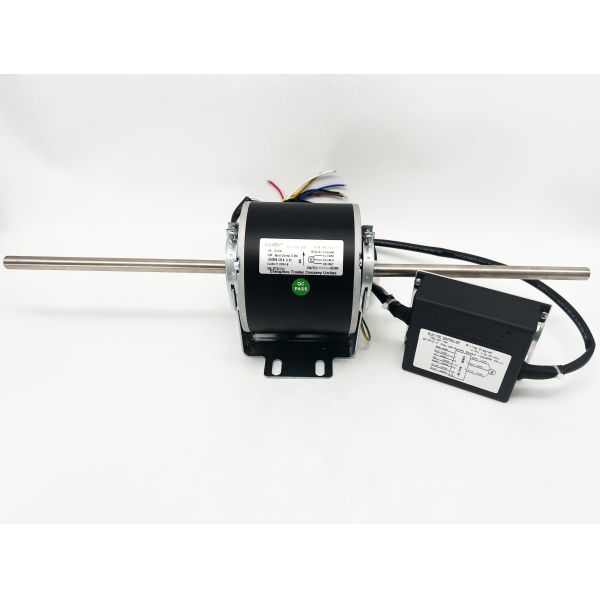

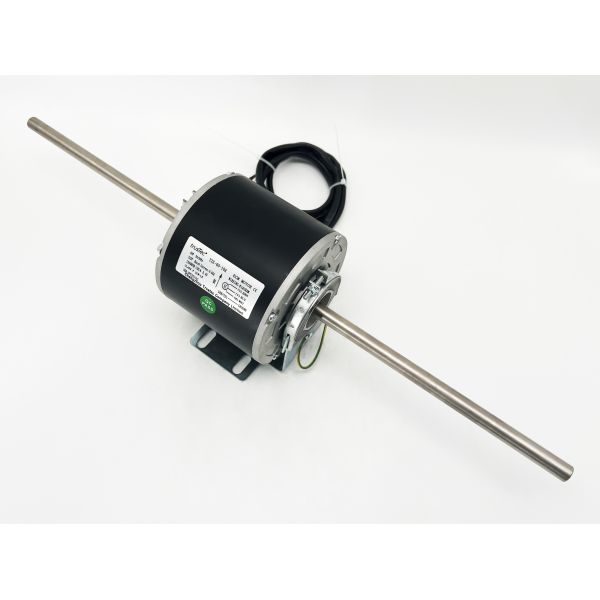

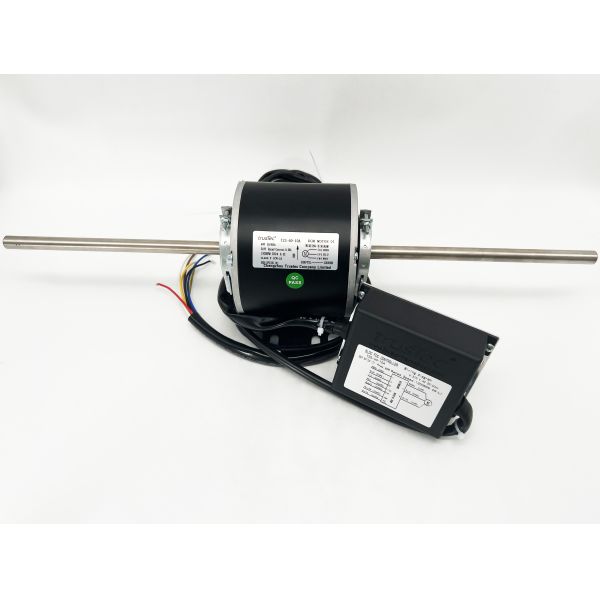

EC 42 frame - FCU Fan Coil Unit Motor TZS-60-10A - Air Conditioner BLDC motor 60W 1300RPM 310V 50/60HZ - 48 Frame and 1/2 Shaft
EC 42 frame - FCU Fan Coil Unit Motor TZS-60-10A - Air Conditioner BLDC motor 60W 1300RPM 310V 50/60HZ - 48 Frame and 1/2 Shaft
EC 42 frame - FCU Fan Coil Unit Motor TZS-60-10A - Air Conditioner BLDC motor 60W 1300RPM 310V 50/60HZ - 48 Frame and 1/2 Shaft
EC 42 frame - FCU Fan Coil Unit Motor TZS-60-10A - Air Conditioner BLDC motor 60W 1300RPM 310V 50/60HZ - 48 Frame and 1/2 Shaft
EC 42 frame - FCU Fan Coil Unit Motor TZS-60-10A - Air Conditioner BLDC motor 60W 1300RPM 310V 50/60HZ - 48 Frame and 1/2 Shaft
EC 42 frame - FCU Fan Coil Unit Motor TZS-60-10A - Air Conditioner BLDC motor 60W 1300RPM 310V 50/60HZ - 48 Frame and 1/2 Shaft
EC 42 frame - FCU Fan Coil Unit Motor TZS-60-10A - Air Conditioner BLDC motor 60W 1300RPM 310V 50/60HZ - 48 Frame and 1/2 Shaft
EC 42 frame - FCU Fan Coil Unit Motor TZS-60-10A - Air Conditioner BLDC motor 60W 1300RPM 310V 50/60HZ - 48 Frame and 1/2 Shaft
Specifications
Brand Name :
trusTec
Model Number :
TZS-60-10A-SPT
Certification :
CE
Place of Origin :
Changzhou, China
MOQ :
200 pcs
Price :
Negotiable (FOB/CNF/CIF)
Payment Terms :
T/T, L/C
Supply Ability :
100,000 pcs per month
Delivery Time :
15 days fresh products after order confirmation.
Packaging Details :
Standard carton packing, foam board inside for protection.
Product :
EC Fan coil unit motor
Frame :
42 frame
Enclosure Type :
TEAO(Totally Enclosed Air Over)
Supply Voltage :
310V
Thermal Overload :
Equipped With An Automatic Thermal Overload
Supply Frequency :
50/60HZ
Phase :
Single Phase
Current :
0.66A
Mounting :
Bracket
Output Power :
60W
Bearings :
Ball Bearing
Speed :
1300RPM
Mounting Orientation :
All Angle
Poles :
10P
Insulation Class :
Class F
Max. Ambient Temperature :
70℃/158℉
Control Mode :
VSP(2-9V)
Flat Length :
75mm/2.95"*2
Rotation :
CCW(LE)
Shaft Length :
209.6mm/8.25"*2
Shaft Diameter :
12.7mm/0.5"
Lead Length :
1300mm/51.18"
Motor Shell Length :
130.8mm/5.15"
Description
Send your message to this supplier
Send Now

EC 42 frame - FCU Fan Coil Unit Motor TZS-60-10A - Air Conditioner BLDC motor 60W 1300RPM 310V 50/60HZ - 48 Frame and 1/2" Shaft

Ask Latest Price
Watch Video
Product Detail
Brand Name :
trusTec
Model Number :
TZS-60-10A-SPT
Certification :
CE
Place of Origin :
Changzhou, China
MOQ :
200 pcs
Price :
Negotiable (FOB/CNF/CIF)
Contact Supplier
video
EC 42 frame - FCU Fan Coil Unit Motor TZS-60-10A - Air Conditioner BLDC motor 60W 1300RPM 310V 50/60HZ - 48 Frame and 1/2 Shaft
EC 42 frame - FCU Fan Coil Unit Motor TZS-60-10A - Air Conditioner BLDC motor 60W 1300RPM 310V 50/60HZ - 48 Frame and 1/2 Shaft
EC 42 frame - FCU Fan Coil Unit Motor TZS-60-10A - Air Conditioner BLDC motor 60W 1300RPM 310V 50/60HZ - 48 Frame and 1/2 Shaft
EC 42 frame - FCU Fan Coil Unit Motor TZS-60-10A - Air Conditioner BLDC motor 60W 1300RPM 310V 50/60HZ - 48 Frame and 1/2 Shaft

Changzhou Trustec Company Limited

Verified Supplier
10 Years
jiangsu, changzhou
Since 2011
Business Type :
Manufacturer, Exporter
Main Products :
Commercial Exhaust Fan Motor, Air Conditioner Fan Motor, Synchronous Gear Motor
Total Annual :
5 million-10 million
Employee Number :
50~100
Certification Level :
Verified Supplier
