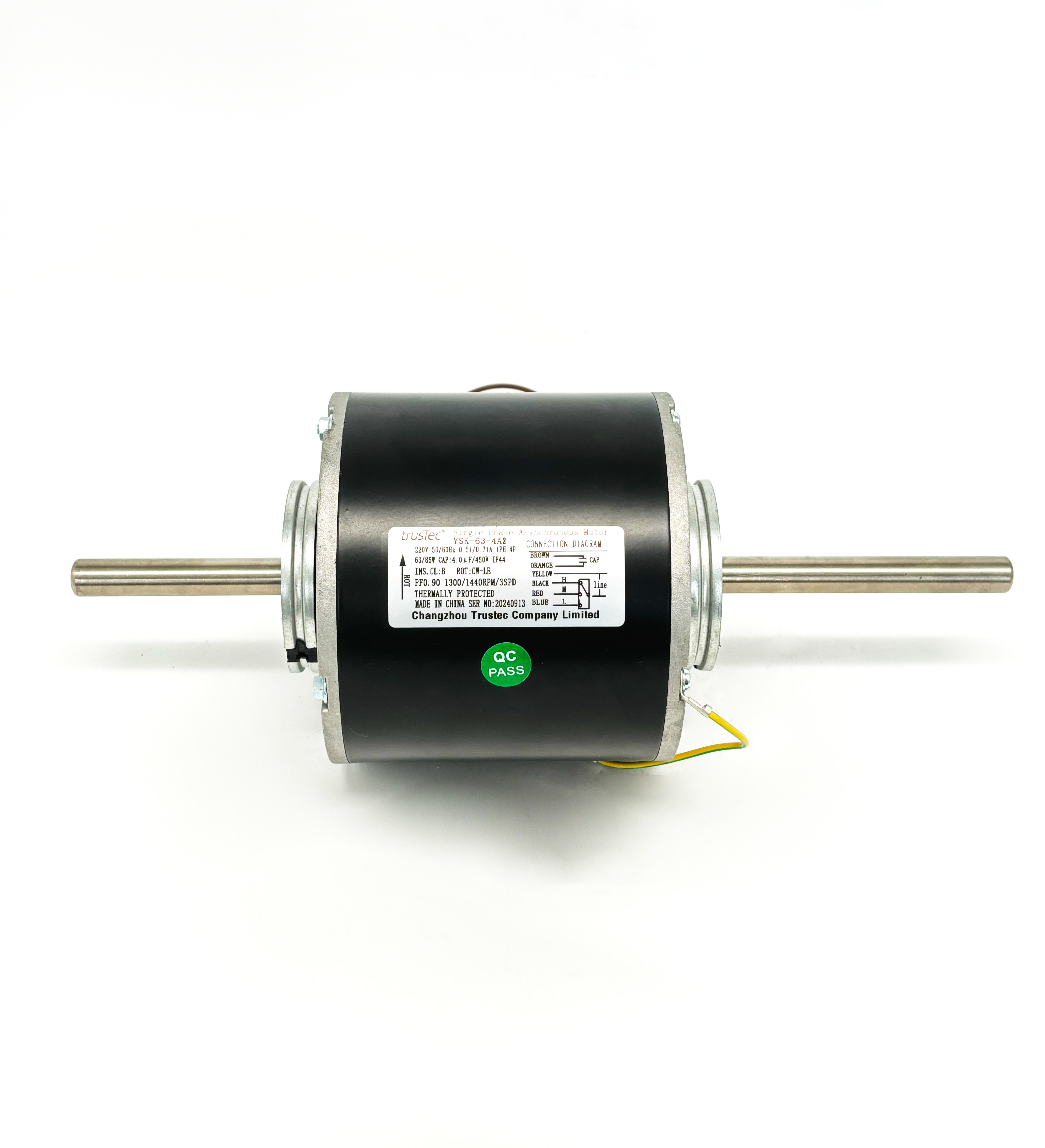

42 Frame Fan Coil Unit Motor - 63/85W 220V 50/60HZ 1300/1440RPM/3SPD
42 Frame Fan Coil Unit Motor - 63/85W 220V 50/60HZ 1300/1440RPM/3SPD
42 Frame Fan Coil Unit Motor - 63/85W 220V 50/60HZ 1300/1440RPM/3SPD
42 Frame Fan Coil Unit Motor - 63/85W 220V 50/60HZ 1300/1440RPM/3SPD
42 Frame Fan Coil Unit Motor - 63/85W 220V 50/60HZ 1300/1440RPM/3SPD
42 Frame Fan Coil Unit Motor - 63/85W 220V 50/60HZ 1300/1440RPM/3SPD
42 Frame Fan Coil Unit Motor - 63/85W 220V 50/60HZ 1300/1440RPM/3SPD
42 Frame Fan Coil Unit Motor - 63/85W 220V 50/60HZ 1300/1440RPM/3SPD
Specifications
Supply Ability :
100,000 pcs per month
Product :
AC Fan Coil Unit Motor
Rotation :
CW-LE
Speed :
1300/1440RPM/3SPD
Mounting Orientation :
All Angle
Model Number :
YSK-63-4A2-KCP
Thermal Overload :
Equipped With An Automatic Thermal Overload
Capacitor :
4uF/450V
Flat Length :
58mm/2.28"、61.5mm/2.42"
Price :
Negotiable (FOB/CNF/CIF)
Motor Type :
Permanent Split Capacitor
Supply Voltage :
220V
Pole :
4P
Motor Shell Length :
110mm/4.33"
MOQ :
200 pcs
Delivery Time :
15 days fresh products after order confirmation.
Supply Frequency :
50/60HZ
Insulation Class :
Class B
Max. Ambient Temperature :
40℃/104℉
Payment Terms :
T/T, L/C
Frame :
42 frame
Enclosure Type :
TEAO(Totally Enclosed Air Over)
PF :
0.90
Phase :
Single Phase
Shaft Diameter :
0.5"/12.7mm
Certification :
CE、UL529388
Bearings :
Ball Bearing
Packaging Details :
Standard carton packing, foam board inside for protection.
Shaft Flat :
One Flat
Shaft Length :
312mm/12.28"
Place of Origin :
Changzhou, China
Output HP :
63/85W
Brand Name :
trusTec
Current :
0.51/0.71A
