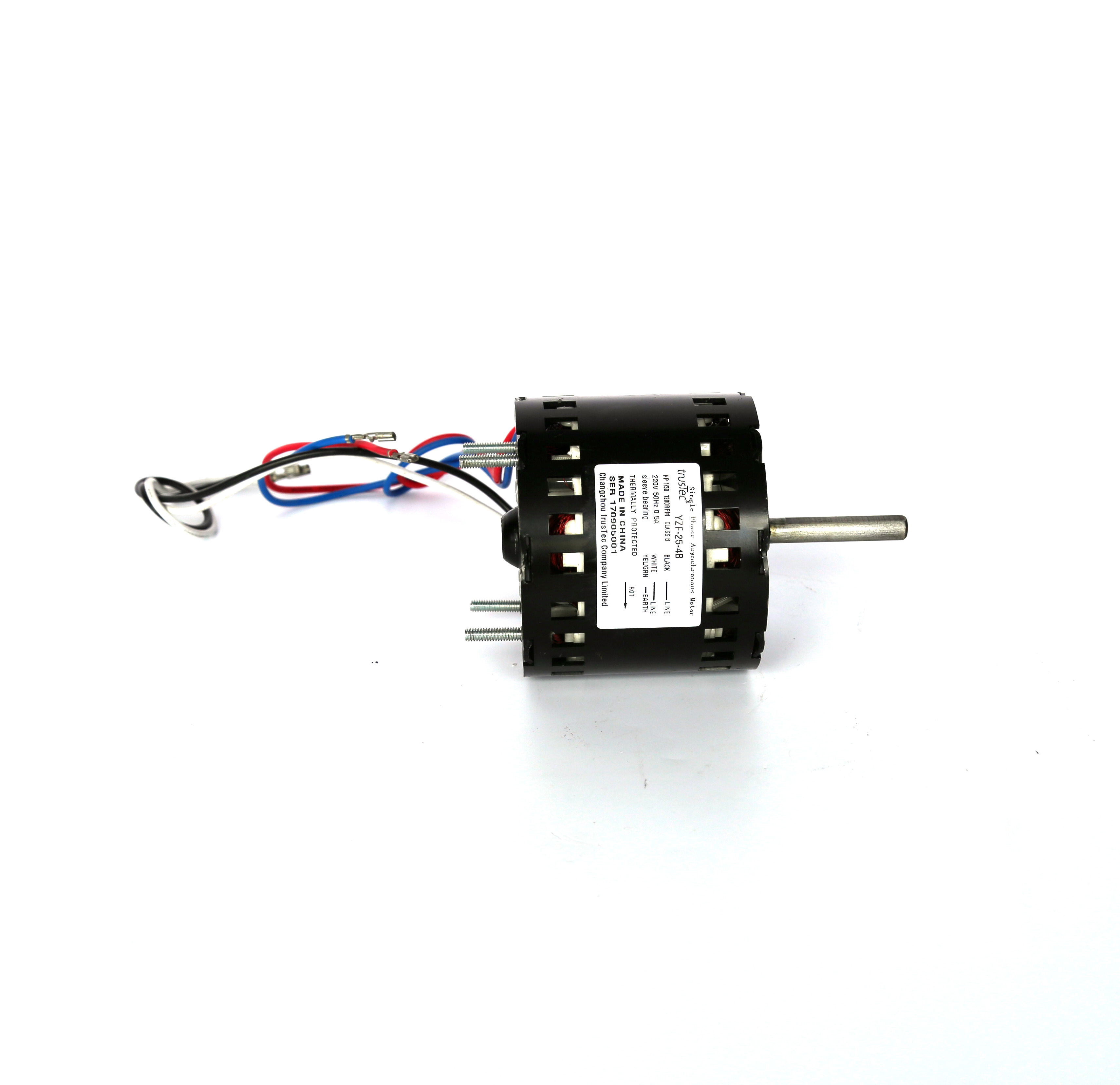

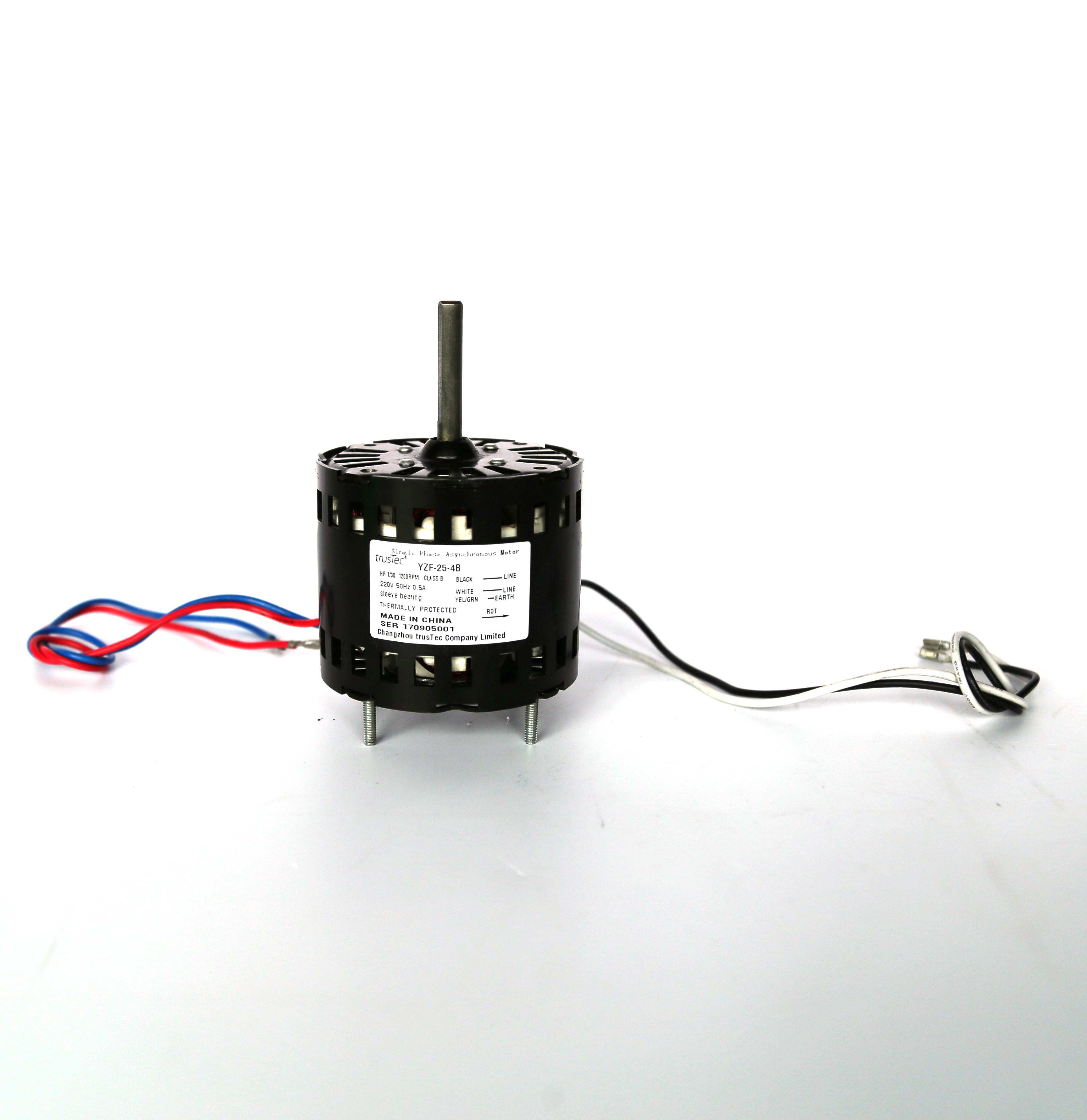

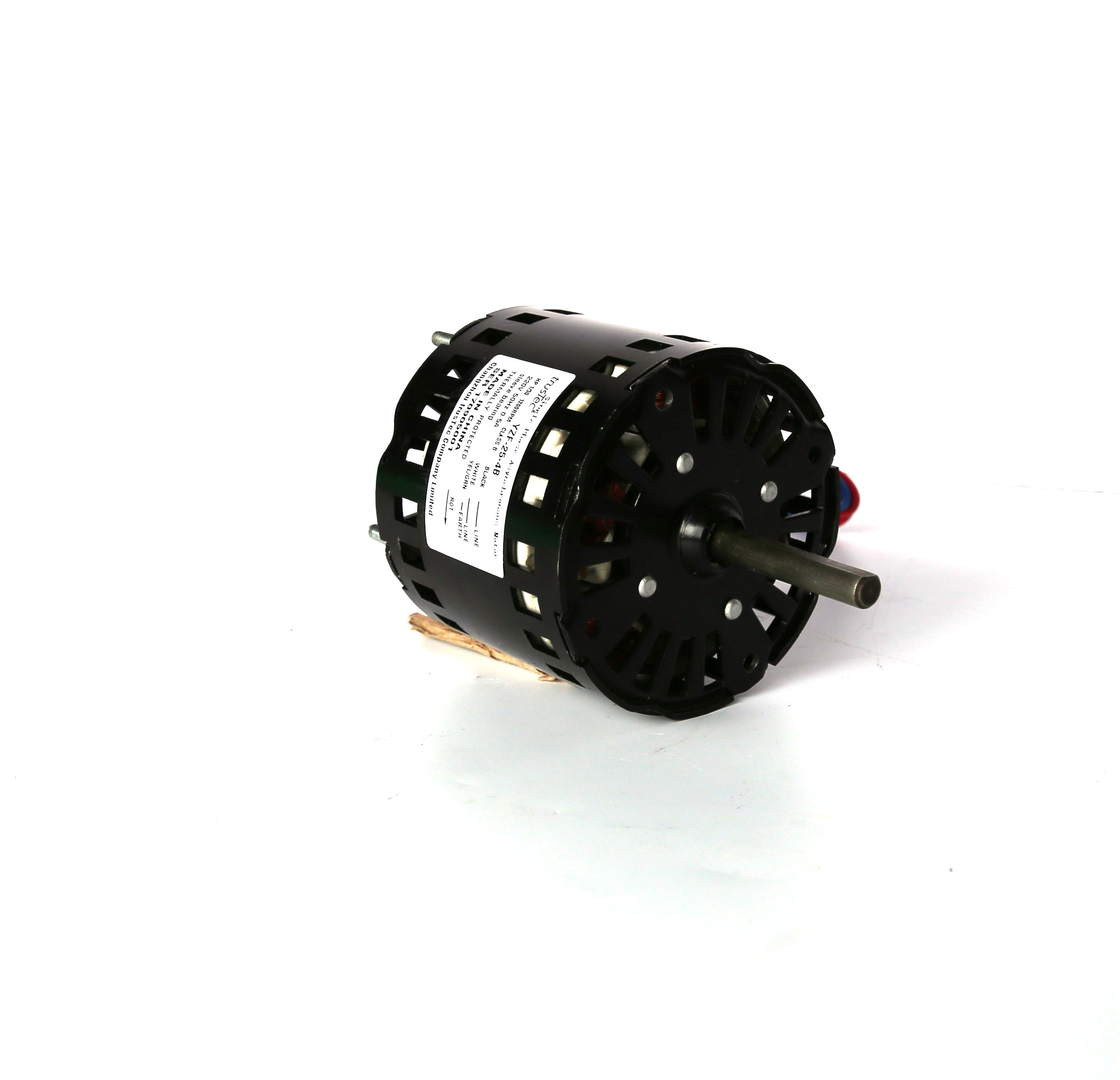

Broan Compatible Ceiling Exhaust Fan Motor 3.3 Inch Sleeve Bearing 1200RPM Bathroom Vent Replacement
Broan Compatible Ceiling Exhaust Fan Motor 3.3 Inch Sleeve Bearing 1200RPM Bathroom Vent Replacement
Broan Compatible Ceiling Exhaust Fan Motor 3.3 Inch Sleeve Bearing 1200RPM Bathroom Vent Replacement
Broan Compatible Ceiling Exhaust Fan Motor 3.3 Inch Sleeve Bearing 1200RPM Bathroom Vent Replacement
Broan Compatible Ceiling Exhaust Fan Motor 3.3 Inch Sleeve Bearing 1200RPM Bathroom Vent Replacement
Broan Compatible Ceiling Exhaust Fan Motor 3.3 Inch Sleeve Bearing 1200RPM Bathroom Vent Replacement
Specifications
Brand Name :
trusTec
Bearing Type :
Sleeve Bearing
Packaging Details :
Plain white box or custom branded box, export-grade master carton
Shaft Material :
Carbon Steel with Nickel Plating
Motor Type :
Shaded Pole Motor
Certification :
UL, CE, RoHS
Insulation Class :
Class B
Power :
25W 1/30HP
Speed :
1200RPM
Mounting :
Two-Stud Bracket Mount
Place of Origin :
Jiangsu, China
Payment Terms :
T/T, L/C, PayPal
MOQ :
200 Pieces
Delivery Time :
3 working days for stock, 8-15 days for production
Model Number :
YZF-25-4B
Price :
USD 4-9 / Piece
Compatibility :
Broan Ceiling Exhaust Fan Models
Voltage :
220V/60Hz
Supply Ability :
50000 Pieces per Month
Frame Size :
3.3 Inch Diameter
Description
Broan Compatible Ceiling Exhaust Fan Motor

The SP80-25-4S is a direct replacement motor for Broan ceiling exhaust fan models, featuring the standard 3.3-inch frame diameter and two-stud bracket mounting. This shaded pole motor delivers 25W at 1200RPM with 120V/60Hz input for North American residential applications. The sleeve bearing design provides quiet, cost-effective operation ideal for bathroom ventilation systems. Built to UL standards compliance, it meets North American safety requirements at an economical price point.

Technical Parameters
Model YZF-25-4B
Motor Type Shaded Pole Motor
Frame Size 3.3 Inch Diameter
Power 25W 1/30HP
Speed 1200RPM
Voltage 220V/60Hz
Bearing Type Sleeve Bearing
Insulation Class Class B
Shaft Material Carbon Steel with Nickel Plating
Mounting Two-Stud Bracket Mount
Certification UL Standards Compliant, CE, RoHS
Key Features
  • Standard 3.3-inch frame size fits all Broan ceiling exhaust fan housings
  • Two-stud bracket mount matches original Broan mounting configuration
  • Sleeve bearing design provides quiet operation with minimal vibration
  • Nickel-plated carbon steel shaft resists bathroom humidity corrosion
  • Economical replacement option at a fraction of OEM Broan pricing
  • Built to UL standards for North American market compliance
  • High-volume manufacturing ensures consistent quality and availability
Applications
  • Broan bathroom ceiling exhaust fan replacement
  • Residential bathroom ventilation
  • Apartment exhaust fan maintenance
  • Hotel bathroom fan replacement
  • Laundry room exhaust systems
