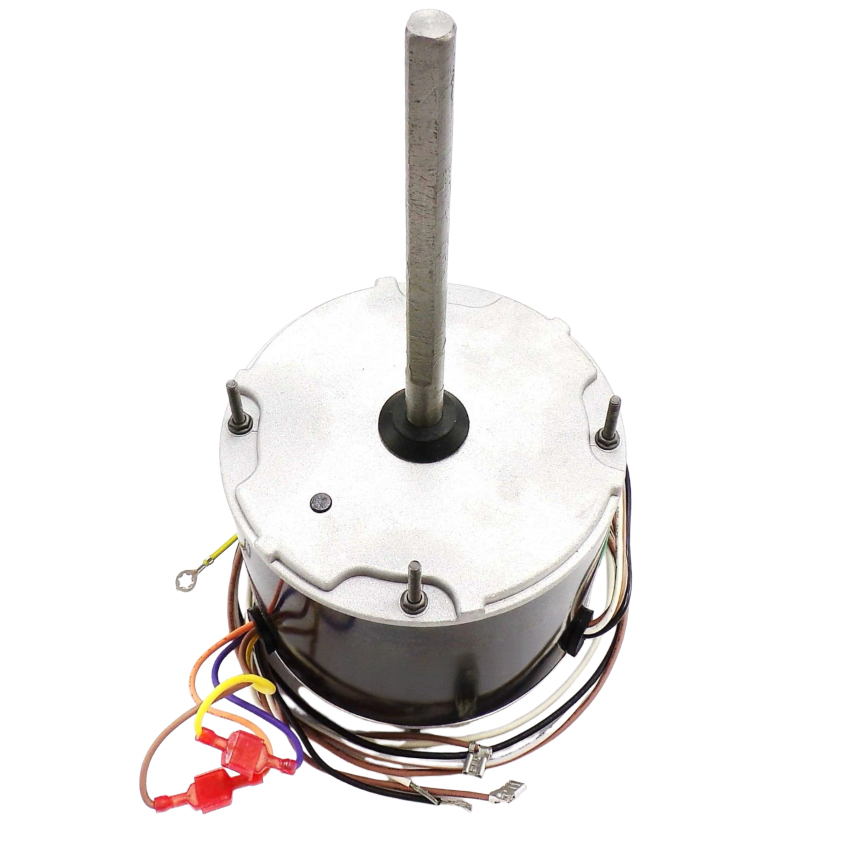

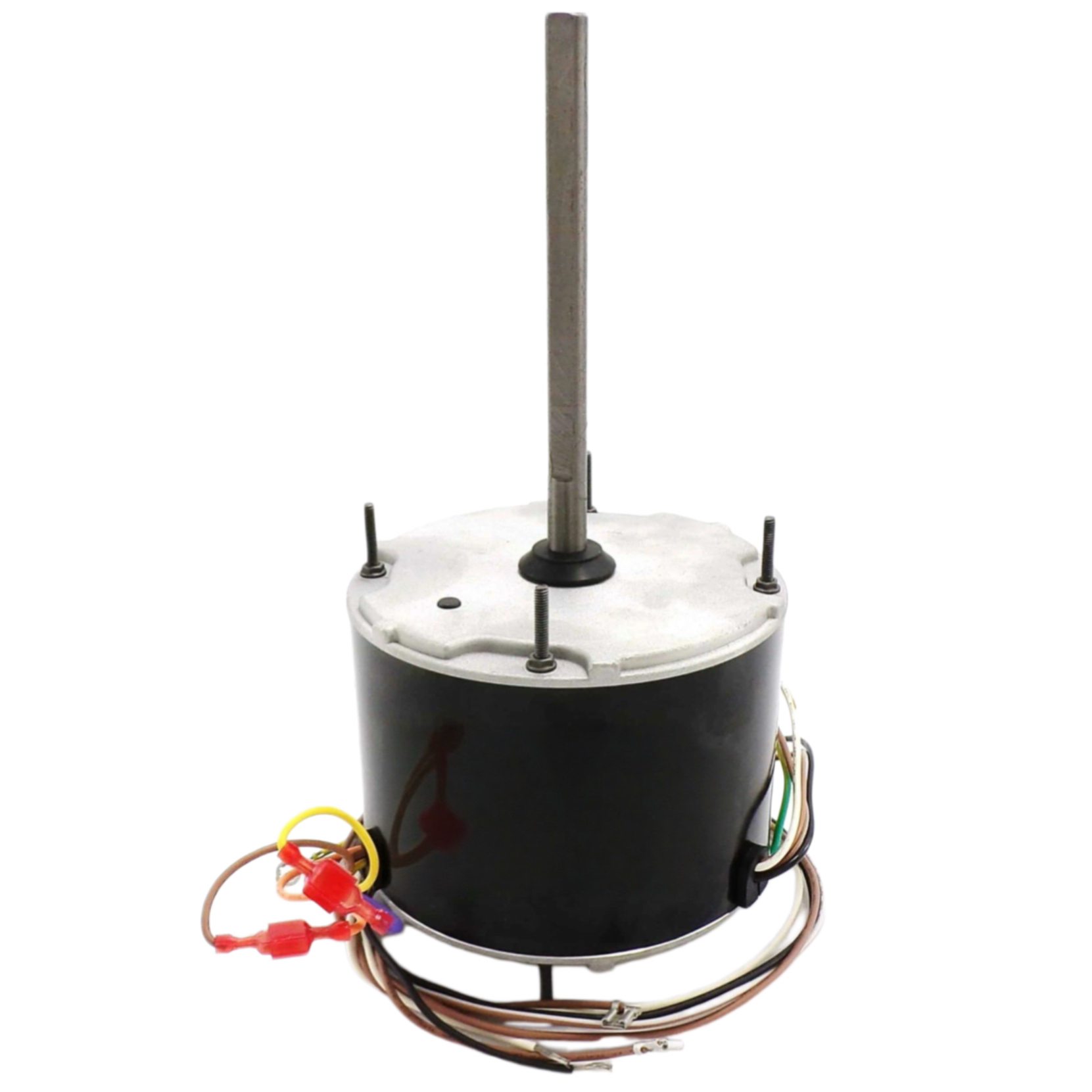

Fasco 5KCP Replacement Commercial Exhaust Fan Motor 1/4HP 208-230V Drop-in Kitchen Range Hood Retrofit
Fasco 5KCP Replacement Commercial Exhaust Fan Motor 1/4HP 208-230V Drop-in Kitchen Range Hood Retrofit
Fasco 5KCP Replacement Commercial Exhaust Fan Motor 1/4HP 208-230V Drop-in Kitchen Range Hood Retrofit
Fasco 5KCP Replacement Commercial Exhaust Fan Motor 1/4HP 208-230V Drop-in Kitchen Range Hood Retrofit
Fasco 5KCP Replacement Commercial Exhaust Fan Motor 1/4HP 208-230V Drop-in Kitchen Range Hood Retrofit
Fasco 5KCP Replacement Commercial Exhaust Fan Motor 1/4HP 208-230V Drop-in Kitchen Range Hood Retrofit
Specifications
Model Number :
5KCP39KG-1/4
Bearing Type :
Ball Bearing
Packaging Details :
Premium branded box with molded foam, export-grade carton
Place of Origin :
Jiangsu, China
Certification :
UL, CE, RoHS, ISO9001
MOQ :
10 Pieces
Payment Terms :
T/T, L/C, PayPal, Western Union
Power :
1/4HP (187W)
Shaft Type :
Double Flat Keyway Shaft
Compatible Model :
Fasco 5KCP39KG Series
Voltage :
208-230V / 60Hz
Mounting Type :
Vertical Bracket Mount
Capacitor :
5MDF/370VAC
Price :
USD 25-55 / Piece
Brand Name :
trusTec
Delivery Time :
3 working days for stock, 10-15 days for production
Motor Type :
PSC Capacitor Run Motor
Speed :
1075RPM
Supply Ability :
5000 Pieces per Month
Rotation :
Reversible CW/CCW
Description
Fasco 5KCP Replacement Exhaust Fan Motor

The 5KCP39KG-1/4 is a direct drop-in replacement for Fasco 5KCP series exhaust fan motors commonly used in kitchen range hoods and commercial ventilation. Delivering 1/4HP at 208-230V 60Hz with 1075RPM speed, this PSC capacitor-run motor matches the original Fasco mounting bracket dimensions for seamless retrofit installation. Built with ball bearings and reversible CW/CCW rotation for maximum installation flexibility.

Technical Parameters
Model 5KCP39KG-1/4
Motor Type PSC Capacitor Run Motor
Power 1/4HP (187W)
Voltage 208-230V / 60Hz
Speed 1075RPM
Mounting Type Vertical Bracket Mount
Compatible Series Fasco 5KCP39KG
Shaft Double Flat Keyway Shaft
Bearing Type Ball Bearing
Capacitor 5MDF/370VAC (Included)
Rotation Reversible CW/CCW
Key Features
  • Exact dimensional match for Fasco 5KCP39KG series - no modifications needed
  • Pre-drilled mounting holes match original bracket for true drop-in replacement
  • Double flat keyway shaft accepts standard OEM fan blades and pulleys
  • Reversible CW/CCW rotation via wire swap - flexible installation options
  • Includes matching 5MDF/370VAC capacitor for complete replacement kit
  • Ball bearing construction for extended service life under continuous operation
  • UL certified construction meets North American safety requirements
  • Significant cost savings versus OEM Fasco replacement parts
Applications
  • Kitchen range hood exhaust replacement
  • Commercial ventilation fan motors
  • Fasco 5KCP39KG series direct retrofit
  • Restaurant exhaust system maintenance
  • HVAC fan replacement applications
