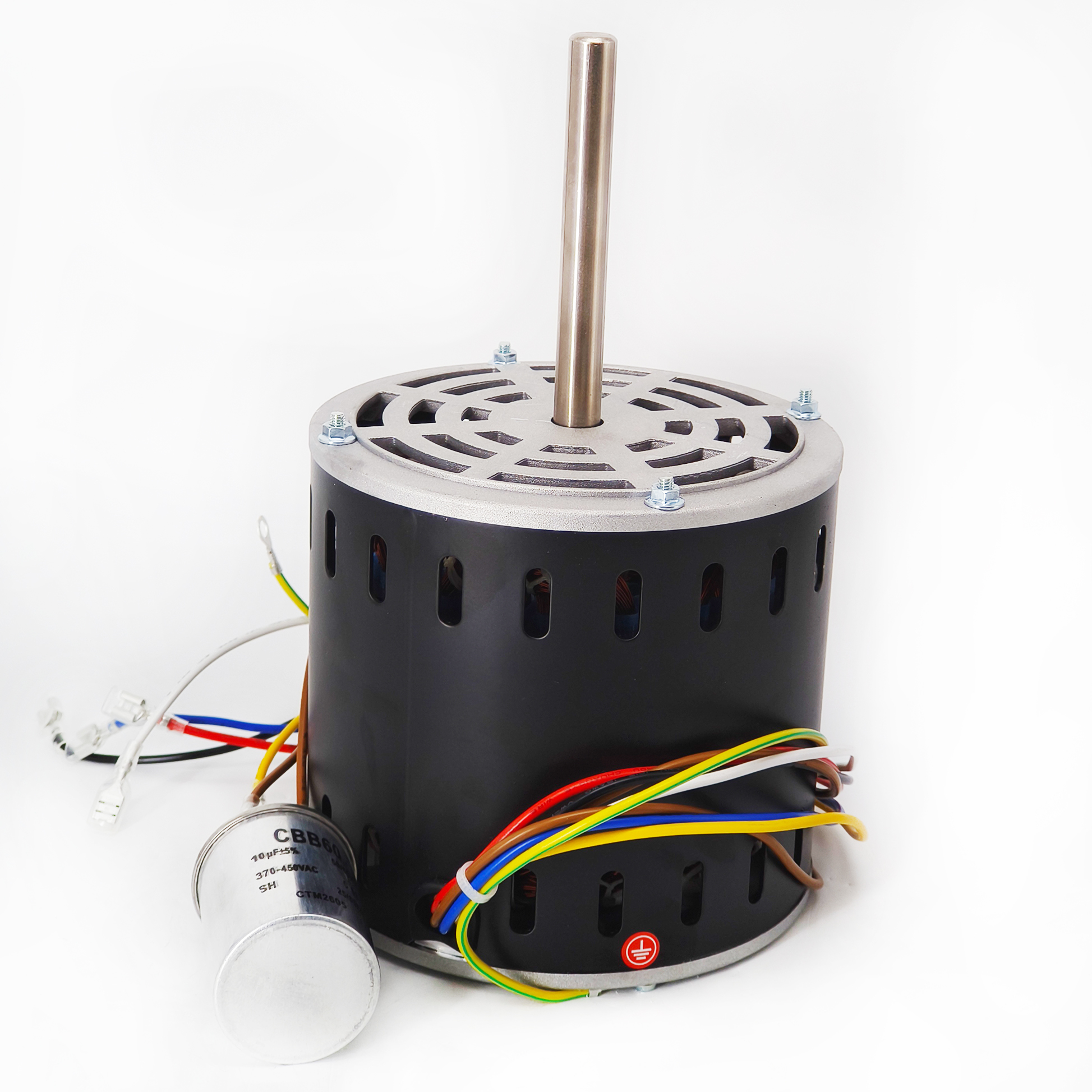

48 Frame Blower Motor - 1/2HP 1075RPM/4SPD 115V 60Hz - 5KCP39LGS093S Replacement Motor
48 Frame Blower Motor - 1/2HP 1075RPM/4SPD 115V 60Hz - 5KCP39LGS093S Replacement Motor
48 Frame Blower Motor - 1/2HP 1075RPM/4SPD 115V 60Hz - 5KCP39LGS093S Replacement Motor
48 Frame Blower Motor - 1/2HP 1075RPM/4SPD 115V 60Hz - 5KCP39LGS093S Replacement Motor
48 Frame Blower Motor - 1/2HP 1075RPM/4SPD 115V 60Hz - 5KCP39LGS093S Replacement Motor
48 Frame Blower Motor - 1/2HP 1075RPM/4SPD 115V 60Hz - 5KCP39LGS093S Replacement Motor
48 Frame Blower Motor - 1/2HP 1075RPM/4SPD 115V 60Hz - 5KCP39LGS093S Replacement Motor
48 Frame Blower Motor - 1/2HP 1075RPM/4SPD 115V 60Hz - 5KCP39LGS093S Replacement Motor
Specifications
Supply Ability :
100,000 pcs per month
Product :
AC Blower Motor
Mounting Hole Spacing :
132mm/5.20"
Rotation :
CCW-LE
Speed :
1075RPM/4SPD
Mounting Orientation :
All Angle
Model Number :
YDK-375-6B75（5KCP39LGS093S）-CJK
Thermal Overload :
Equipped With An Automatic Thermal Overload
Capacitor :
10μF/370V
Flat Length :
76.2mm/3"
MOQ :
200 pcs
Delivery Time :
15 days fresh products after order confirmation.
Supply Frequency :
60HZ
Insulation Class :
Class B
Max. Ambient Temperature :
40℃/104℉
Payment Terms :
T/T, L/C
Frame :
48 frame
Enclosure Type :
OAO(Open Air Over)
PF :
/
Price :
Negotiable (FOB/CNF/CIF)
Motor Type :
Permanent Split Capacitor
Supply Voltage :
115V
Pole :
6P
Lead Length :
470mm/18.5"
Phase :
Single Phase
Shaft Diameter :
0.5"/12.7mm
Brand Name :
trusTec
Current :
7.9A
Certification :
CE、UL529388
Bearings :
Ball Bearing
Shaft Flat :
One Flat
Shaft Length :
101.6mm/4"
Place of Origin :
Changzhou, China
Output HP :
375W 1/2HP
Packaging Details :
Standard carton packing, foam board inside for protection.
Motor Shell Length :
133mm/5.24"
Description
48 Frame Blower Motor - 5KCP39LGS093S Replacement
High-performance 48 frame blower motor designed as a direct replacement for the 5KCP39LGS093S model. This industrial-grade motor delivers reliable operation for HVAC and ventilation systems.
Horsepower:
1/2 HP
Speed:
1075 RPM / 4-Speed
Voltage:
115V
Frequency:
60Hz
Frame Size:
48 Frame
Key Features
  • Direct replacement for 5KCP39LGS093S motor
  • Four-speed operation for versatile airflow control
  • Durable 48 frame construction
  • Industrial-grade components for long service life
  • Optimized for HVAC and blower applications
Application: Ideal for residential and commercial HVAC systems, furnace blowers, air handlers, and ventilation equipment requiring reliable 48 frame motor replacement.
