Aluminum Alloy Frame 65% AHU Bag Filter HVAC Low Wind Speed
Aluminum Alloy Frame 65% AHU Bag Filter HVAC Low Wind Speed
Aluminum Alloy Frame 65% AHU Bag Filter HVAC Low Wind Speed
Aluminum Alloy Frame 65% AHU Bag Filter HVAC Low Wind Speed
Aluminum Alloy Frame 65% AHU Bag Filter HVAC Low Wind Speed
Aluminum Alloy Frame 65% AHU Bag Filter HVAC Low Wind Speed
Specifications
Place of Origin :
Sichuan, China
Brand Name :
TRAIRF
Packaging Details :
in carton case
Price :
$12.35/pieces 1-49 pieces
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Pieces per 2-30days
Delivery Time :
2-30days
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C
Condition :
New
Efficiency :
65%
Construction :
Bag Filter
Work Temperature :
80 ℃
Initial Pressure :
65Pa
Packing :
Box Packing
Pockets :
4-8 Pockets
Description

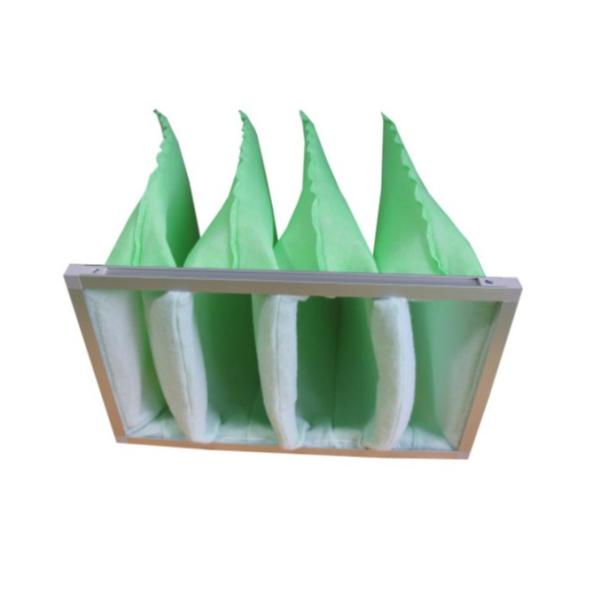

Secondary Air Conditioning Filter Lower Resistance With Aluminium Frame For Industry Ventilation System

Medium efficiency air filter is mainly used in central air conditioning and central air supply system. It can be used for the medium filtration of the air conditioning system to protect the next level of the system filter and the system itself. In the place where the requirements of air purification and cleanliness are not strict, the air treated by the medium effect air filter can be directly sent to the user.

Product Materials, features, specifications

Pocket: 4-8 Pockets
External frame: Aluminum alloy frame
Filter media: New composite non-woven fabric
Color: green
Maximum service temperature: 80℃
Maximum humidity:80%
* Long service life
* Large dust holding capacity
* Can be reused many times
* Small resistance
,* Large air flow
* Low wind speed

* Can be used multiple times

The use of synthetic Fiber Air Pocket air Filter:
Widely used for intermediate filtration of air conditioning system,
Widely used in central air-conditioning ventilation systems,
Widely used in air purification in pharmaceutical, hospital, electronics, airport, food, and other industries.

item

value

Applicable Industries

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company

Video outgoing-inspection

Provided

Machinery Test Report

Provided

Warranty of core components

Not Available

Condition

New

Efficiency

65%

Construction

Bag Filter

Place of Origin

China

Province

Sichuan

Brand Name

TRAIRF

Dimension(L*W*H)

customization

Weight

1KG

Warranty

Unavailable

Color

Green

Frame

aluminium alloy

Work Temperature

80 ℃

Initial Pressure

65Pa

Packing

Box Packing

Product Paramenters

Model Outside Dimensions(mm) Rated Air Flow(m³/h) Initial Resistance(Pa) Efficiency(class) Model Of Filter Media Pockets
TR-ZXD-P1

495×295×500mm

20”×12” ×20”

 1000 50-130
Pa		 45% F5
65% F6
85% F7
95% F8
99% F9

colorimetric		 F5
White
F6
Green
F7
Pink
F8
Yellow
F9
Yellow		 5
TR-ZXD-P2

495×295×500mm

20”×12” ×20”

 1800 5
TR-ZXD-P3

595×295×500mm

24”×12” ×20”

 1300 6
TR-ZXD-P4

595×595×500mm

24”×24” ×20”

 2200 6
TR-ZXD-P5

495×295×600mm

20”×12” ×24”

 2600 8
TR-ZXD-P6

495×495×600mm

20”×20” ×24”

 1200 5
TR-ZXD-P7

495×295×600mm

20”×12” ×24”

 2200 5
TR-ZXD-P8

595×295×600mm

24”×12” ×24”

 1600 6
TR-ZXD-P9

595×495×600mm

24”×20” ×24”

 2700 6
TR-ZXD-P10

595×595×600mm

24”×24” ×24”

 3200
 8

* Customizable Size

Aluminum Alloy Frame 65% AHU Bag Filter HVAC Low Wind Speed
