Specifications
系列 :
低温露点变送器
特征 :
高精度进口传感器:
安装类型 :
管道类型，壁挂式
描述 :
维萨拉迷你露点变送器
型号 :
QMLD-1, QMLD-1
种类 :
露点变送器
原产地 :
Guangdong, China
品牌 :
QINGMAI
用途 :
压力露点仪
原理 :
露点变送器QMLD-1
输出 :
4-20mA
品名 :
维萨拉
产品名称 :
维萨拉
连接器 :
4-20mA
应用程序 :
空气干燥机，塑料干燥机，添加剂生产，等等
露点测量范围 :
-60 °C ~ 20 °C
颜色 :
银色
认证 :
ISO CE ROHS

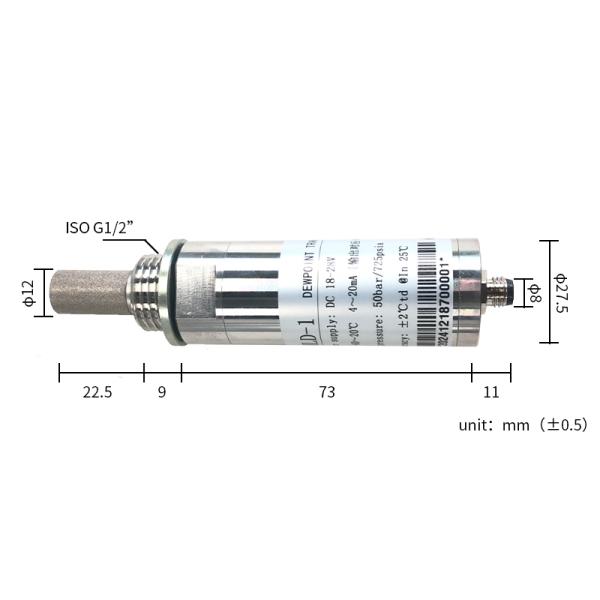

探头尺寸 :
15cm * 5cm * 2cm
准确度 :
± 2 °C
温度范围 :
-80 °C ~ 20 °C
Description
Products Description
Product name

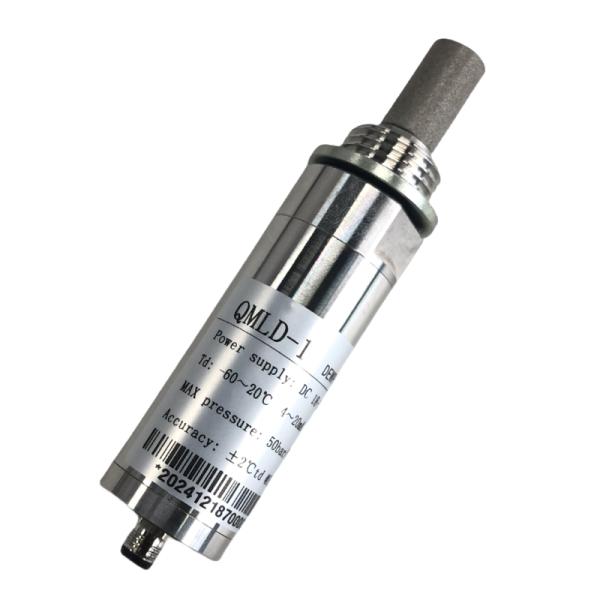

Dew Point Transmitter
model
QMLD-1
Dew point measurement range
-60~20°Ctd (standard)
Application temperature range
-20~70°C
Response time [63% (90%), gas temperature 20 °C, pressure 1 bar]:
-40->-30°Ctd: 40 seconds (80 seconds,
-30->-40°Ctd: 5 minutes (20 minutes)
Current output (adjustable range)
4~20mA (Three-wire)
Accuracy
+2°Ctd (standard)
Current output (adjustable range)
4~20mA (Three-wire)
Current output temperature drift
0.01% of span/°C
Current output resolution
0.002mA
Current output load
＜3500hm
Storage temperature
-40-60℃
Power supply
18-28V/30mA
Working temperature
-40-60°C
Work environment pressure
0-50bar
Relative humidity of working environment
0-95%RH
Sample gas flow rate in working environment
>1 L/min

Product Features:

Dew point sensor QMLD-1 New Polymer Thln Film Sensor Technology IP65 Protection grade Stable anti-interference High-precision chip Application Scenario In agriculture, laboratories, industrial manufacturing, large warehouses, etc Domain is one of the indispensable tools The low humidity sensitivity should be more than a hundred times higher than that of ordinary humidity sensitive capacitors. The sensor uses a humidity sensitive capacitive type as the core component,which can sense the moisture content of air in extremely low humidity. After multi-point calibra-tion and temperature correction. it ensures the rellability of testing and has accurate measurement results in various environments, which are then converted into current signal output. Stainless steel probe housing Waterproof and dustproof, resistant to high temperature, corro-sion, good compactness, fast response, low environmental requirements for use, IP65 protection level can provide good protection even in harsh environments.
Dew point meter sensor for high-precision and sensitive measurement of industrial and agricultural air humidity monitoring
Dew point meter sensor for high-precision and sensitive measurement of industrial and agricultural air humidity monitoring
Dew point meter sensor for high-precision and sensitive measurement of industrial and agricultural air humidity monitoring
Dew point meter sensor for high-precision and sensitive measurement of industrial and agricultural air humidity monitoring
Dew point meter sensor for high-precision and sensitive measurement of industrial and agricultural air humidity monitoring
Dew point meter sensor for high-precision and sensitive measurement of industrial and agricultural air humidity monitoring
Dew point meter sensor for high-precision and sensitive measurement of industrial and agricultural air humidity monitoring
Dew point meter sensor for high-precision and sensitive measurement of industrial and agricultural air humidity monitoring
Dew point meter sensor for high-precision and sensitive measurement of industrial and agricultural air humidity monitoring
Dew point meter sensor for high-precision and sensitive measurement of industrial and agricultural air humidity monitoring
Recommend Products
Company Profile
Dew point meter sensor for high-precision and sensitive measurement of industrial and agricultural air humidity monitoring
Certifications
Dew point meter sensor for high-precision and sensitive measurement of industrial and agricultural air humidity monitoring
Packaging&Shipping
Dew point meter sensor for high-precision and sensitive measurement of industrial and agricultural air humidity monitoring
Dew point meter sensor for high-precision and sensitive measurement of industrial and agricultural air humidity monitoring
Dew point meter sensor for high-precision and sensitive measurement of industrial and agricultural air humidity monitoring

FAQ

1) Are you a factory or a trading company?
We are an integrated industry and trade company with nearly 10 years of experience in cross-border foreign trade supply, with a self built factory warehouse and an engineer research and development team.
2) Minimum order quantity and order delivery cycle?
Provide sample service and shipping inspection, with a minimum order quantity. Sample or small order delivery cycle: within 1 day; Batch order delivery cycle: 7-15 working days
3) Can we print our logo/brand name on the product and provide certification?
Yes, we accept OEM and ODM. If necessary, you can change the logo, color, packaging, and
functionality. We provide CE certification, calibration certificates, sea/air transport reports, etc. 4) Product quality assurance and after-sales service?
We adhere to the 6S management of Rhine factory inspection, and our products undergo 5 quality inspection processes before leaving the factory. We offer a 12 month warranty and specialized after-sales service.
5) What is the payment method?
Support multiple payment methods such as Western Union remittance and Alibaba trade guarantee credit card.
6) What is your mode of transportation?
We will choose the transportation method according to your requirements, including DHL, UPS, FEDEX, EMS,regular air mail, and the customer's freight forwarder
