Hot Selling Professional Multi-functional Wall Scanner & Stud Finder - Magnetic Wire/Cable Detector for Deep Scanning

Specifications

warranty :

1 Year

customized support :

OEM, ODM

Place of Origin :

Guangdong, China

Brand Name :

RONGCE

material :

ABS+ELECTRONIC

color :

Other

power :

1x9 volt dry battery

Type :

Wall Detector

Application :

Inspection

Usage :

Stud Sensor Finder

Size :

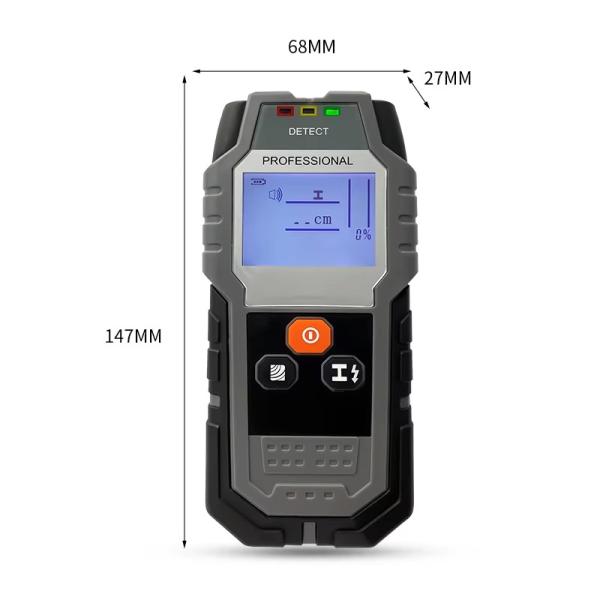

147*68*27mm

Certificate :

CE,ROHS,FCC

Copper wire :

≥4 mm² and single strands of copper wire

Hint :

The copper wire must be electrification

Metal mode :

constant speed ≤ 6cm/s

Wood file mode :

constant speed ≤ 4cm/s

Working humidity range 1 :

0-85%RH in metal mode

Description

Hot Selling Professional Multi-functional Wall Scanner & Stud Finder - Magnetic Wire/Cable Detector for Deep Scanning

Product Overview

Feature

1.The detector can detect metal (steel bar, copper pipe) and cables hidden in walls, ceilings and floors. It can also detect wood beams, metals and cables hidden beneath the plasterboard.

2.Precise measurement , stable performance, safe and reliable.

3. When a metal substance is detected, the yellow or red indicator light of the detector will light up, and a continuous sound will be emitted from the instrument. (Signal of the detected object is from strong to weak, less than 30%, etc., yellow light, more than 30% red light)

4. When the metal substance and the AC signal are detected at the same time, the red indicator light of the detector will flash and a chirping sound will be heard from the instrument.

5. When the detector displays a non-magnetic metal symbol, it means that the current measured object is generally a wire or a copper pipe.

6. When the detector displays a magnetic metal symbol, it indicates that the current measured object is generally a steel bar.

7. When the detector does not display magnetic or non-magnetic metal symbols, it indicates that the current measured object is generally an alloy.

8. When the AC symbol on the instrument blinks, it indicates that there is an AC signal nearby.

Specification

Type	Multi-function detector
Model Number	RC08

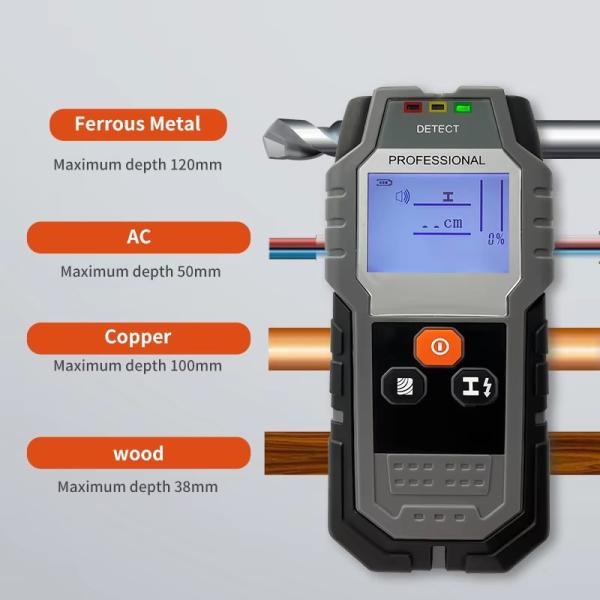

Ferrous metal	120 mm
Non-ferrous metal (copper)	100mm
Alternating current (ac)	50mm
Copper wire (≥4 mm 2 )	40mm
Size	1476827mm
The usage time	about 6 hours
Operating temperature range	-10℃~50℃
Storage temperature rangeForeign body 1((Generally refers to the wooden block)	-20℃~70℃
Foreign body 1((Generally refers to the wooden block)	exact mode 20 mm deep mode 38 mm
Working humidity range	0-85%RH in metal mode/0-60%RH in foreign body mode

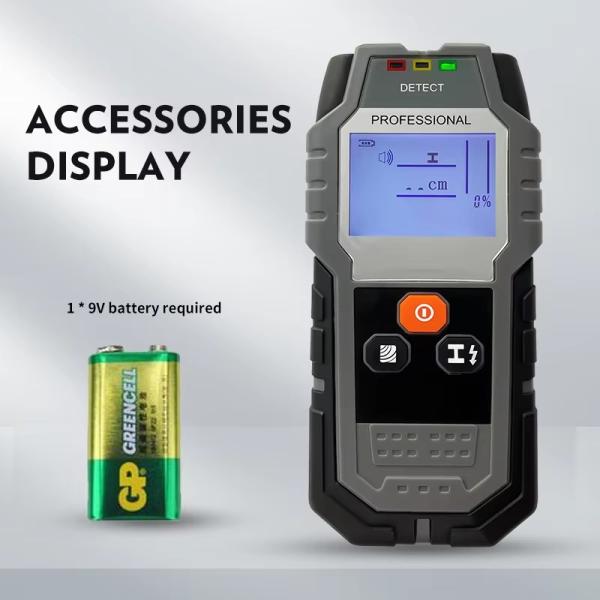

Battery	1x9 volt dry battery

Product Description

Hot Selling Professional Multi-functional Wall Scanner & Stud Finder - Magnetic Wire/Cable Detector for Deep Scanning

Name: Hot Selling Professional Multifunctional Wall Scanner Stud Finder Magnetic WireCable Detector for Deep Scanning
Brand: RONGCE
Price: 1 USD
