API Standard Oil Drilling Equipment Vacuum Degasser Unit And Drilling Mud Degasser As Solid Control Equipment

Product Description:

The vacuum degasser uses the suction of the vacuum pump to create negative pressure in the vacuum tank. Under the action of atmospheric pressure, the mud enters the hollow shaft of the rotor through the suction pipe, and then is thrown toward the wall of the well in a jet shape through the windows around the hollow shaft. Due to the collision and the action of the separation wheel, the drilling fluid is separated into thin layers, the bubbles immersed in the mud are broken, and the gas escapes. Through the suction of the vacuum pump and the separation of the gas-liquid separator, the gas is discharged to a safe area by the separator, and the mud is discharged from the tank by the impeller. Since the main motor is started first, the impeller connected to the motor is in a high-speed rotating state, so the mud can only enter the tank from the suction pipe and will not be sucked from the discharge pipe.
The ZCQ series vacuum degasser sold by our company is a new type of special equipment for treating gas-invaded drilling fluid, also called a negative pressure degasser, which can quickly remove various gases invading the drilling fluid, and plays an important role in restoring the specific gravity of the mud and stabilizing the mud performance. At the same time, it can also be used as a high-power agitator, suitable for supporting various mud circulation purification systems. This equipment is a negative pressure degasser with a scientific and reasonable design structure, which can achieve effective gas-liquid separation, filter out impurities and ensure that the exhaust pipe is always unobstructed.

Product Features:

1. During the working process, the water ring vacuum pump is always in an isothermal state, suitable for the suction of flammable and explosive gases, with reliable safety performance;
2. The drilling fluid is ejected to the bubble breaking plate at high speed through the window of the rotor, and the bubbles in the drilling fluid are completely broken, with good degassing effect;
3. The working condition in the vacuum tank of the degasser can be seen through the transparent observation window, and the working condition of the vacuum degasser can be adjusted through the pressure regulating valve to make the degasser work under the best working condition;
4. Scientific reasonable design for structure, it can get effective gas fluids separator, filler out impurities ti guarantee vent pipe always clear;
5. High degassing efficiency up to 95%;
6. There is gas-water separator in vacuum degasser, which can avoid the gas and fluids are all removed together, and also can supply water for vacuum pump, saving water and environment-friendly;
7. Liquid level sensor for safety operation;
8. Technical and spare parts support in many countries.

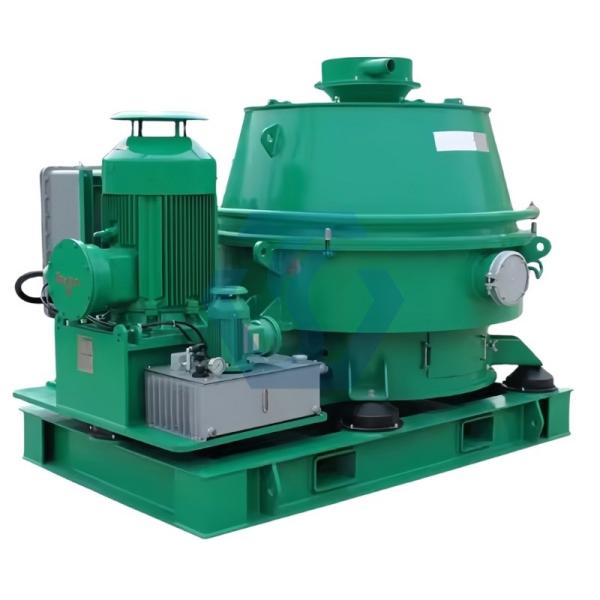

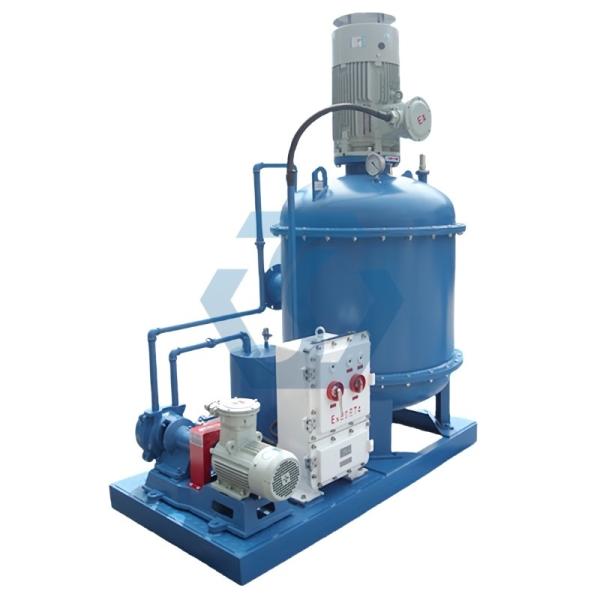

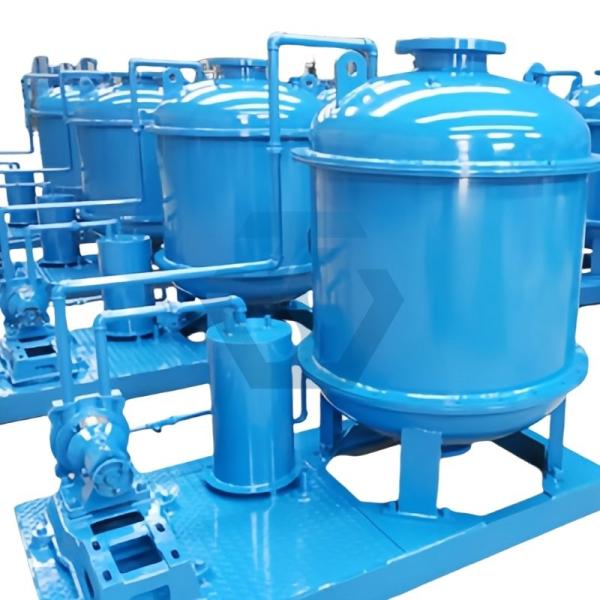

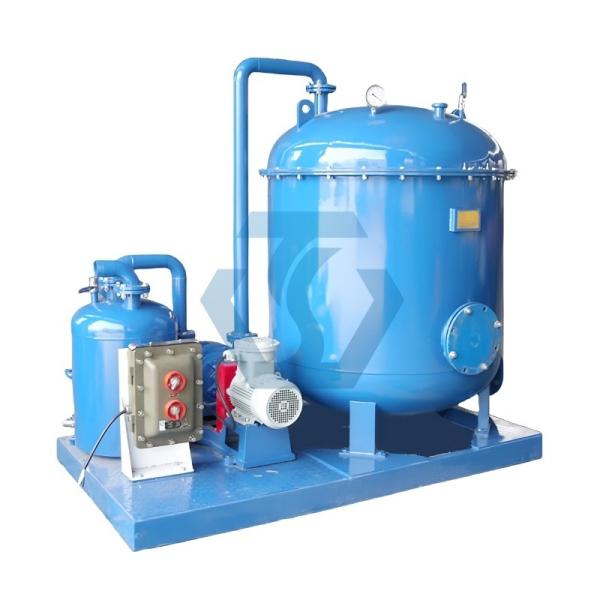

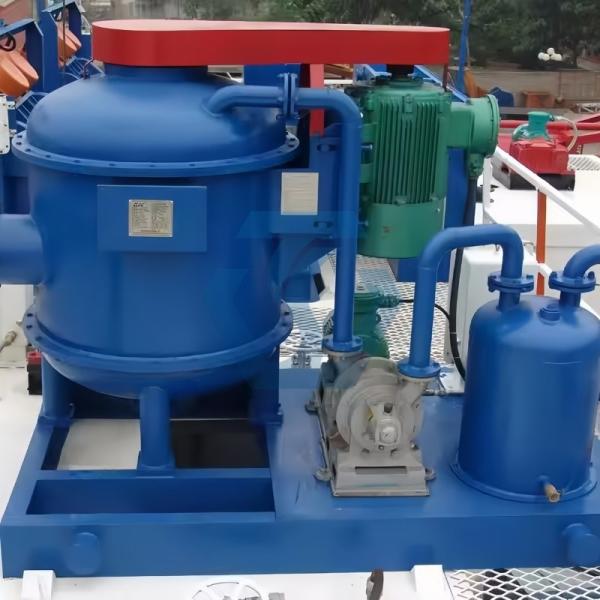

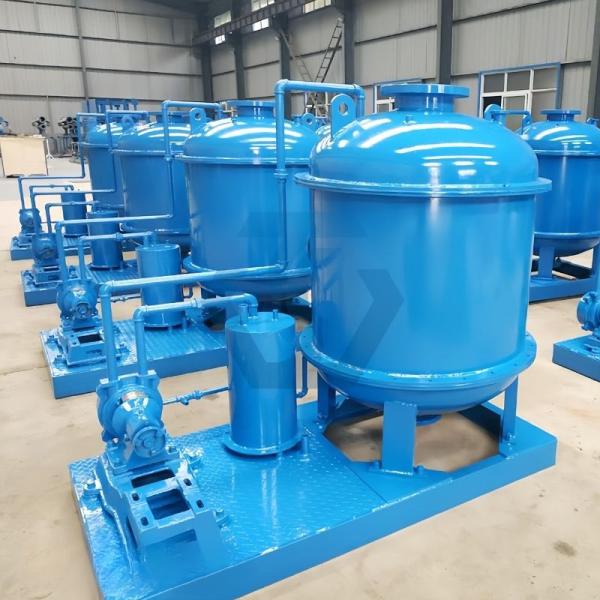

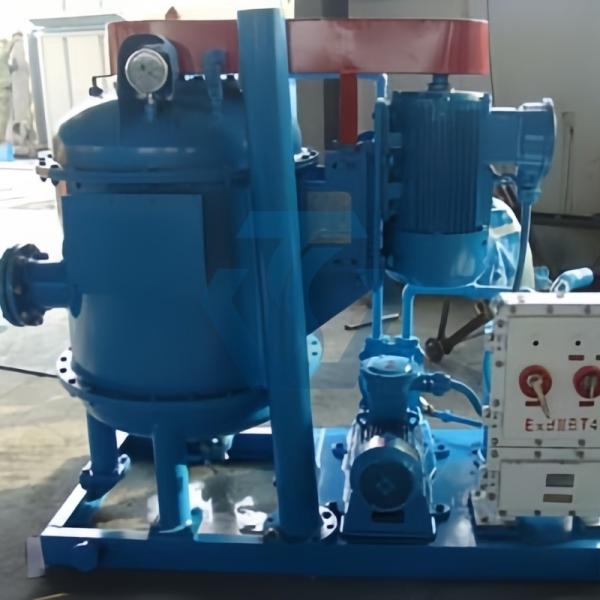

Product Display:

Product Application:

Oilfield Well Drilling , Energy , Mining.

Product Model Parameters:

Iron box or iron frame , or customized according to customer requirements , or according to customer requirements.

Product Detection:

100% tested before delivery.

Product Delivery Method:

Express, truck , train , air , sea , or customized according to customer requirements.
