Solid Control Vertical Agitator Oil Field Drilling Equipment Mud Agitator For Oil Gas
Solid Control Vertical Agitator Oil Field Drilling Equipment Mud Agitator For Oil Gas
Solid Control Vertical Agitator Oil Field Drilling Equipment Mud Agitator For Oil Gas
Solid Control Vertical Agitator Oil Field Drilling Equipment Mud Agitator For Oil Gas
Specifications
Brand Name :
HuiChi (HC)
Model Number :
HC
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$1000-5000/set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 sets per month
Delivery Time :
15-30 days
Packaging Details :
Export Wooden Case and wooden palle or according to customers' requirements.
Product Type :
Drill Fluid Agitator
Mixer Type :
Agitator
Condition :
New
Place Of Origin :
China
Warranty :
3 months
Applicable Industries :
Manufacturing plant, machinery repair shop, energy and mining
Warranty Of core Components :
1 Year
Impeller Dia :
500-1000mm
Customized :
Logo,Packaging,Graphic
Power :
2.2 - 22 KW
Weight :
150~800Kg
Color :
Red Or As Customer Requirement
Description

Mud Agitator Technical Description:

Solid Control Vertical Agitator Oil Field Drilling Equipment Mud Agitator For Oil Gas

Solid Control Vertical Agitator Oil Field Drilling Equipment Mud Agitator For Oil GasSolid Control Vertical Agitator Oil Field Drilling Equipment Mud Agitator For Oil Gas

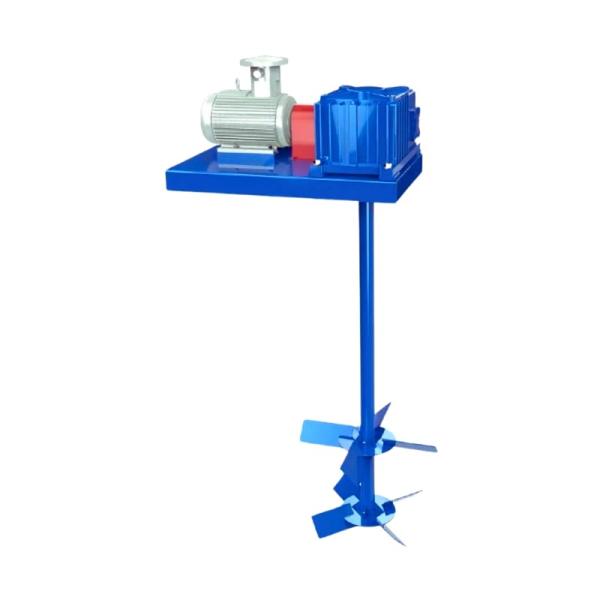

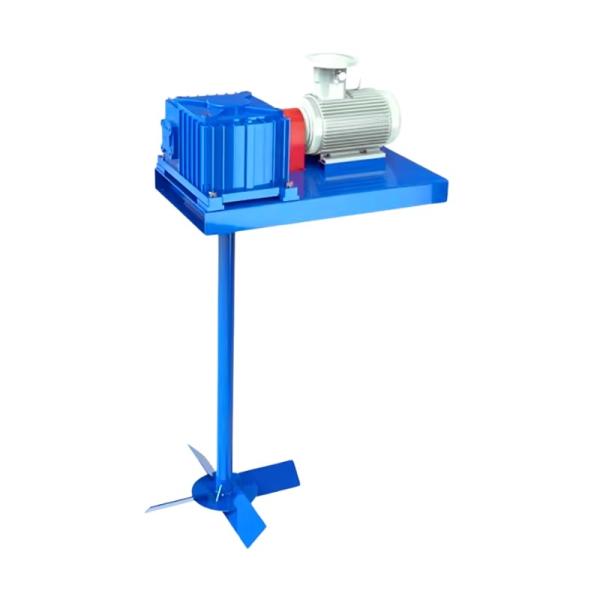

The HC mud mixer series is part of the drilling fluid solid control equipment. It is mainly used to stir and mix the drilling fluid to prevent solid particles from depositing in the circulation tank and stabilize the drilling fluid performance.

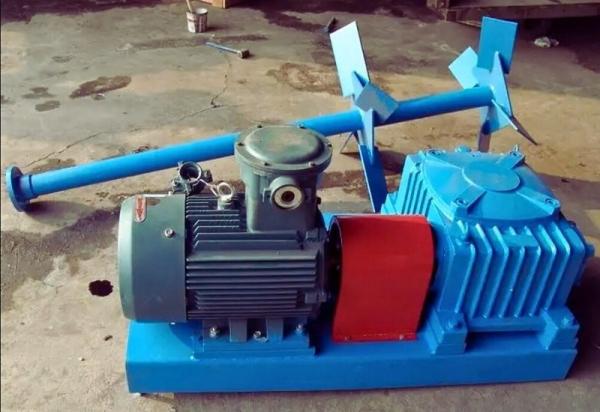

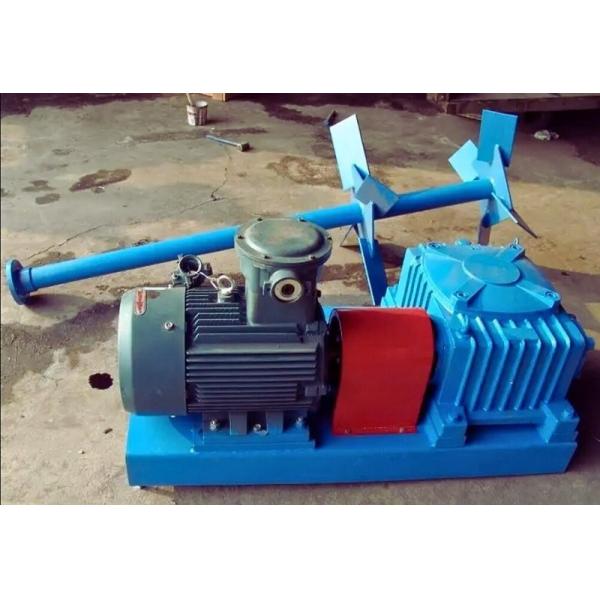

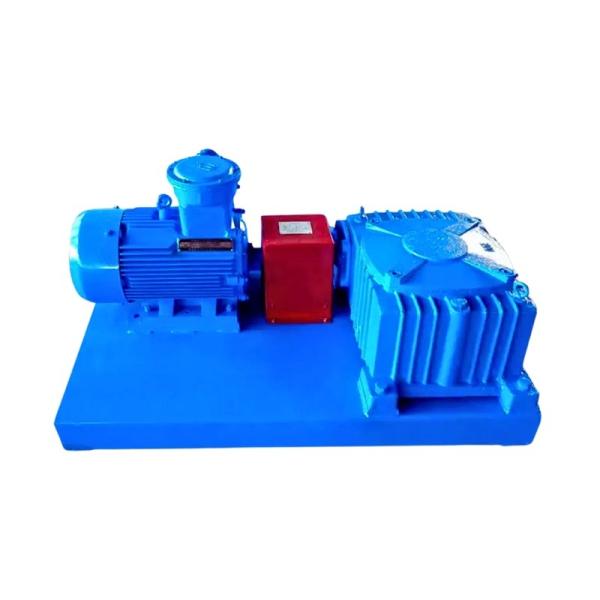

It is composed of explosion-proof motor, reducer, motor base and blades. The motor and reducer, as well as the reducer and impeller shaft, are connected with steel couplings. The impeller is welded with four blades.

Mud Agitator Technical Specification:


Model
Motor(Kw)
Speed (RPM)
Impeller Size(mm)Impeller Qty(pcs)
Ratio
Weight(Kg)Dimension(mm)Shaft Length (mm)
HC030D
3
60/72
650
1
25:01:00
154
717×560×471
The length of Agitating shaft could customized according to the tank's depth.
HC055D
5.5
(50HZ/60HZ)
850
1
280
892×700×597
HC075D
7.5
　
950
1
287
980×750×608
HC075DD
　
800
2
297
HC110D
11
　
1050
1
402
1128×840×655
HC110DD
　
850
2
419
HC150D
15
　
1100
1
423
1158×840×655
HC150DD
　
950
2
441
HC185DD
18.5
　
1050
2
746
1270×1000×727
HC220DD
22
　
1100
2
820
1270×1000×727

Mud Agitator Application:

Manufacturing Plant, Food & Beverage Factory, Energy & Mining, Petrochemical Industry.

Mud Agitator Features:

(1) Spiral bevel gearbox.
(2)Explosion-proof motor.
(3) The explosion-proof motor is directly connected to the gear box.
(4) Electric power supply range is 2.2 to 22 kilowatts.
(5) Compact, quiet, smooth and easy to maintain.
(6) Durable single-stage reduction worm gear transmission.
(7) Few moving parts and less maintenance.
