Specifications
Brand Name :
HuiChi (HC)
Model Number :
Drilling Hose Series
Certification :
API 7K
Place of Origin :
China
MOQ :
100 M
Price :
$25-100 / Meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 Sets Per Month
Delivery Time :
Within 5-30 Days
Packaging Details :
Export Wooden Case And Wooden Palle Or According To Customers' Requirements.
Condition :
New
Warranty Of Core Components :
1 Years
Customized :
Logo / Packaging / Graphic
Machinery Test Report :
Provided
Type :
Rotary And Vibratory Hoses
Product Name :
Rotary Cementing Hose/ Flexible Acidizing And Fracturing Hose
Usage :
Well Drilling, Well Cementing
Working Pressure :
2000-15000 psi
Working Temperature :
-30 ℃~ +120 ℃
Material Of Rubber :
NR,NBR,EPDM,CR and etc
Description

Buckle Flange High Pressure Hose Wire Winding Hydraulic Oil Pipe Oil Field High Pressure Water Supply Pipeline 2 Inch 3 Inch 4 Inch

Product Description:

Drilling hose is the customary name for "rubber hose for rotary drilling and shock absorption", and is also commonly called "drilling equipment hose" and "water hose".

In geological and petroleum rotary drilling, it is necessary to transport large volumes of fluid mud to the drill bit under high pressure, and rotary drilling hoses and hose assemblies are used as flexible connectors in mud delivery pipelines.

The functions and advantages of drilling hose produced and sold by our company Huichi Petro are:

1. The reinforcing layer of the product adopts imported high-strength steel wire for spiral hose, the inner lining rubber adopts imported original rubber and our company's special formula, and synthetic materials are used as the sealing layer. Different formulas are used according to different liquid media;

2. The flange joints at the end of the product adopt suitable materials according to the pressure and use environment and are treated with anti-corrosion and heat treatment. The flange adopts an integral forging process, and there is no need to consider the direction alignment problem during installation;

3. Due to the influence of its structural raw materials, it can withstand oil-based mud and water-based mud, and the inner wall is highly wear-resistant and can withstand the flow rate of high-speed mixed mud. It can also withstand extreme weather such as high temperature and severe cold. Due to its external structure, it is both corrosion-resistant and anti-static;

4. Working temperature: oil -40℃~+100℃, air -30℃~+50℃, water emulsion +80℃ or below. If it exceeds, please contact us, our company Huichi petro can customize products according to your needs.

Product Features:

1. The hose is made of synthetic rubber and has good oil resistance, heat resistance and aging resistance;

2. The hose has high pressure bearing capacity and excellent pulse performance;

3. The hose body is tightly combined, soft to use, and has little deformation under pressure;

4. The hose has good bending resistance and fatigue resistance;

5. The steel wire braided hose is long, generally with a fixed length of 20 meters, and can be produced in a row of tens of meters or even more than 100 meters;

6. Size : 1-1/2'', 2'', 2-1/2'', 3'', 4'', 5'', 6''.

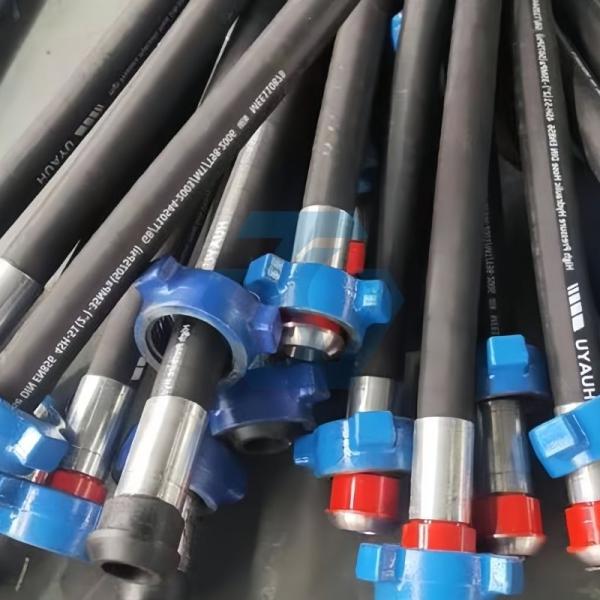

Product Display:

Buckle Flange High Pressure Hose Wire Winding Hydraulic Oil Pipe Oil Field 2 3 4 InchBuckle Flange High Pressure Hose Wire Winding Hydraulic Oil Pipe Oil Field 2 3 4 InchBuckle Flange High Pressure Hose Wire Winding Hydraulic Oil Pipe Oil Field 2 3 4 InchBuckle Flange High Pressure Hose Wire Winding Hydraulic Oil Pipe Oil Field 2 3 4 Inch

Product Application:

It is suitable for the connection of throttle manifolds, well-killing manifolds, drilling platforms, and changes in drilling rig installation dimensions during oil drilling, and for conveying high-pressure media such as oil, gas, and mud.

Product Model Parameters:

Rotary Driling Dimensions and Pressures
API spec 7K:2010
Inside Diameter mm (in.) API Grade Working Pressure MPa (psi) Test Pressure MPa (psi) Safoty Factor Minimal Burst Pressure Mpa (psi) MBR Operational m (in) Remark
50.8 (2.0) A 10.3 (1500) 20.7 (3000) 2.5 25.8 (750) 0.9 (36) 　
B 13.8 (2000) 27.6 (4000) 2.5 34.5 (5000) 0.9 (36) 　
C 27.6 (4000) 55.2 (8000) 2.5 69.0 (10,000) 0.9 (36) 　
D 34.5 (5000) 69.0 (10,000) 2.5 86.3 (12,500) 0.9 (36) 　
　 69.0 (10,000) 103.4 (15,000) 2.25 155.3 (22,500) 1.2(48) Cement
　 103.4 (15,000) 155.1 (22,500) 2.25 232.7 (33,750) 1.4 (55) Cement
63.5(2.5) A 10.3 (1500) 20.7 (3000) 2.5 25.8 (3750) 0.9 (36) 　
B 13.8 (2000) 27.6 (4000) 2.5 34.5 (5000) 0.9 (36) 　
C 27.6 (4000) 55.2 (8000) 2.5 69.0 (10,000) 0.9 (36) 　
D 34.5 (5000) 69.0 (10,000) 2.5 863 (12,500) 0.9 (36) 　
E 51.7 (7500) 103.4 (15,000) 2.5 129.3 (18,750) 1.2 (48) 　
　 69.0 (10,000) 103.4 (15,000) 2.25 155.3 (22,500) 1.2 (48) Cement
　 103.4 (15,000) 155.1 (22,500) 2.25 232.7 (33,750) 1.5 60) Cement
76.2 (3.0) C 27.6 (4000) 55.2 (8000) 2.5 69.0 (1000) 1.2(48) 　
D 34.5 (5000) 69.0 (10,000) 2.5 86.3 (12,500) 1.2 (48) 　
E 51.7 (7500) 103.4 (15,000) 2.5 129.3 (18,750) 1.2 (48) 　
　 69.0 (10,000) 103.4 (15,000) 2.25 155.3 (22,500) 1.5 (60) Cement
　 740 (10,700) 103.4 (15,000) 2.25 166.5 (24,150) 1.5 (60) Cement
88.9 (3.5) C 27.6 (4000) 55.2 (8000) 2.5 69,0 (1000) 1.4 (54) 　
D 34.5 (5000) 69.0 (10,000) 2.5 86.3 (12,500) 1.4 (54) 　
E 51.7 (7500) 103.4 (15,000) 2.5 129.3 (18,750) 1.4 (54) 　
　 65.0 (9400) 103.4 (15,000) 2.25 146.3 (21,200) 1.4 (64) Cement
101.6(4.0) C 27.6 (4000) 55.2 (8000) 2.5 69.0 (1000) 1.4 (54) 　
D 34.5 (5000) 69.0 (10,000) 2.5 86.3 (12,500) 1.4 (64) 　
E 51.7 (7500) 103.4 (5000) 2.5 129.3 (18,750) 1.5 (60) 　
　 69.0 (10,000) 103.4 (15,000) 2.25 155.3 (22,500) 1.8(72) Cement
127.0(5.0) C 27.6 (4000) 55.2 (8000) 2.5 69.0 (10,000) 1.5 (60) 　
D 34.5 (5000) 69.0 (10,000) 2.5 86.3 (12,500) 1.5 (60) 　
E 51.7 (7500) 103.4 (15,000) 2.5 129.3 (18,750) 1.8(72) 　
152.4(6.0) D 34.5 (5000) 69.0 (10,000) 2.5 86.3 (12,500) 1.8 (72) 　
E 51.7 (7500) 103.4 (15,000) 2.5 1293 (18,750) 1.8 (72) 　

Product Package:

Iron box or iron frame , or customized according to customer requirements , or according to customer requirements.

Product Detection:

100% tested before delivery.

Product Delivery Method:

Express, truck , train , air , sea , or customized according to customer requirements.
