Carpet Rugs Rubber Vulcanizing Machine Hydraulic Press for Rubber Vulcanization
Carpet Rugs Rubber Vulcanizing Machine Hydraulic Press for Rubber Vulcanization
Carpet Rugs Rubber Vulcanizing Machine Hydraulic Press for Rubber Vulcanization
Carpet Rugs Rubber Vulcanizing Machine Hydraulic Press for Rubber Vulcanization
Carpet Rugs Rubber Vulcanizing Machine Hydraulic Press for Rubber Vulcanization
Carpet Rugs Rubber Vulcanizing Machine Hydraulic Press for Rubber Vulcanization
Carpet Rugs Rubber Vulcanizing Machine Hydraulic Press for Rubber Vulcanization
Carpet Rugs Rubber Vulcanizing Machine Hydraulic Press for Rubber Vulcanization
Carpet Rugs Rubber Vulcanizing Machine Hydraulic Press for Rubber Vulcanization
Carpet Rugs Rubber Vulcanizing Machine Hydraulic Press for Rubber Vulcanization
Carpet Rugs Rubber Vulcanizing Machine Hydraulic Press for Rubber Vulcanization
Carpet Rugs Rubber Vulcanizing Machine Hydraulic Press for Rubber Vulcanization
Specifications
Place of Origin :
Shandong, China
Brand Name :
HuiCai
Type :
Vulcanizer
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
1 Year
Core Components :
PLC, Motor, Pump
Tire Machine Type :
Other Tire Machine
Voltage :
customer requested
Dimension(L*W*H) :
sized
Year :
NEW
Warranty :
1 Year
Key Selling Points :
Sustainable
Power (kW) :
8 kW
Weight (KG) :
3000 KG
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining
Showroom Location :
India, Sri Lanka
color :
blue/green
waranty :
one year life
certification :
ISO 9001
control :
Automatic or Semi-automatic
Weight :
designed
Power(W) :
designed
Packaging Details :
export packing
Port :
Qingdao
Supply Ability :
200 Set/Sets per Month
Price :
$5,000.00/sets >=1 sets
MOQ :
1
Description

Product Description

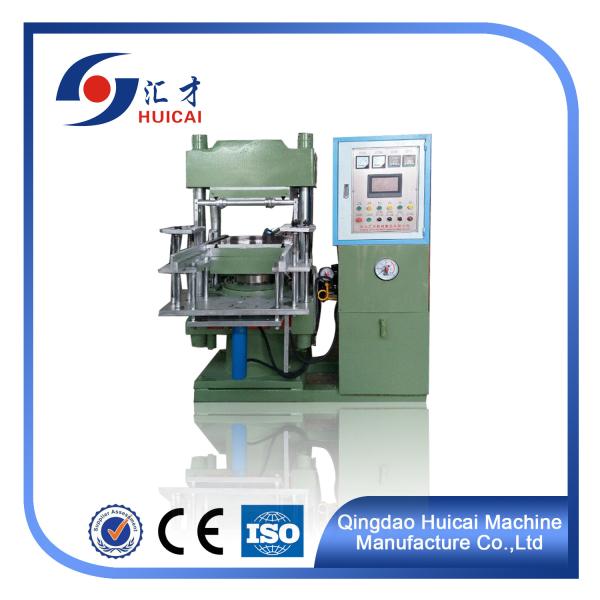

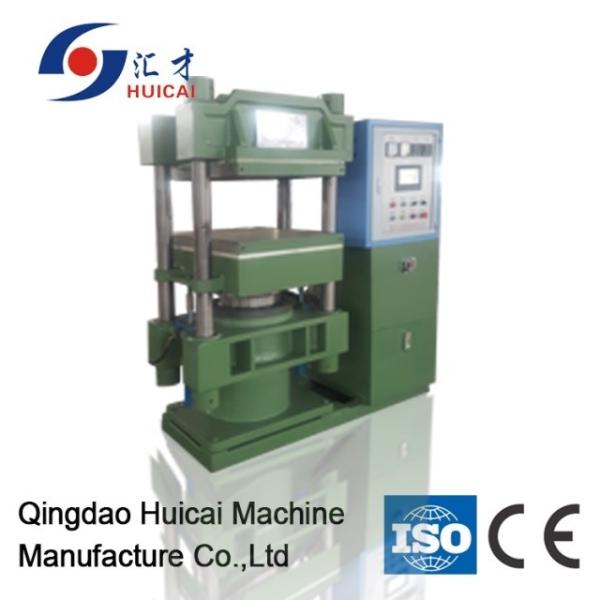

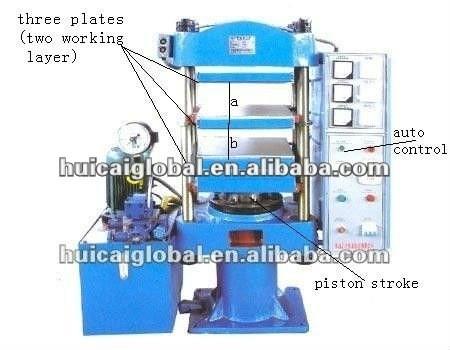

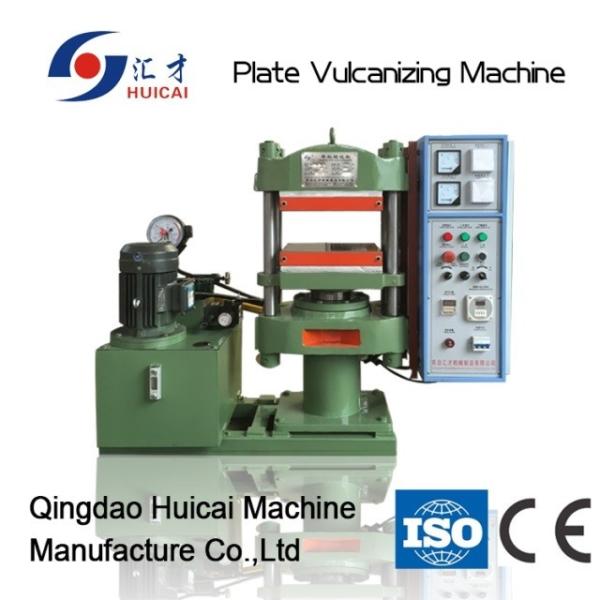

Pictures of Rubber Vulcanizing Press Machine:

Carpet Rugs Rubber Vulcanizing Machine Hydraulic Press for Rubber Vulcanization

Technical Data:

All kinds of non standard rubber machinery are avaliable.we can design and manufacture the machine especially as each customer requirements in order to meet customer need.So Please send me your detailed requirements.

Type XLB-D(Y)350*350*2/0.25 XLB-D(Y)400*400*2/0.5 XLB-D(Y)500*500*2/0.6(0.8)
Nominal molding power(MN) 0.25 0.5 0.6,0.8
Working layer number 2 2 2
Piston stroke(mm) 250 250 250
Plate Press(Mpa) 2.04 3.13 3.2
Main motor power(KW) 1.5 2.2(1.5) 2.2(1.5)
Plate clearance(mm) 125-200 125-200 125-200
Calefaction manner Electric oil steam Electric oil steam Electric oil steam
Configuration Column Frame Column Frame Column Frame
Electric pipe heating power(KW) 1.8 2.7 3.0

Use:

This machine is used to produce various rubber products, such as solid tire, shoe sole, rubber tile, rubber sheet, rubber hollowmat,rubber floor mat,rubber cow mat,rubber horse mat, rubber gasket, rubber wheels,rubber belt, etc.

Features:

1. High speed open/close molds, high production efficiency

2. Automatic in/out mold and ejector device, low labor strength

3.Optional normal valve or proportional valve, advanced oil way matching, reduce energy consumption

4. The electric system adopt PLC programming control, which is easy to be operated

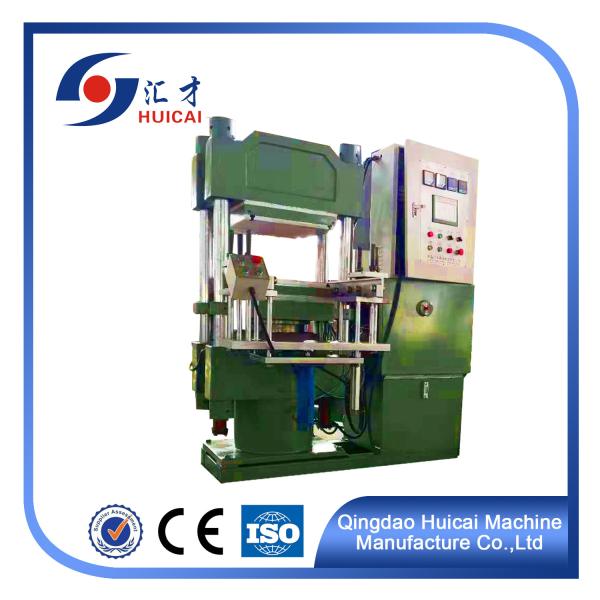

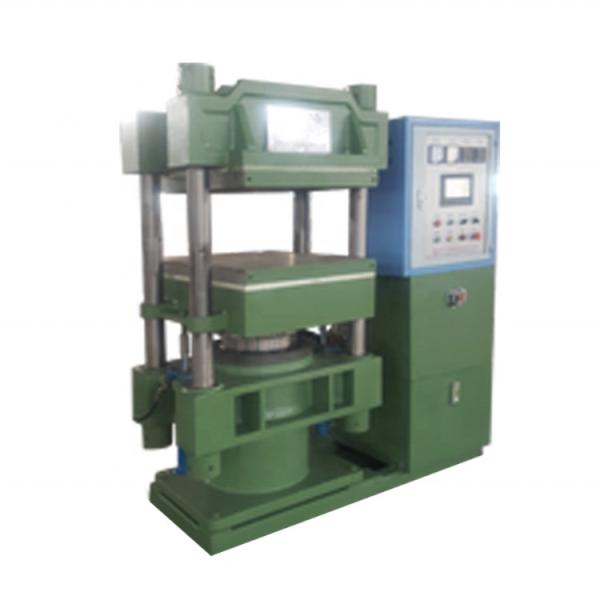

Detailed Images

Carpet Rugs Rubber Vulcanizing Machine Hydraulic Press for Rubber VulcanizationCarpet Rugs Rubber Vulcanizing Machine Hydraulic Press for Rubber VulcanizationCarpet Rugs Rubber Vulcanizing Machine Hydraulic Press for Rubber VulcanizationCarpet Rugs Rubber Vulcanizing Machine Hydraulic Press for Rubber VulcanizationCarpet Rugs Rubber Vulcanizing Machine Hydraulic Press for Rubber VulcanizationCarpet Rugs Rubber Vulcanizing Machine Hydraulic Press for Rubber VulcanizationCarpet Rugs Rubber Vulcanizing Machine Hydraulic Press for Rubber VulcanizationCarpet Rugs Rubber Vulcanizing Machine Hydraulic Press for Rubber Vulcanization

We are looking forward to cooperating with you!
