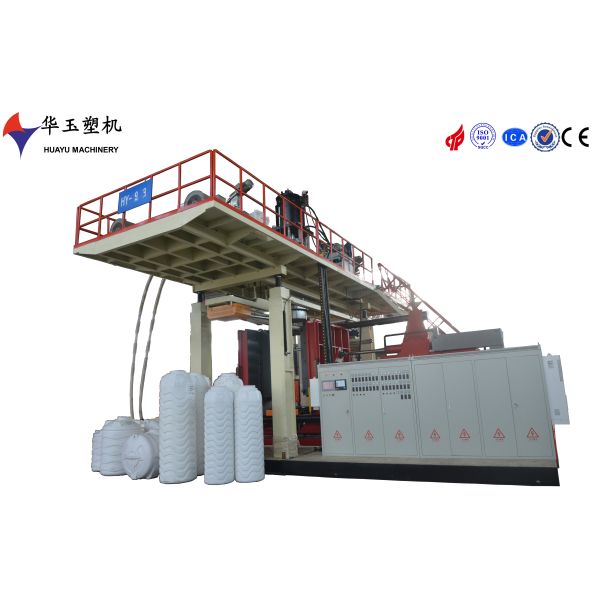

Huayu 3000L 5 Layers Blow Mouling Machine With High Precision and High Output
Huayu 3000L 5 Layers Blow Mouling Machine With High Precision and High Output
Specifications
Brand Name :
HUAYU
Model Number :
HY3000L-5 Layers blow moulding machine
Certification :
CE,ISO9001
Place of Origin :
SHANDONG WEIFANG
MOQ :
1 SET
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
4 sets per month
Delivery Time :
5 months
Packaging Details :
The machine will be disassembled into many parts for container transportation.
blow pin up/down stroke :
600mm
total power :
560kw
average power :
350kw
machine dimension :
9*10*7.5
hopper material :
stainless steel
die head heating power :
100kw
Accumulator capacity :
90kg
platen size :
2100*2200*60mm
max.mould size :
1700*2200mm
air seat stroke :
400mm
Description

Huayu 3000L 5 Layers Blow Mouling Machine With High Precision and High Output

Huayu 3000L 5 Layers Blow Mouling Machine With High Precision and High Output

Screw diameter 100/100/100/100/100mm Nitrided 38CrMoAIA
Screw L/D ratio 28:1 special designed screw can ensure the material plasticizing uniform and efficient
Extruder motor 55/55/55/55/55kw
Reducer 280/280/280/280/280 Best quality brand in china ,long life and low noise
Screw heating power 4.4kw*20
Plasticizing capacity 750kg/h
die head
Accumulator capacity 90kg designed by ourselves and get the patent
Die diameter According to products
Die head heating power 110kw
Clamping System
platen size 2100*2200*60mm(W*H*T) smooth running, no noise; the clamping force is big
clamping cylinder 200+300*2
clamping cylinder stroke 2100mm
clamping force 2200KN
distance between platens 1100-3200mm
max. mould size 1700*2200mm(W*H)

The Hua Yu 3000L 5-layer blow molding machine has excellent performance and many advantages.It uses five-layer co-extrusion technology,which can enhance the function of the container.The inner layer is made of food-grade HDPE material,which is sanitary and has good chemical resistance.

The barrier layer uses EVOH or PA materials,which can effectively prevent the penetration of oxygen and moisture.The machine is equipped with an intelligent control system,which can monitor and adjust the production process in real time,improving production efficiency and reducing energy consumption.

In addition,it has a precise forming and modular design,which can ensure the quality and consistency of the products.The Hua Yu 3000L 5-layer blow molding machine is a high-performance and efficient equipment,which is widely used in various fields such as food,pharmaceutical,and chemical industries.
