High Speed 2 Layers Blow Moulding Machine for Road Barrier Capacity and 180kw Power
High Speed 2 Layers Blow Moulding Machine for Road Barrier Capacity and 180kw Power
High Speed 2 Layers Blow Moulding Machine for Road Barrier Capacity and 180kw Power
High Speed 2 Layers Blow Moulding Machine for Road Barrier Capacity and 180kw Power
High Speed 2 Layers Blow Moulding Machine for Road Barrier Capacity and 180kw Power
High Speed 2 Layers Blow Moulding Machine for Road Barrier Capacity and 180kw Power
High Speed 2 Layers Blow Moulding Machine for Road Barrier Capacity and 180kw Power
High Speed 2 Layers Blow Moulding Machine for Road Barrier Capacity and 180kw Power
Specifications
Brand Name :
Huayu
Model Number :
HYBM-road barrier
Certification :
ISO9001 ce
Place of Origin :
CHINA
MOQ :
1 SET
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
40sets/year
Delivery Time :
4months
Packaging Details :
The machine will be disassembled into many parts for container transportation.
capacity :
road barrier
layers :
2 layers
voltage :
as requirement
color :
as requirement
size :
7*5.4*5.2
total power :
180kw
Description

HYBM-Road barrier

High Speed 2 Layers Blow Moulding Machine for Road Barrier Capacity and 180kw Power

1. machine specification

road barrier

 2layers
Capacity rang /
Machine dimension 7*5.4*5.2
Average 100KW
Total power 180KW
Accumulator capacity 18KG
E*truder motor 37KW*2
Screw diameter 90MM*2
Screw L/D ratio 30:1
Plasticizing capacity 200KG/H
Platen size 1000*1200MM
Platen distance 850-2000MM
Clamping force 800KN
Servo motor 28KW

2.machine details

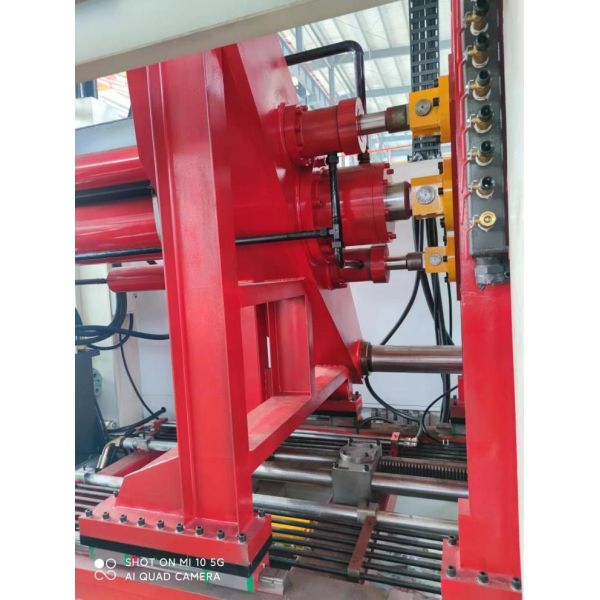

Huayu patented three-cylinder rapid opening and closing mold locking system

High Speed 2 Layers Blow Moulding Machine for Road Barrier Capacity and 180kw Power

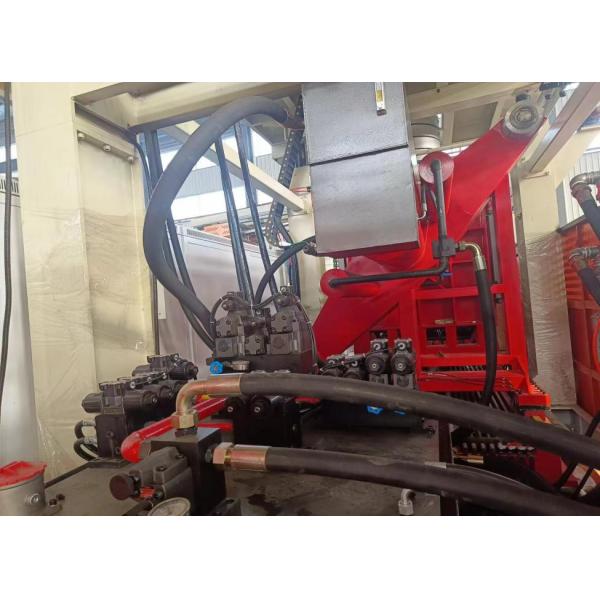

Huayu patented integrated hydraulic station

High Speed 2 Layers Blow Moulding Machine for Road Barrier Capacity and 180kw Power

The world-famous Taiwan Shangyin guide rail has more sliders, more reasonable load bearing and more stable operation

High Speed 2 Layers Blow Moulding Machine for Road Barrier Capacity and 180kw Power

High speed screw

High Speed 2 Layers Blow Moulding Machine for Road Barrier Capacity and 180kw Power

3. company advantage

Experienced Engineer Team, Top Brand Accessories, Strict Quality Control and Certification System, Powerful Machining and Processing Ability, Create the High Quality Huayu Machinery!

In the design and production process of Huayu Hollow Blow Molding Machine, the latest technology and supporting facilities are adopted, such as German SEW reducer, PLC controller, American Muger wall thickness controller, etc., to further optimize the overall performance of the equipment and expand its application fields.

Provide customers with technical guidance and continuous optimization of products for life.
