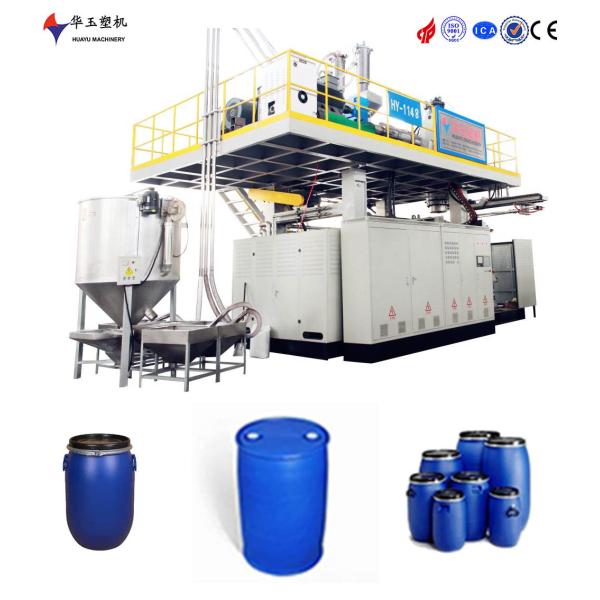

250L Capacity Double-Ring Drum Blow Molding Machine with 30:1 L/D Ratio and Energy-Saving Operation
250L Capacity Double-Ring Drum Blow Molding Machine with 30:1 L/D Ratio and Energy-Saving Operation
250L Capacity Double-Ring Drum Blow Molding Machine with 30:1 L/D Ratio and Energy-Saving Operation
250L Capacity Double-Ring Drum Blow Molding Machine with 30:1 L/D Ratio and Energy-Saving Operation
250L Capacity Double-Ring Drum Blow Molding Machine with 30:1 L/D Ratio and Energy-Saving Operation
250L Capacity Double-Ring Drum Blow Molding Machine with 30:1 L/D Ratio and Energy-Saving Operation
Specifications
Brand Name :
Huayu
Model Number :
HYBM-250L-1
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
L/C,T/T
Supply Ability :
4 sets per month
Delivery Time :
5 months
Packaging Details :
as customer need
Total Power :
260kw
Air Seat Stroke :
400mm
Screw Diameter :
150mm
Feeding Type :
Vacuum Loaded
Parison Control :
MOOG 200point
Platen Size :
1400*1500
Extruder Driving Power :
132kw
Maximum Air Pressure :
0.8Mpa
Durability :
Excellent
Clamping force :
600KN
Hopper Material :
stainless steel
Machine Type :
High Speed Plastic Bottle Making Machine
Description
250L Capacity Double-Ring Drum Blow Molding Machine
Industrial-grade 250L 1-Layer Double-Ring Drum Blow Molding Machine featuring 30:1 L/D ratio and energy-saving operation for high-volume plastic drum production.
Key Advantages
  • High Production Efficiency: Fast cycle times and continuous molding capability deliver 50+ 250L double-ring drums per hour, significantly boosting production output for large-scale manufacturing.
  • Precision Molding Performance: Advanced servo control system and precise die head design ensure uniform wall thickness and consistent double-ring structural dimensions, meeting strict industrial standards.
  • Energy-Saving Operation: Energy-efficient motor and heat recovery technology reduce power consumption by 15-20% compared to traditional machines, cutting long-term operational costs.
  • User-Friendly Operation: Intuitive touch screen HMI with pre-set molding parameters minimizes training time and simplifies daily production adjustments.
  • Durable Equipment Build: High-strength steel frame and wear-resistant components provide a service life of over 10 years with minimal maintenance.
  • Versatile Compatibility: Optimized for 250L 1-layer double-ring drums but adjustable for different plastic materials (HDPE/PP) and similar-sized barrel products.
  • Stable Double-Ring Forming: Dedicated mold and air pressure control unit ensure rings have strong load-bearing capacity without deformation, meeting stacking and transportation requirements.
  • Low Material Waste: Precision material feeding system and optimized parison control reduce plastic scrap rate to less than 3%, lowering raw material costs.
Energy Configuration Specifications
Component Specification
Extruder Driving Power 160kw Independent Air Cooler
Hydraulic Main System Motor Power 35.6KW Huichuan Servo Motor
Wall Thickness Control Motor Power 7.5 KW
Heating Power of Extrusion System 7 pcs * 7KW/pc
Power of Die Heating 7 pcs * 6KW/pc
Air Supply 0.8*6 (MPa * Cubic meter per minute)
Cooling Water Consumption 0.3*20°*30 (MPa * degree * Cubic meter per hour)
Total Power 324.5KW
Average Energy Consumption (AEC) Approximately 180kw per hour
This industrial blow molding machine is engineered for high-volume production of 250L double-ring drums, combining precision engineering with energy-efficient operation for optimal manufacturing performance.
