Specifications
Brand Name :
Huayu
Model Number :
HYBM-1002
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
L/C,T/T
Supply Ability :
4 sets per month
Delivery Time :
5 months
Packaging Details :
by container
Layer :
2 Layers
Average Aonsumption :
480KW
Automation Level :
Semi-automatic / Fully automatic
Machine Dimensions :
Length 4000mm x Width 1500mm x Height 2000mm
Hopper Material :
Stainless steel
Machinetype :
Blow Moulding
Servo Motor :
48KW
Screw Diameter :
90mm*2
Durability :
Excellent
Cooling System :
Water cooling
Thickness Controller :
MOOG
Average Consumption :
190KW
Product Material :
HDPE
Average Energy :
About 200 kw per hour
Description
The Foundation of Quality: Huayu 1000L 2-Layer Blowing Machine

In the realm of industrial blow molding, reliability and cost-efficiency are paramount. Weifang Huayu Plastic Machinery addresses these core needs with its robust 1000L 2-Layer Blow Molding Machine. This model is the cornerstone solution for manufacturers requiring durable, mid-to-large-sized containers, offering the essential benefits of multi-layer technology in a streamlined, highly reliable package. It is the ideal workhorse for industries where consistent quality and productivity are the primary drivers.

Core Strength in Simplicity

The Huayu 1000L 2-layer machine strips multi-layer technology down to its most effective and manageable form. By co-extruding two distinct material layers, it enables fundamental yet crucial container enhancements. The most common application involves combining an inner layer of virgin, food-grade, or chemically resistant material with an outer layer incorporating UV stabilizers, colorants, or regrind. This simple duality provides significant advantages over single-layer containers, including improved product protection, better environmental resistance for outdoor use, and reduced material costs without compromising the container's core functionality.

Engineered for Endurance and Ease

This machine is built with Huayu's signature focus on durability and user-friendly operation. It features a high-efficiency extruder with a precision screw designed for stable melt quality. The hydraulic clamping system delivers reliable, powerful force to handle 1000L molds consistently. Controlled by an intuitive PLC system, operators can easily manage production cycles, ensuring repeatable results and minimizing waste. Its design prioritizes straightforward maintenance and robust performance, making it an exceptionally reliable asset for continuous production environments.

Performance Parameters Table: HY-1000L-2L
Feature / Parameter Specification
Model HY-1000L-2L
Max. Capacity (L) 1000
Number of Layers 2
Screw Diameter (mm) 100 / 100
L/D Ratio 30:1
Clamp Force (kN) 2200
Platen Size (mm) 1600 x 1300
Max. Mold Daylight (mm) 1500
Drive System Frequency Conversion / Servo (Optional)
Control System PLC with Touchscreen Interface
Key Advantages High Reliability, Cost-effective 2-Layer Solution, Easy Operation & Maintenance

Choose the Huayu 1000L 2-layer machine for a perfect balance of foundational multi-layer benefits, operational simplicity, and dependable performance.

Send your message to this supplier
Send Now

Huayu 1000L 2-Layer Blow Molding Machine with PLC and Stainless Steel Hopper

Ask Latest Price
Watch Video
Brand Name :
Huayu
Model Number :
HYBM-1002
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiate
Contact Supplier
video

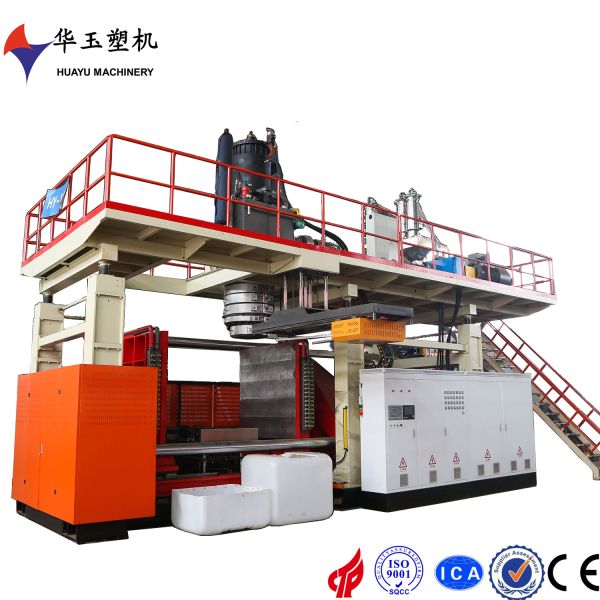

Huayu 1000L 2-Layer Blow Molding Machine with PLC and Stainless Steel Hopper

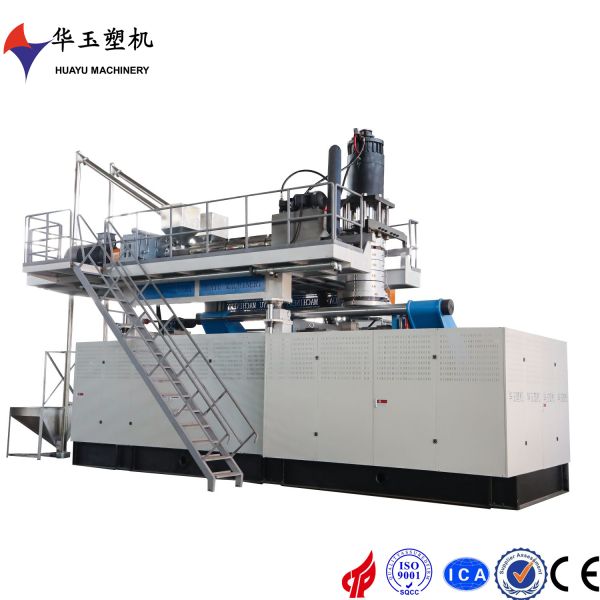

Huayu 1000L 2-Layer Blow Molding Machine with PLC and Stainless Steel Hopper

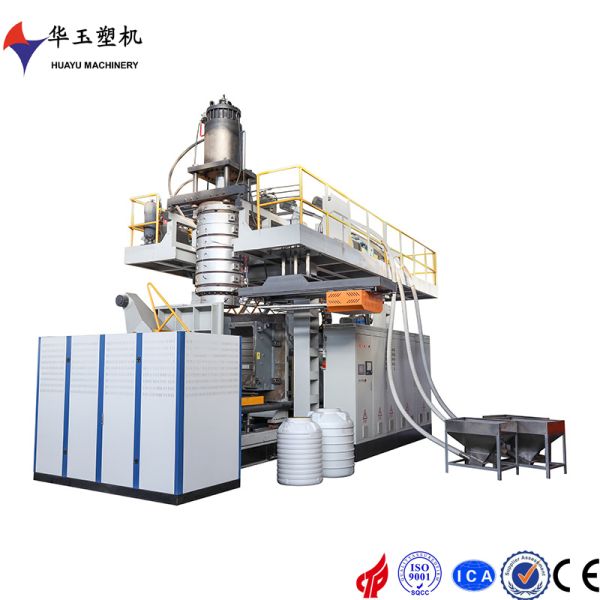

Huayu 1000L 2-Layer Blow Molding Machine with PLC and Stainless Steel Hopper

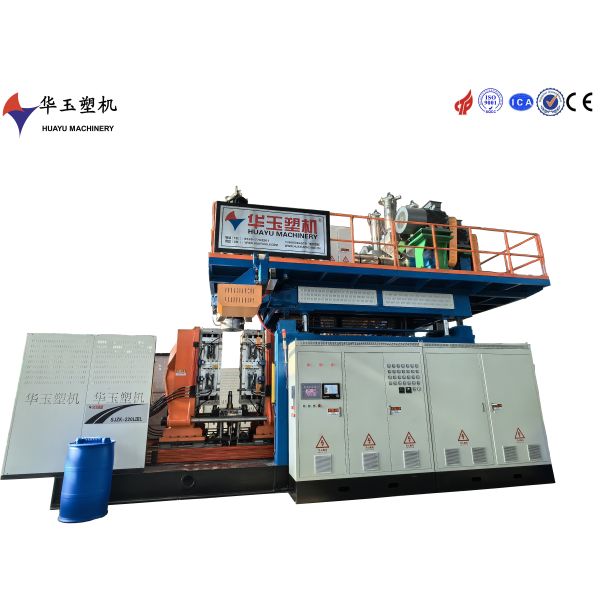

Huayu 1000L 2-Layer Blow Molding Machine with PLC and Stainless Steel Hopper
