MachineU > China Products > Machinery
Huayu 220L HDPE Drum Blow Moulding Machine with PLC
Huayu 220L HDPE Drum Blow Moulding Machine with PLC
Huayu 220L HDPE Drum Blow Moulding Machine with PLC
Huayu 220L HDPE Drum Blow Moulding Machine with PLC
Huayu 220L HDPE Drum Blow Moulding Machine with PLC
Huayu 220L HDPE Drum Blow Moulding Machine with PLC
Huayu 220L HDPE Drum Blow Moulding Machine with PLC
Huayu 220L HDPE Drum Blow Moulding Machine with PLC
Huayu 220L HDPE Drum Blow Moulding Machine with PLC
Huayu 220L HDPE Drum Blow Moulding Machine with PLC
Specifications
Brand Name :
Huayu
Model Number :
HYBM-220L
Certification :
CE,TUV,ISO9001，SGS
Place of Origin :
CHINA
MOQ :
1 SET
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
40sets/year
Delivery Time :
4months
Packaging Details :
The machine will be disassembled into many parts for container transportation.
voltage :
customized
output (kg/h) :
450
screw diameter (mm) :
120
screw l/d ratio :
30
Description

HYBM220L-1layer blow moulding machine

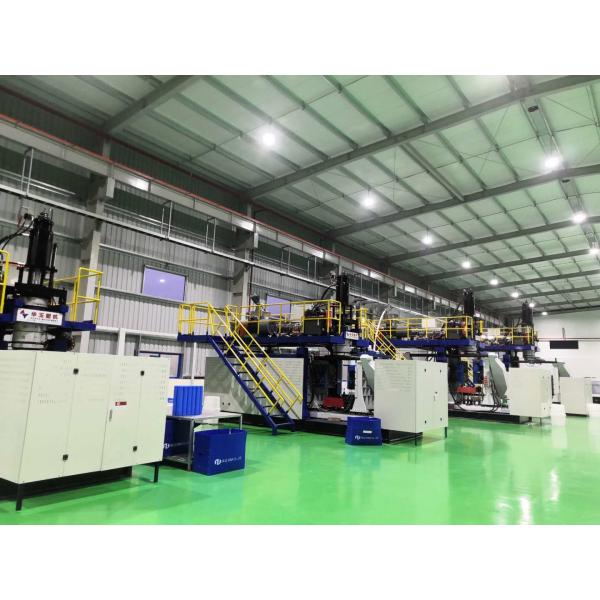

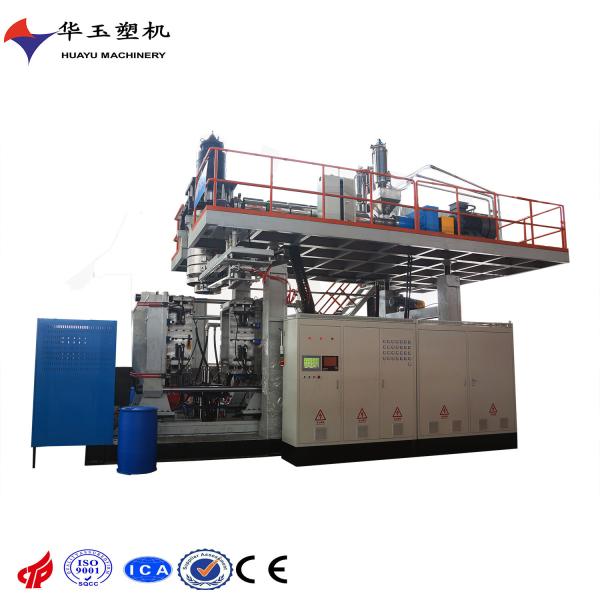

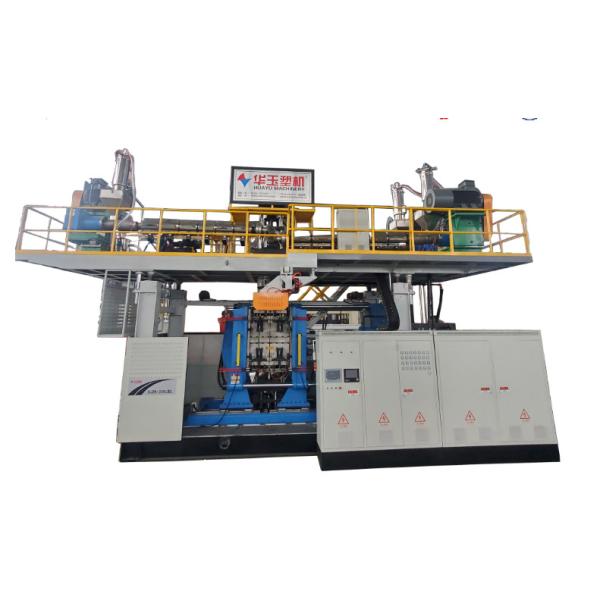

machine photos

Huayu 220L HDPE Drum Blow Moulding Machine with PLC

Huayu 220L HDPE Drum Blow Moulding Machine with PLC

Key attributes

Industry-specific attributes

voltage
380v or customized
clamping force (kn)
1200
output (kg/h)
450

Other attributes

plastic processed
HDPE
automation
Automatic
power (kw)
170
weight (t)
40
warranty
1 Year
video outgoing-inspection
Provided
machinery test report
Provided
core components
PLC, Engine, Bearing, Gearbox, motor, Gear, Pump
place of origin
Shandong, China
brand name
Huayu
dimension(l*w*h)
9*5.8*6.2m
plc brand
screw l/d ratio
35
screw diameter (mm)
110
No. of Screw Heating Zone
12
screw heating power(kw)
66
extruder motor power(kw)
90
mold platen size(width)(mm)
1500
mold platen size(height)(mm)
1600
air pressure(mpa)
0.8
air comsumption(m³/min)
2.3
die head heating power(kw)
50
key selling points
Competitive Price
Name
220L double L ring drum machine
Material
HDPE
Blow Moulding Type
Extrusion Blow Moulding
After-sales Service Provided
Service Machinery Overseas
Parison Control
MOOG 200point
Certification
CE ISO
Advantages
servo motor remote control
Layer
1-3layers
CONTROLLER
PLC+Touch Screen
Hydraulic Valve
Yuken

Huayu 220L HDPE Drum Blow Moulding Machine with PLC

Huayu 220L HDPE Drum Blow Moulding Machine with PLC

Huayu 220L HDPE Drum Blow Moulding Machine with PLC

Huayu 220L HDPE Drum Blow Moulding Machine with PLC

Huayu 220L HDPE Drum Blow Moulding Machine with PLC

Huayu 220L HDPE Drum Blow Moulding Machine with PLC

Huayu 220L HDPE Drum Blow Moulding Machine with PLC

Huayu 220L HDPE Drum Blow Moulding Machine with PLC

Huayu 220L HDPE Drum Blow Moulding Machine with PLC

Huayu 220L HDPE Drum Blow Moulding Machine with PLC

Huayu 220L HDPE Drum Blow Moulding Machine with PLC

Huayu 220L HDPE Drum Blow Moulding Machine with PLC

Huayu 220L HDPE Drum Blow Moulding Machine with PLC

Huayu 220L HDPE Drum Blow Moulding Machine with PLC

Huayu 220L HDPE Drum Blow Moulding Machine with PLC

Huayu 220L HDPE Drum Blow Moulding Machine with PLC

Huayu 220L HDPE Drum Blow Moulding Machine with PLC

Huayu 220L HDPE Drum Blow Moulding Machine with PLC

Huayu 220L HDPE Drum Blow Moulding Machine with PLC

Huayu 220L HDPE Drum Blow Moulding Machine with PLC

Huayu 220L HDPE Drum Blow Moulding Machine with PLC

Huayu 220L HDPE Drum Blow Moulding Machine with PLC
