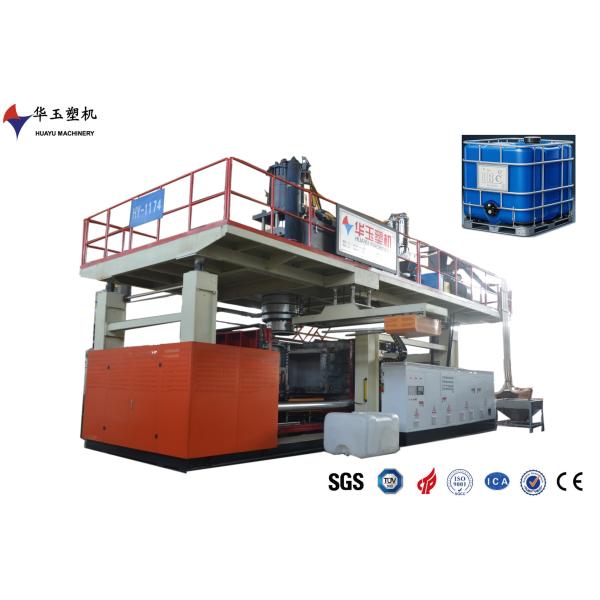

3-Layer 1000L IBC Blow Molding Machine with High-Precision Molding and Efficient Production Workflow
3-Layer 1000L IBC Blow Molding Machine with High-Precision Molding and Efficient Production Workflow
3-Layer 1000L IBC Blow Molding Machine with High-Precision Molding and Efficient Production Workflow
3-Layer 1000L IBC Blow Molding Machine with High-Precision Molding and Efficient Production Workflow
3-Layer 1000L IBC Blow Molding Machine with High-Precision Molding and Efficient Production Workflow
3-Layer 1000L IBC Blow Molding Machine with High-Precision Molding and Efficient Production Workflow
3-Layer 1000L IBC Blow Molding Machine with High-Precision Molding and Efficient Production Workflow
3-Layer 1000L IBC Blow Molding Machine with High-Precision Molding and Efficient Production Workflow
Specifications
Brand Name :
HUAYU
Model Number :
HYBM-1003
Certification :
ISO9001 CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
200000 USD
Payment Terms :
L/C,T/T
Supply Ability :
1SET 120DAYS
Delivery Time :
4 MONTHS
Packaging Details :
be disassembled into many parts for container transportation
Voltage :
Pending
total power :
276kw
average power :
165kw
Machine dimension (L*W*H) :
6.5*4.5*5.2
productivity :
15-30pcs/h
Screw diameter :
90/100/90mm
Screw L/D ratio :
30:1
Accumulator capacity :
12kg
maximum air pressure :
0.8Mpa
air consumption :
1.0m3/min
Description
3-Layer 1000L IBC Blow Molding Machine: Engineering Superiority
Advanced tri-layer structural design ensures exceptional durability and superior barrier performance for 1000L IBC containers, engineered for demanding industrial storage and transportation applications.
Key Features & Benefits
  • Tri-layer structural design provides exceptional durability and superior barrier performance for demanding industrial applications
  • High-precision molding system ensures consistent wall thickness and dimensional accuracy, minimizing material waste
  • Efficient production workflow reduces cycle times while maintaining premium quality standards
  • Robust industrial-grade construction withstands continuous heavy-duty operation with minimal downtime
  • Versatile material compatibility enables flexible production for diverse industry requirements
  • Intuitive operation interface simplifies setup and control, enhancing operator efficiency
Technical Specifications
Hydraulic System
Main Oil Tank Capacity 600L
Main Oil Pump 80cc
Main Oil Pump Motor 30
Servo Oil Tank Capacity 150
Servo Oil Pump Model 18
Servo Oil Pump Motor 5.5
Electronic System
Main Operation Panel Touch Screen 9"
Control System PLC
Thickness Control Points 100 points
Temperature Control PLC Module
