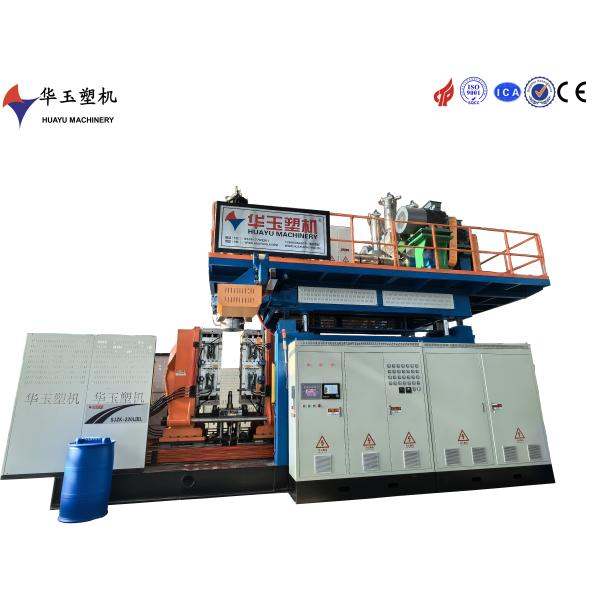

High-End Double-Ring Barrel Blow Molding Equipment with Triple-Reinforced Ring Structure and High-Precision Mold Clamping System for Energy-Efficient Production
High-End Double-Ring Barrel Blow Molding Equipment with Triple-Reinforced Ring Structure and High-Precision Mold Clamping System for Energy-Efficient Production
High-End Double-Ring Barrel Blow Molding Equipment with Triple-Reinforced Ring Structure and High-Precision Mold Clamping System for Energy-Efficient Production
High-End Double-Ring Barrel Blow Molding Equipment with Triple-Reinforced Ring Structure and High-Precision Mold Clamping System for Energy-Efficient Production
High-End Double-Ring Barrel Blow Molding Equipment with Triple-Reinforced Ring Structure and High-Precision Mold Clamping System for Energy-Efficient Production
High-End Double-Ring Barrel Blow Molding Equipment with Triple-Reinforced Ring Structure and High-Precision Mold Clamping System for Energy-Efficient Production
High-End Double-Ring Barrel Blow Molding Equipment with Triple-Reinforced Ring Structure and High-Precision Mold Clamping System for Energy-Efficient Production
High-End Double-Ring Barrel Blow Molding Equipment with Triple-Reinforced Ring Structure and High-Precision Mold Clamping System for Energy-Efficient Production
Specifications
Brand Name :
HUAYU
Model Number :
HYBM-220-3
Certification :
ISO9001 CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
280000 USD
Payment Terms :
L/C,T/T
Supply Ability :
1SET 120DAYS
Delivery Time :
4 MONTHS
Packaging Details :
be disassembled into many parts for container transportation
Voltage :
Pending
total power :
390kw
average power :
180kw
Machine dimension (L*W*H) :
7.5*5.5*6
productivity :
20pcs/h
Screw diameter :
90/100/90mm
Screw L/D ratio :
30：1
Accumulator capacity :
20kg
maximum air pressure :
0.8Mpa
air consumption :
2.4
Description
High-End Double-Ring Barrel Blow Molding Equipment
Key Features & Benefits
  • Triple-reinforced ring structure ensures superior load-bearing capacity and impact resistance for heavy-duty applications
  • High-precision mold clamping system guarantees consistent wall thickness and eliminates defects
  • Optimized blow molding cycle significantly reduces production time while maintaining quality
  • Robust industrial-grade frame supports continuous 24/7 operation with minimal downtime
  • Flexible material compatibility enables production of double-ring drums for diverse industry needs
  • Intuitive operation interface simplifies setup and reduces operator training requirements
  • Energy-efficient drive system reduces power consumption for cost-effective mass production
  • Integrated automatic trimming function streamlines workflow and reduces labor input
Hydraulic System Specifications
Main Oil Tank Capacity 890L Servo motor, less energy consumption, high efficiency, low noise
Main Oil Pump Gear Pump 125CC
Main Oil Pump Motor 37kW
Servo Oil Tank Capacity 200L
Servo Oil Pump Model Plunger Pump 22
Servo Oil Pump Motor 7.5kW
Electronic System Specifications
Main Operation Panel Touch Screen 12"
Control System PLC
Thickness Control Points 200 Points
Temperature Control PLC Module
