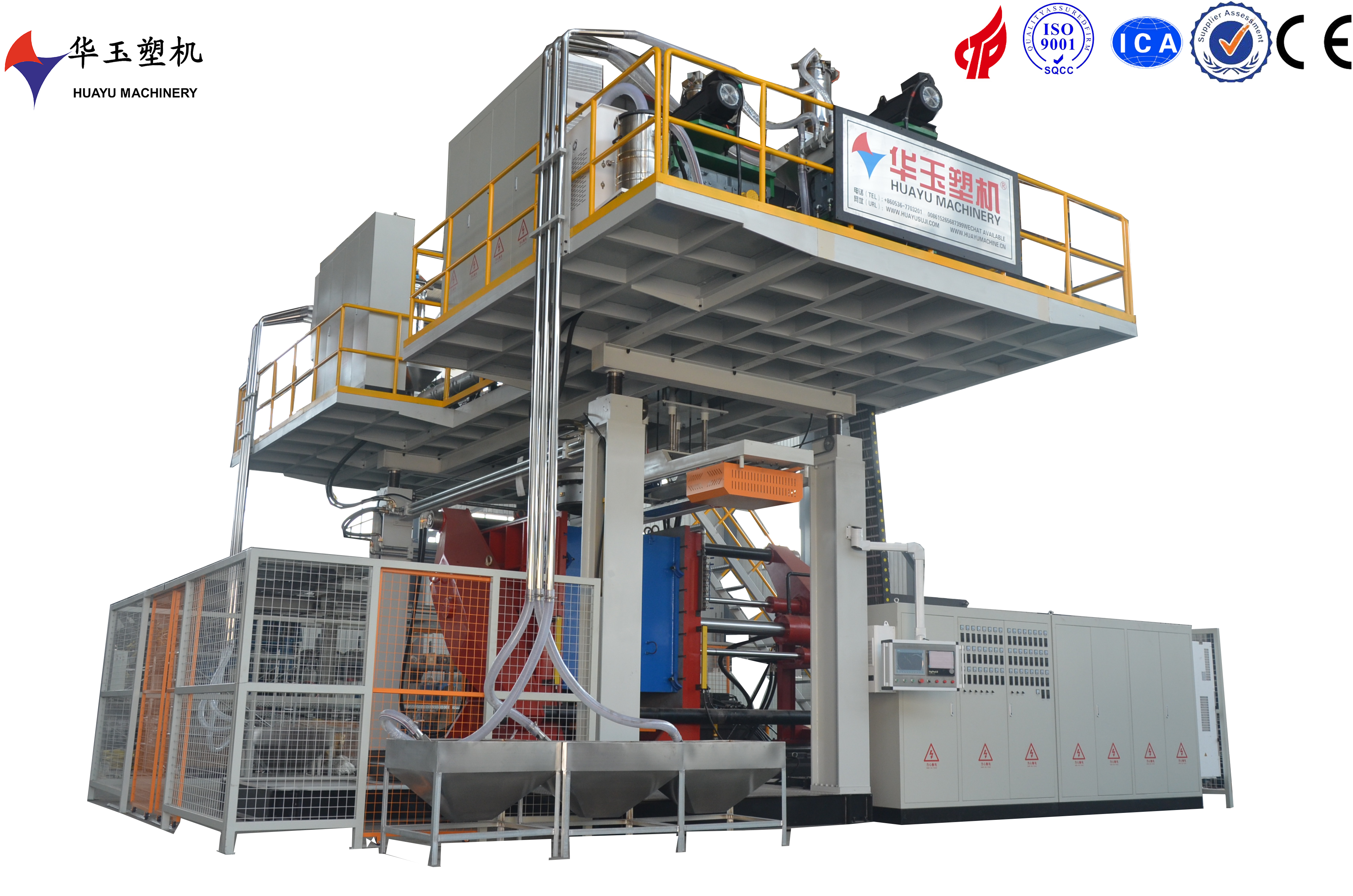

1000L Seven-Layer IBC Blow Molding Machine with PLC Control for Superior Barrier Containers
1000L Seven-Layer IBC Blow Molding Machine with PLC Control for Superior Barrier Containers
Specifications
Brand Name :
Huayu
Model Number :
HYBM-1007
Certification :
CE,ISO9001
Place of Origin :
Weifang
MOQ :
1 set
Price :
negotiate
Payment Terms :
L/C,T/T
Supply Ability :
5 sets per month
Delivery Time :
5 months
Packaging Details :
container
Controlsystem :
PLC with Touch Screen
Heating System :
Induction heating
Recyclability :
Recyclable
Layers :
7 LAYERS
Advantages :
20 Years Experiences
Average Aonsumption :
385KW
Extrudor Motor :
45*7
Voltage :
380V/50HZ
Feeding Type :
spring loaded
Screw Barrel Material :
38CrMoAlA，Nitriding
Description



1000L Seven-Layer IBC Blow Molding Machine with PLC Control for Superior Barrier Containers

The 1000L seven-layer blow molding machine represents the pinnacle of container manufacturing technology, enabling the production of superior barrier containers​ for the most demanding applications, including automotive fuel systems, hazardous chemical packaging, and sensitive food products.


These state-of-the-art systems utilize seven independent extruders​ arranged in a precise configuration to feed different material types into a sophisticated multi-layer die head​ that creates a perfectly layered parison with exceptional precision. Each extruder features specialized screw designs optimized for specific materials, with advanced grooved barrel sections ensuring stable extrusion and homogeneous melting .


These advanced machines require substantial power (typically 385-585 kW) and incorporate sophisticated temperature control systems maintaining ±1°C accuracy across all heating zones. The key technological component is the hepta-layer die head​ with sophisticated flow channels that maintain perfect layer separation until parison formation. The control system integrates industrial PCs​ with high-resolution touchscreen interfaces​ that allow operators to monitor and adjust each layer's parameters with exceptional precision, including temperature profiles, extrusion speeds, and individual layer thickness ratios .



Basic Specification

applicable material

HDPE


China·HUAYU

capacity range

200-1000L,7layers

Voltage

Pending

total power

585kw

average power

385kw

Machine dimension (L*W*H)

8*9*6.5

productivity

16-25pcs/h

Auto Feeder

hopper material

stainless steel

Stable performance, easy maintenance

feeding type

vacuum loaded

feeding motor

11kw

Extrusion System

Screw diameter

90mm*7

Nitrided 38CrMoAIA

Screw L/D ratio

28:1

special designed screw can ensure the material plasticizing uniform and efficient

Extruder motor

45kw*7

Reducer

250*7

Best quality brand in china ,long life and low noise

Screw heating power

4.4kw*28

Plasticizing capacity

560kg/h
