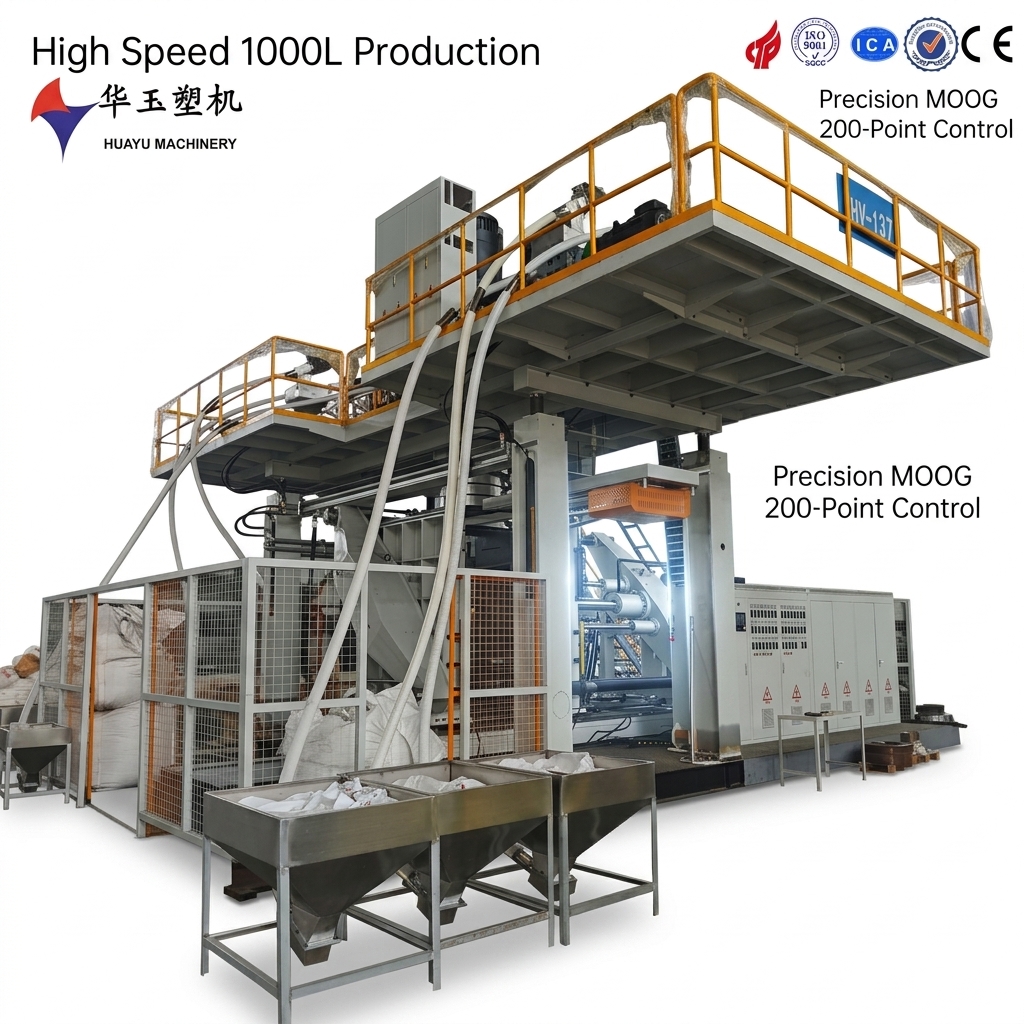

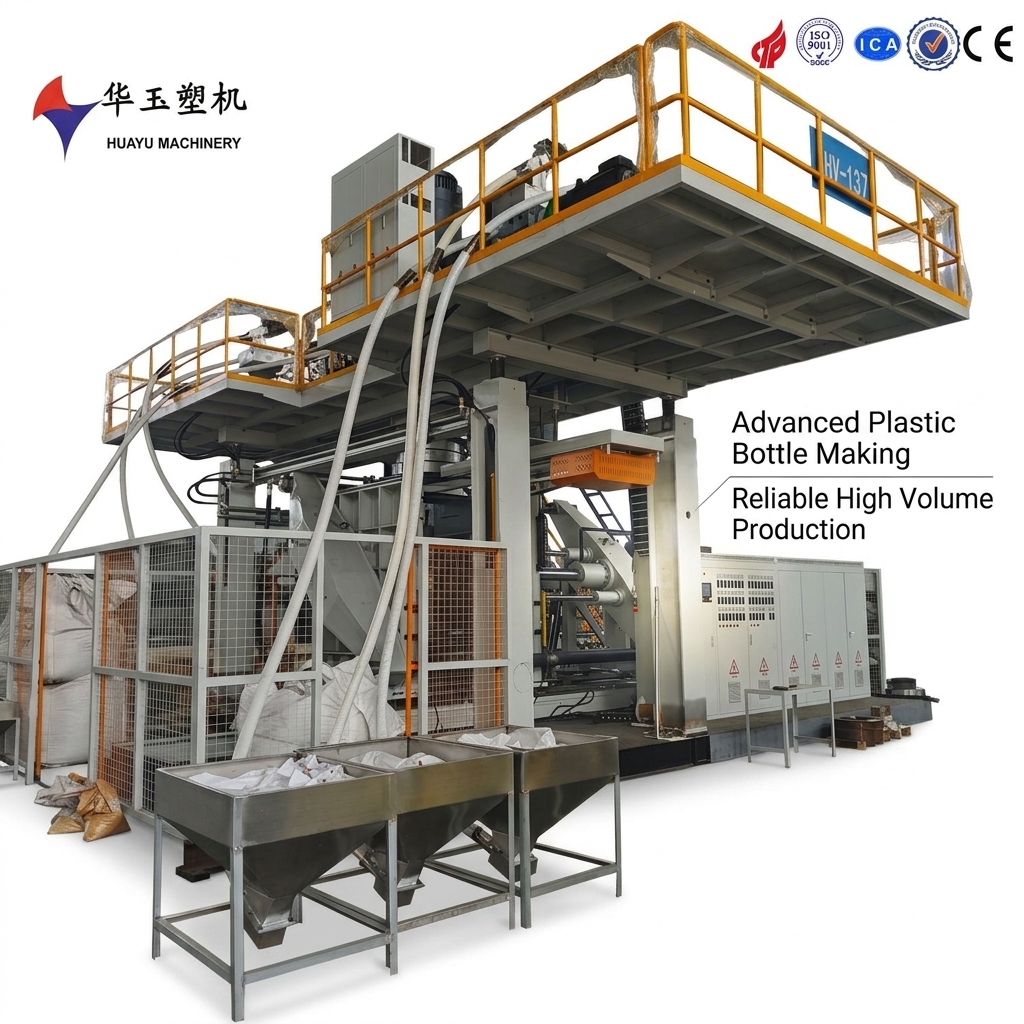

Huayu 5000L 6-Layer Barrier Co-Extrusion Water Tank Blow Moulding Machine Chemical Liquid Storage Servo Motor Drive
Huayu 5000L 6-Layer Barrier Co-Extrusion Water Tank Blow Moulding Machine Chemical Liquid Storage Servo Motor Drive
Huayu 5000L 6-Layer Barrier Co-Extrusion Water Tank Blow Moulding Machine Chemical Liquid Storage Servo Motor Drive
Huayu 5000L 6-Layer Barrier Co-Extrusion Water Tank Blow Moulding Machine Chemical Liquid Storage Servo Motor Drive
Huayu 5000L 6-Layer Barrier Co-Extrusion Water Tank Blow Moulding Machine Chemical Liquid Storage Servo Motor Drive
Huayu 5000L 6-Layer Barrier Co-Extrusion Water Tank Blow Moulding Machine Chemical Liquid Storage Servo Motor Drive
Huayu 5000L 6-Layer Barrier Co-Extrusion Water Tank Blow Moulding Machine Chemical Liquid Storage Servo Motor Drive
Huayu 5000L 6-Layer Barrier Co-Extrusion Water Tank Blow Moulding Machine Chemical Liquid Storage Servo Motor Drive
Specifications
Model Number :
HYBM-5006
Displacement Pickup :
Jefran
Price :
Negotiate
Gear Box :
Guomao
Supply Ability :
4 sets per month
Blow Moulding Type :
Extrusion Blow Moulding
Brand Name :
Huayu
Distance Between Platens :
1400-3800mm
Payment Terms :
L/C,T/T
Gear Pimp :
Japan 185cc double pump
Applicable Material :
HDPE
MOQ :
1 set
Delivery Time :
120 Days
Layers :
6 LAYERS
Certification :
CE, ISO 9001
Mould Material :
Aluminum
Packaging Details :
by container
Clamping Cylinder :
320+160*2
Thickness Control Points :
200points
Productivity :
8-20pcs/h
Place of Origin :
China
Extruder Motor :
90/110/90kw
Total Power :
690KW
Description

Advanced Barrier Technology for Middle East's Petrochemical & Water Storage Industries

The Huayu HYBM5000L-6 is a premium 5000L six-layer barrier co-extrusion blow moulding machine purpose-built for the Middle East's demanding petrochemical, industrial chemical, and large-scale water storage sectors. Featuring servo motor drive technology and advanced six-layer co-extrusion, this machine delivers exceptional barrier performance against aggressive chemicals, oils, and solvents.

Technical Specifications

Material HDPE Layers 6 (Co-Extrusion)
Capacity Range 1000–5000L Productivity 4–16 pcs/h
Total Power 750 KW Average Power 460 KW
Screw Diameter 100 mm * 6 Screw L/D Ratio 28:1
Plasticizing Capacity 900 kg/h Accumulator Capacity 180 kg
Clamping Force 3500 KN Thickness Control MOOG 200 Points
Machine Dimension 11*9*9 m Drive System Servo Motor

Engineered for Middle East Industrial Demands

  • Six-Layer Barrier Co-Extrusion: Superior chemical permeation resistance with EVOH/PA barrier layers. Reduces oxygen permeability by over 90%—critical for petrochemical downstream storage.
  • Servo Motor Efficiency: Reduces energy consumption by 30% compared to conventional hydraulic systems while maintaining 24/7 heavy-duty operation capability.
  • High-Temperature Resilience: Robust stainless steel components and industrial-grade cooling system maintain stable operation even in ambient temperatures exceeding 45°C.
  • Mega-Project Ready: 3500 KN clamping force and 180 kg accumulator deliver consistent large-container production for government infrastructure and oil & gas projects.
  • Dedicated After-Sales Support: On-site installation, operator training, and 12-month warranty with remote diagnostics included.

About Huayu

Weifang Huayu Plastic Machinery Co., Ltd., established in 2002, specializes in large automatic blow moulding machines from 1 to 10 layers. With CE and ISO9001 certifications, exports to 80+ countries, and 100+ patents, Huayu is your trusted partner for industrial blow moulding solutions.
