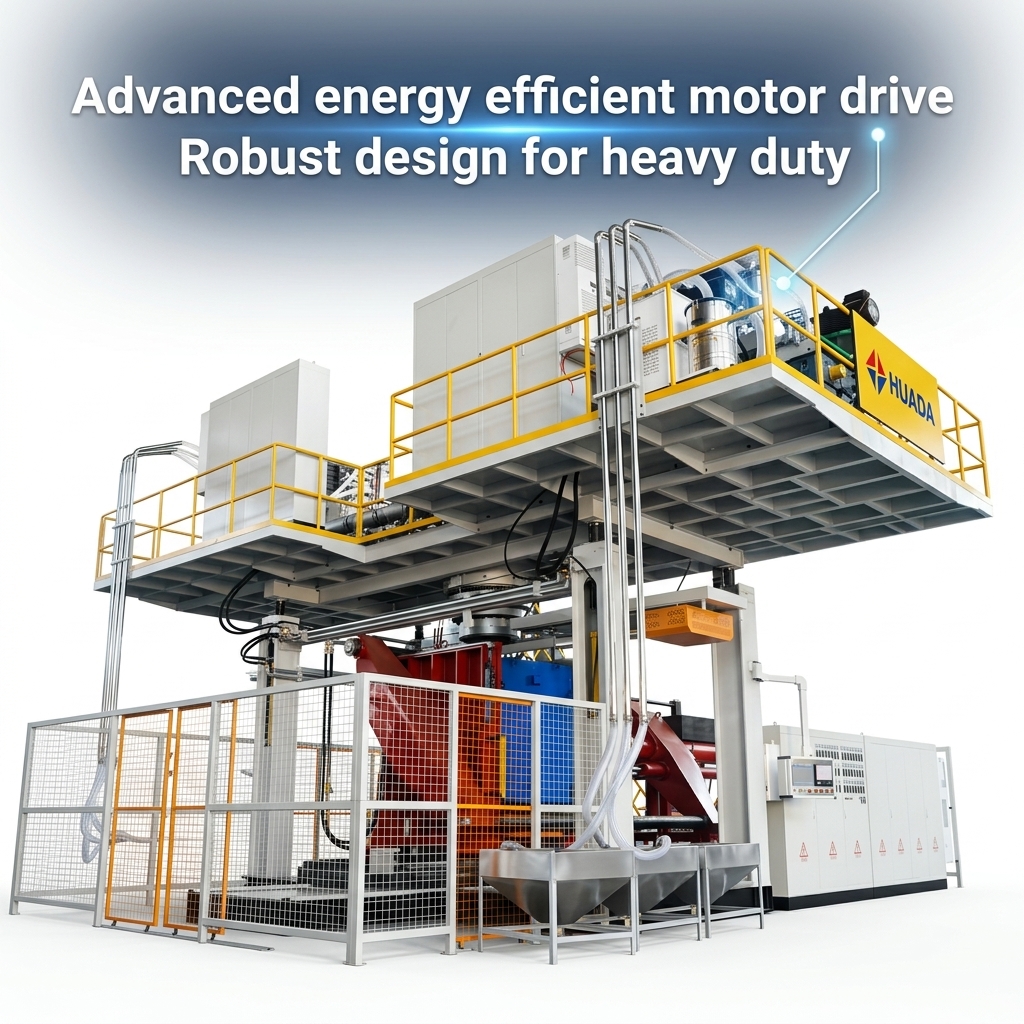

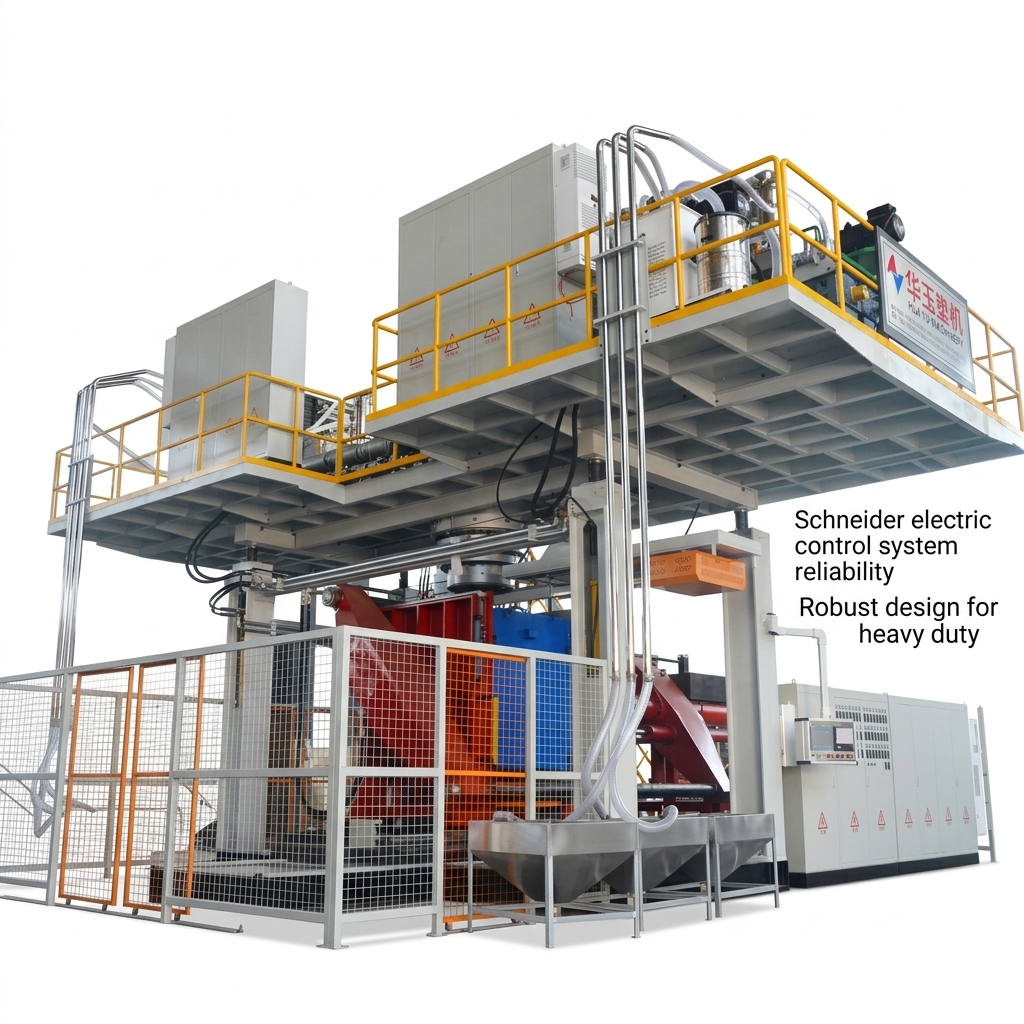

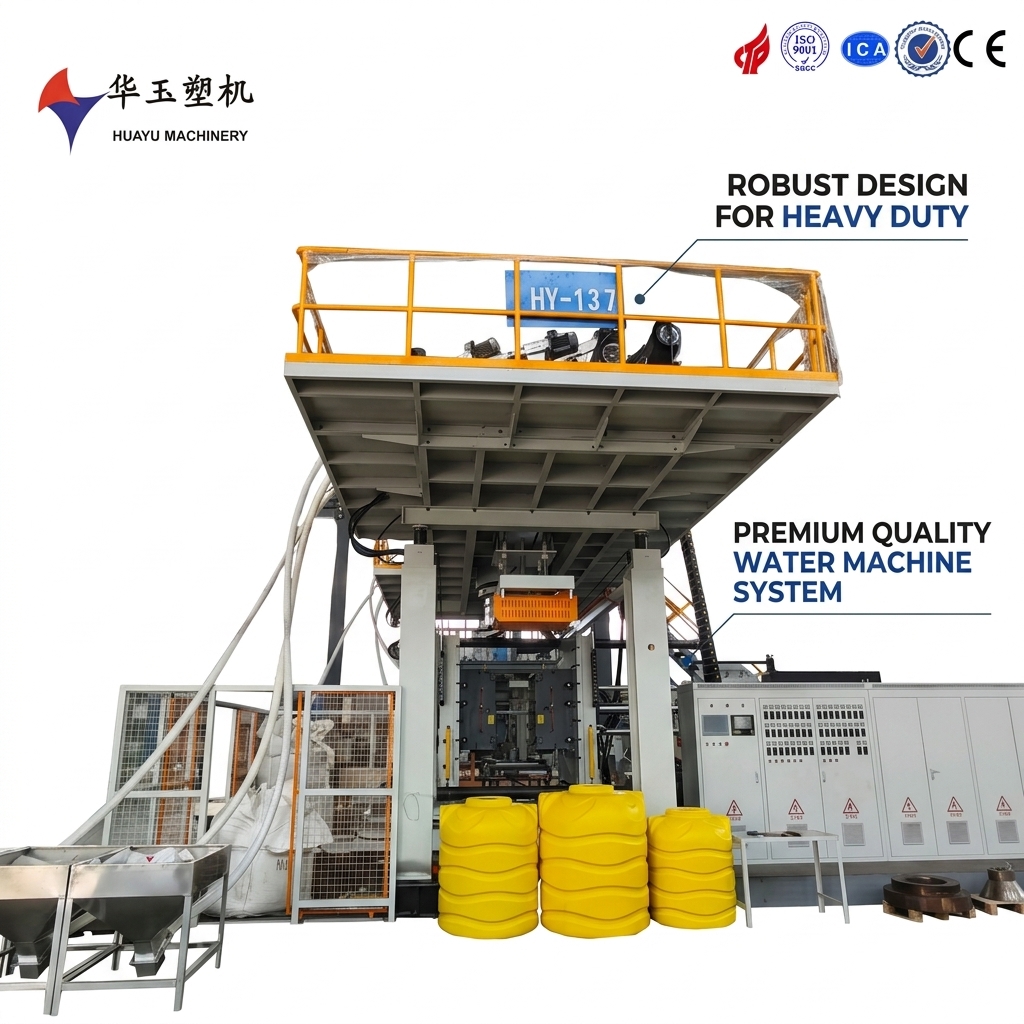

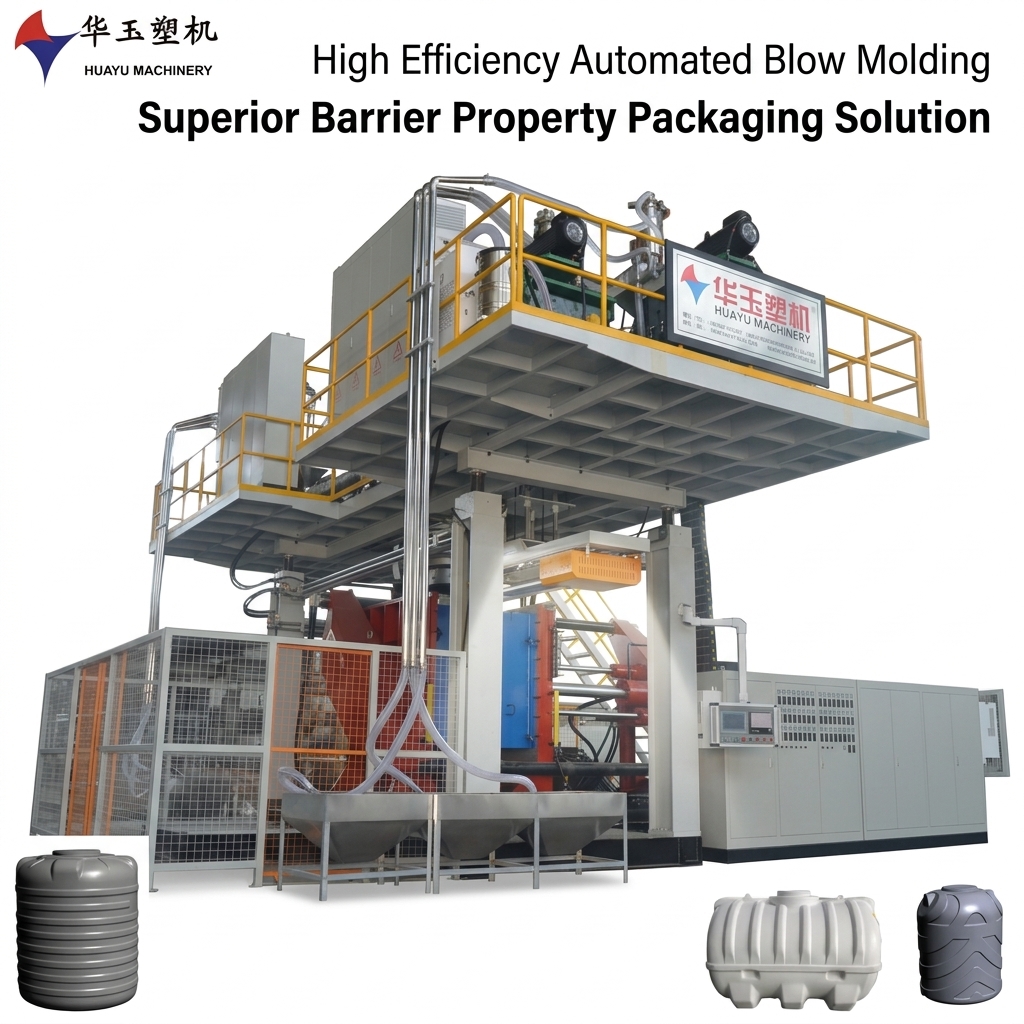

200-500L Water Tank Blow Moulding Machine
200-500L Water Tank Blow Moulding Machine
200-500L Water Tank Blow Moulding Machine
200-500L Water Tank Blow Moulding Machine
200-500L Water Tank Blow Moulding Machine
200-500L Water Tank Blow Moulding Machine
200-500L Water Tank Blow Moulding Machine
200-500L Water Tank Blow Moulding Machine
Specifications
Advantages :
24 Years Experiences
Layers :
2 layers
Delivery Time :
4 months
Mould Material :
Aluminum
Blow Moulding Type :
Extrusion Blow Moulding
Model Number :
HYBM-500L
Power Supply :
380V, 50Hz, 3-phase
Productivity :
16-25PCS/H
Application :
plastic product
Platen Size :
1500*1700*70
Condition :
New
MOQ :
1 Set
Showroom Location :
None
Supply Ability :
4 sets per Month
Certification :
CE, ISO 9001
Price :
Negotiate
Packaging Details :
by container
Brand Name :
Huayu
Place of Origin :
China
Screw Heating Power :
5.5kw*10
Payment Terms :
T/T,L/C
Type :
Extrusion Blow Molding Equipment
Description

The HYBM-500 is a quick mold change flexible production blow moulding machine engineered for Latin American tank manufacturers who serve diverse end markets from a single machine platform.

The Latin American water tank market is characterized by extreme product diversity, with each country, region, and market segment specifying different tank capacities, colors, wall thickness requirements, and fitting configurations.

A manufacturer in São Paulo, Bogotá, or Mexico City may need to produce 200L tanks for residential rooftop storage in the morning, 350L tanks for agricultural sprayer applications by midday, and 500L tanks for commercial building water storage in the afternoon shift.

Traditional blow moulding machines with bolted mold mounting systems require 4 to 6 hours for a complete size changeover, effectively dedicating the machine to a single tank size per day and forcing manufacturers to either maintain excess finished goods inventory or lose sales opportunities.

The HYBM-500 eliminates this bottleneck through a hydraulic quick-clamping system with spring-loaded wedge locks and integrated laser alignment guides that reduces complete mold changeover time to under 25 minutes using standard hand tools.

The control system stores 50 recipe programs, each containing the full parameter set for a specific tank size and configuration, enabling one-touch recipe loading that automatically configures all process parameters.

Technical Specifications
Parameter Specification
Product Volume Range 200L - 500L
Screw Diameter 80 mm
Screw L/D Ratio 30:1
Clamping Force 380 kN
Extrusion Capacity (HDPE) 170 kg/h
Drive Motor Power 45 kW
Heating Power 20 kW
Accumulator Head Volume 8 Liters
Mold Platen Size 850 mm x 750 mm
Mold Change Time ≤25 minutes
Recipe Memory 50 Programs
Hourly Output Range 10 - 22 tanks/hr
