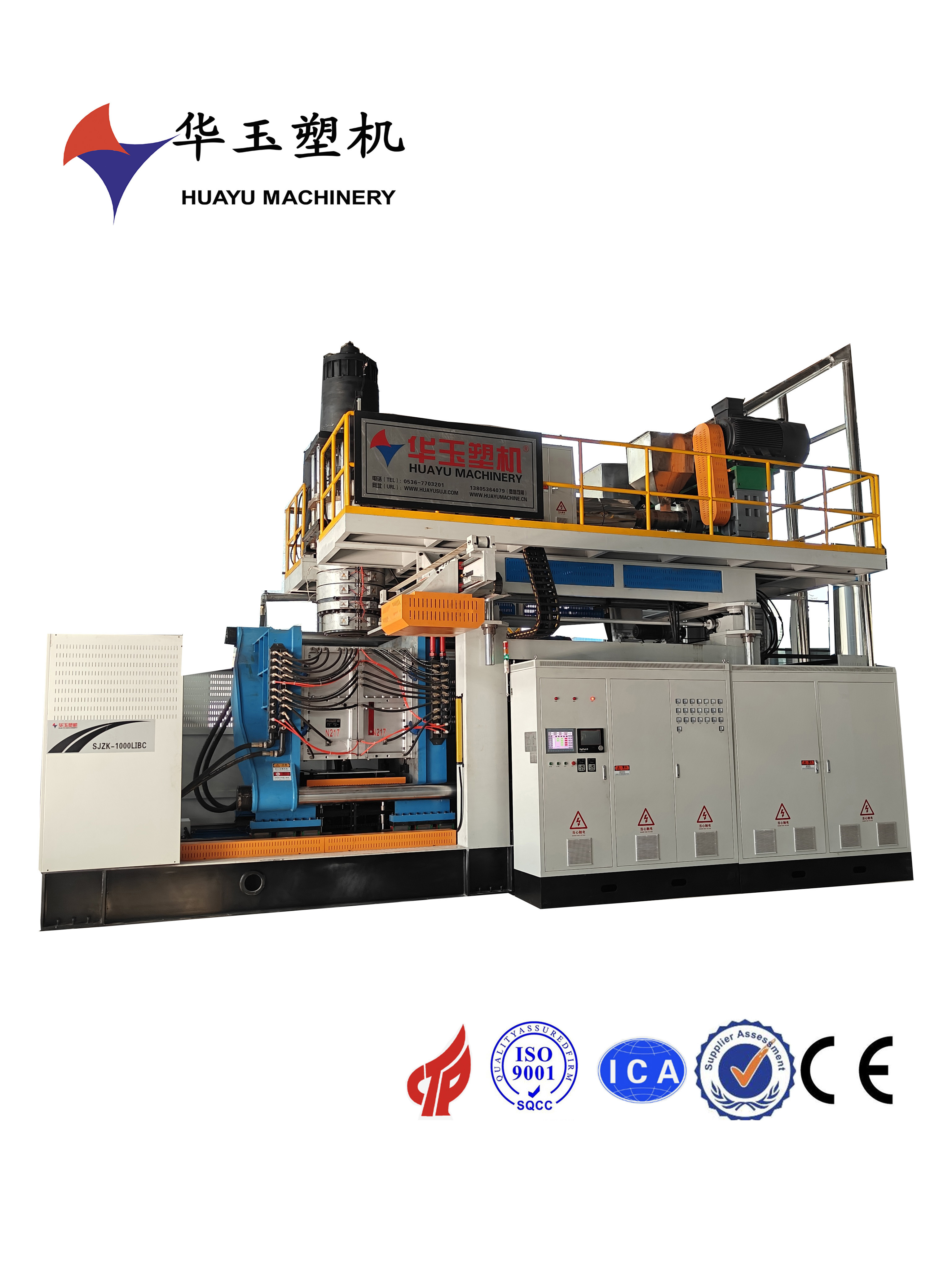

1000L Ten-Layer Co-Extrusion Blow Molding Machine
1000L Ten-Layer Co-Extrusion Blow Molding Machine
Specifications
Supply Ability :
4 sets per month
Parison :
MOOG 200point
Total Power :
760kw
Capacity Range :
1000L
Model Number :
HYBM-1000-10
Temperature Control :
Modular temperature control
Machineweight :
3500 kg
MOQ :
1 set
Delivery Time :
4 months
Die Head Heating :
180KW
Payment Terms :
L/C,T/T
Output :
4--18PCS/h
Productname :
IBC Blow Moulding Machine
Price :
Negotiate
Screw Material :
38CrMoAlA，Nitriding
Controlsystem :
PLC with Touch Screen
Productioncapacity :
Up to 1200 IBCs per day
Certification :
CE,ISO9001
Place of Origin :
Weifang
Product Material :
HDPE
Packaging Details :
by container
Mouldcavities :
1-4
Brand Name :
Huayu
Weight :
69Ton
Description
The 1000L ten-layer co-extrusion blow molding machine is a top-tier ultra-high-precision multi-layer blow molding equipment in the industry, adopting ten-extruder full-independent synchronous co-extrusion technology. It realizes ten-level refined functional layered molding, integrating anti-aging, anti-impact, multi-stage bonding, dual high-efficiency barrier, anti-corrosion, sanitary contact and recycling cost reduction functions in one structure.

This equipment is exclusive to ultra-high-end special industrial fields such as aerospace auxiliary materials, high-purity pharmaceutical raw materials, ultra-corrosive chemical reagents and precision electronic chemical packaging.

The ten-layer structure achieves the ultimate refinement of container functional layers. Each layer is independently configured with special functional resins, realizing precise matching of multiple performances.

The outer multi-layer protective structure enhances outdoor weather resistance and mechanical strength; the multi-stage gradient bonding layers eliminate all hidden dangers of layer separation; the multi-group composite high-barrier layers form a multi-dimensional anti-permeation system, completely blocking the penetration of oxygen, water vapor, organic solvents and corrosive media; the inner high-purity functional layer meets the ultra-clean packaging standards of medical and electronic-grade materials; the bottom recycling layer realizes green and low-cost production. This layered design breaks through the performance ceiling of conventional multi-layer equipment.

The equipment is equipped with an industrial-grade ten-layer ultra-precision die head and full servo synchronous linkage system, with extremely high layer ratio stability and wall thickness uniformity. The ten-group independent professional plasticization system is adapted to the precise processing of various high-end special resins, ensuring no performance loss of functional materials. The intelligent temperature and pressure dual-control system realizes zero-defect molding of large containers, with top-level product precision and stability in the industry.

The core technical parameters of the 1000L ten-layer co-extrusion blow molding machine are shown in the table:
Technical Item
Parameter Value
Unit
Maximum Product Volume
1000
L
Screw Specification
75*10
mm
Total Plasticizing Capacity
420-520
kg/h
Dry Cycle Efficiency
150
Pc/h
Single Extruder Power
30
kW


As the top configuration of large-scale multi-layer blow molding equipment, the ten-layer machine has unparalleled comprehensive performance. It can meet the ultra-strict packaging and storage requirements of high-end special industries, and is irreplaceable in high-precision and high-barrier container manufacturing.

With the upgrading of industrial high-end manufacturing standards, this ultra-high-end ten-layer equipment has broad application prospects in the fields of aerospace, biomedicine and precision chemical industry.
