Hydraulic Truck Mounted Crane Shacman M3000 14ton 16ton Construction Service Truck Crane
Hydraulic Truck Mounted Crane Shacman M3000 14ton 16ton Construction Service Truck Crane
Hydraulic Truck Mounted Crane Shacman M3000 14ton 16ton Construction Service Truck Crane
Hydraulic Truck Mounted Crane Shacman M3000 14ton 16ton Construction Service Truck Crane
Hydraulic Truck Mounted Crane Shacman M3000 14ton 16ton Construction Service Truck Crane
Hydraulic Truck Mounted Crane Shacman M3000 14ton 16ton Construction Service Truck Crane
Hydraulic Truck Mounted Crane Shacman M3000 14ton 16ton Construction Service Truck Crane
Hydraulic Truck Mounted Crane Shacman M3000 14ton 16ton Construction Service Truck Crane
Hydraulic Truck Mounted Crane Shacman M3000 14ton 16ton Construction Service Truck Crane
Hydraulic Truck Mounted Crane Shacman M3000 14ton 16ton Construction Service Truck Crane
Hydraulic Truck Mounted Crane Shacman M3000 14ton 16ton Construction Service Truck Crane
Hydraulic Truck Mounted Crane Shacman M3000 14ton 16ton Construction Service Truck Crane
Specifications
MOQ :
1
Model NO. :
CLW5089SCD
Chassis Brand :
Dongfeng, Sinotruk HOWO, Foton, FAW, JAC, Jmc, Isu
Transport Package :
Naked, Waxed, Bulk Ship, RO-RO
Crane Jib :
Four-Arm
Specification :
12ton, 14ton, 16ton, 18ton
Crane Brand :
S-Any, Clw, etc.
Origin :
Suizhou, China
Cargo Material :
Q235 Carbon Steel
Name :
Truck Mounted Crane
Price :
15000-35000 per unit
Shaft Number :
4
Certification :
ISO 3C
Trademark :
CLW
Place of Origin :
CHINA
Crane Boom Type :
Straight Telescopic Crane, Knuckle Crane
Model Number :
CLW
Gearbox :
12forwards & 1reverse
Cargo Thickness :
Side 1.5mm, Bottom 2.5mm
Crane Capacity :
12ton, 14ton, 16ton, 18ton, etc.
Boom Type :
Straight 4-Arm Telescopic Boom
Payment Terms :
50% Deposit,Balance should be paid before ship out
Maximum Lifting Weight :
14-16t
Type :
Straight Arm
Production Capacity :
500 Unit/Month
Supply Ability :
10unit per month
Maximum Lifting Height :
15-20m
HS Code :
8705909990
Brand Name :
CLW
Engine Brand :
Huaichai, 336HP
Condition :
New
Description

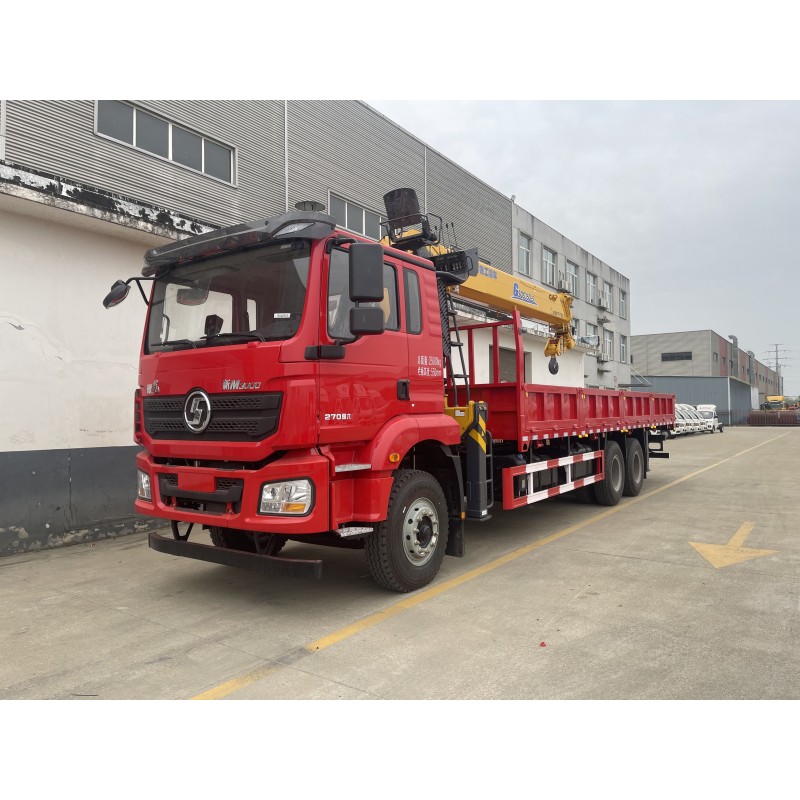

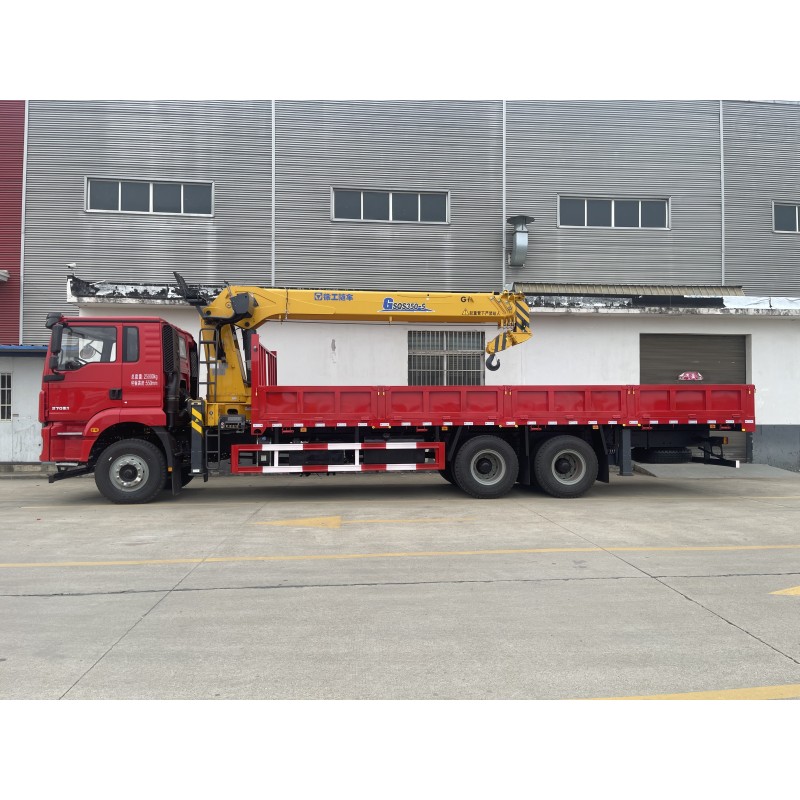

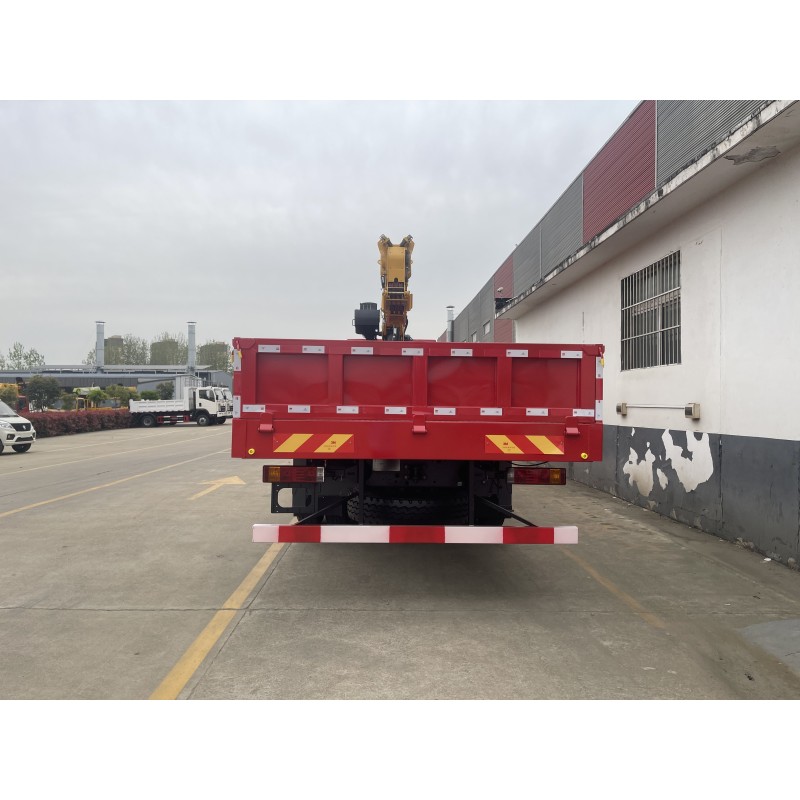

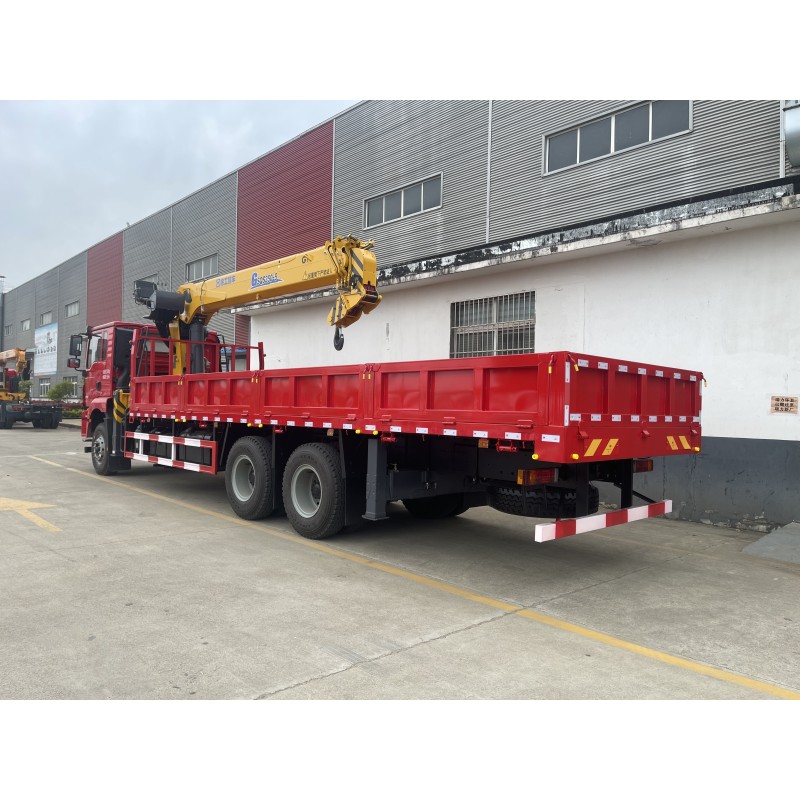

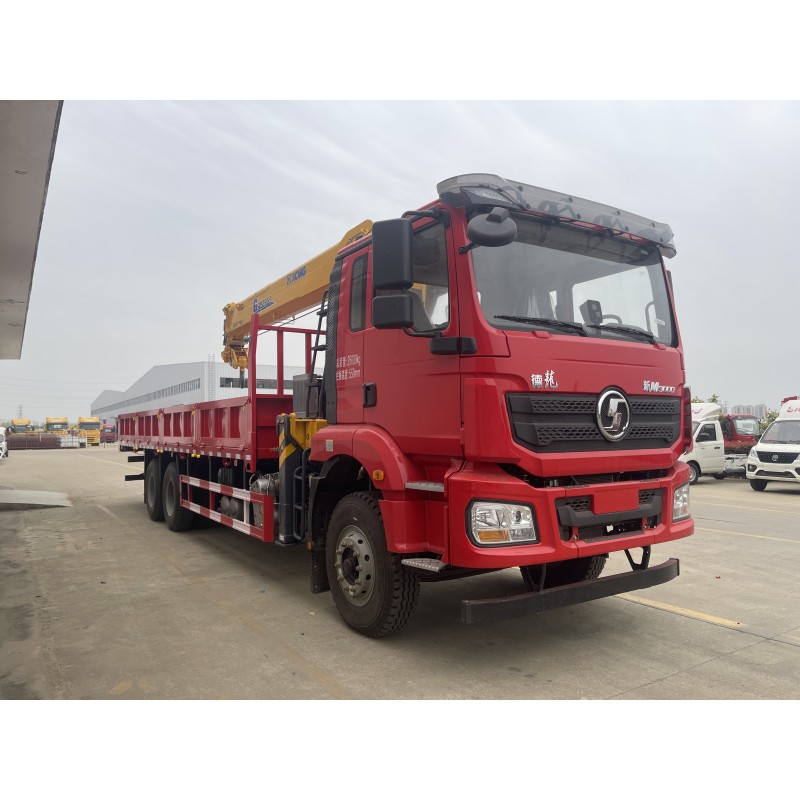

China Shacman 14Ton 16Ton Construction Service Truck Crane with hydraulic telescopic booms
Product Description

1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.

2. Main parts: Crane. (Different lifting capacities match different chassis.)

3. Advantage: One truck combines the functions of crane and dump truck.

Product Specification
General Technical Parameters
Overall Dimension 12000×2550×3980 (mm)
Gross Vehicle Weight 24900(Kg)
Curb Weight 15800(Kg)
Chassis Specification
Chassis Brand Shacman
Drive model 8*4
Cabin Double, Left Hand Driving, with air conditional
Number of Passengers 3




Engine

 Model 4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR
Power 231KW/315HP
Emission standard EURO 3
Displacement 8300(ml)
Fuel type Diesel
Gearbox 9Forwards & 1Reverse
Brake System Air break
Wheel Base 2100+4575+1400 mm
Front/Rear Axle Loading 8000/11500(Kg)
Approach/Departure Angle 23/12(°)
Overhang 1250/3545(mm)
Tire 11.00R20
Max Driving Speed 90(km/h)
Upperstructure Specification


Cargo Body

 Dimension 8200×2450×600(mm)
Material Q235 carbon steel
Cargo Thickness Side 1.5mm, Bottom 2.5mm











Working System

 Boom Type Straight 4-Arm telescopic boom






Crane

 Crane Brand S-ANY or CLW
Range of Sprayer 30m
Max Lifting Moment 25(T.M)
Max Lifting Capacity 16000(kg)
Max lifting height 12(m)
Rotation angle 360(°)
Installation space 1150(mm)
Recommented power 30(kw)
Maximum working pressure 26(Mpa)
Max Flow 63(l/min)
Crane weight 3800(kg)
Oil tank capacity 160(L)
Leg Leg type H type
Leg Span 2.28-5.9(m)
Hydraulic system Pressure 18(M pa)
Capacity 70(l)
Other Configuration Control system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.
Options Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.
