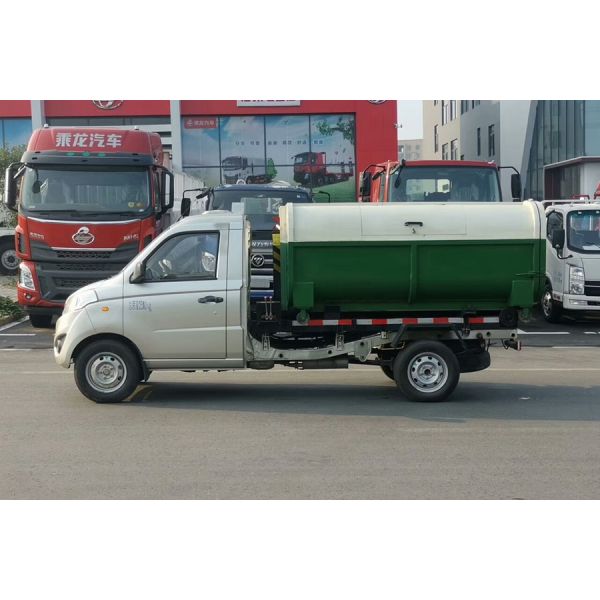

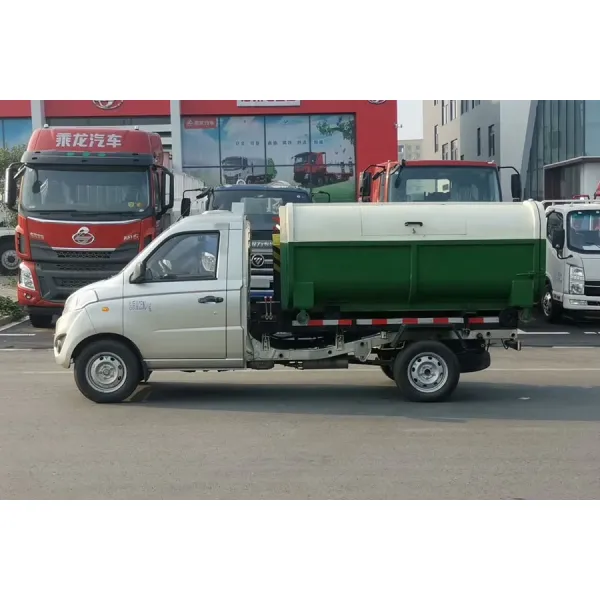

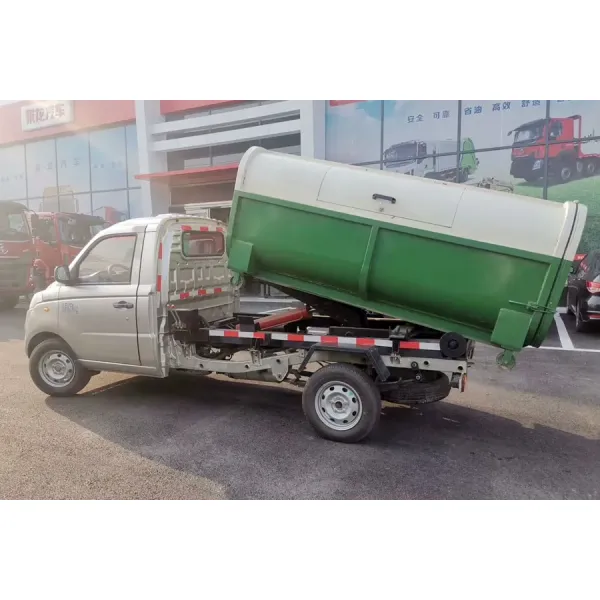

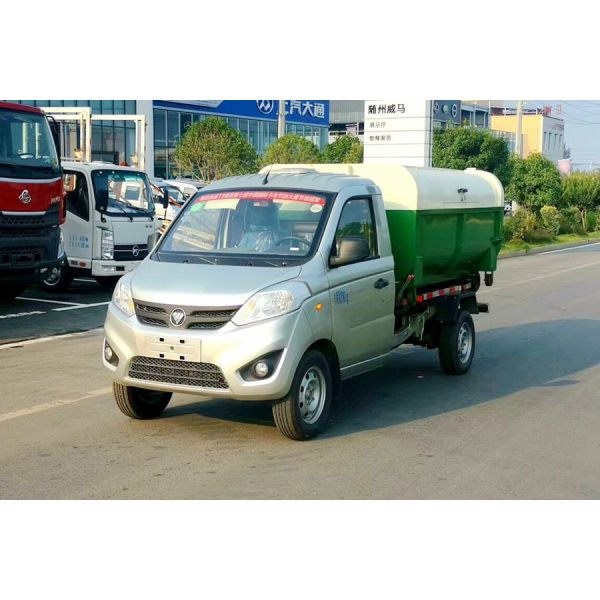

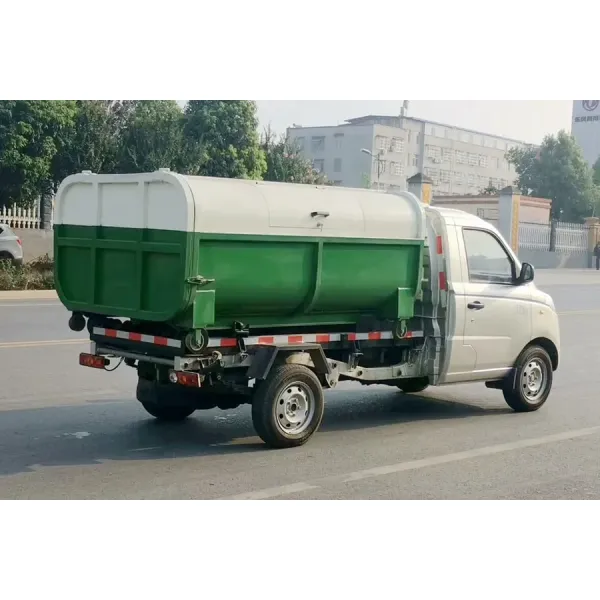

Mini Foton Roll off Container Refuse Garbage Collection Truck
Mini Foton Roll off Container Refuse Garbage Collection Truck
Mini Foton Roll off Container Refuse Garbage Collection Truck
Mini Foton Roll off Container Refuse Garbage Collection Truck
Mini Foton Roll off Container Refuse Garbage Collection Truck
Mini Foton Roll off Container Refuse Garbage Collection Truck
Mini Foton Roll off Container Refuse Garbage Collection Truck
Mini Foton Roll off Container Refuse Garbage Collection Truck
Mini Foton Roll off Container Refuse Garbage Collection Truck
Mini Foton Roll off Container Refuse Garbage Collection Truck
Mini Foton Roll off Container Refuse Garbage Collection Truck
Mini Foton Roll off Container Refuse Garbage Collection Truck
Specifications
Place of Origin :
CHINA
Brand Name :
EHY
Model NO. :
EHY5030GB
Volume :
3.0cbm/4.0cbm
Emission Standard :
Euro 1/Euro 2/Euro 3/Euro 4/Euro 5/Optional
Transmission Type :
Manual
Payload :
2tons; 2.5tons; 3tons
Fuel :
Diesel
Drive Wheel :
4×2
Brand :
FOTON
Models :
Small
Usage :
Swing Arm Type
Condition :
New
Drive Model :
4X2/6 Wheels/4*2
Unloading Time :
40-50s
Colour :
Blue/Red/Yellow/White/Green/Optional
Hydraulic System :
China Local Brand
Garbage Box Material :
Carbon Steel
Fuel Type :
Diesel
Control Model :
Hydraulic Control
Tank Material :
Q235 Carbon Steel
Bottom Thickness(mm) :
4.0 mm
Control Panel :
Close to Cabin
Wheelbase(mm) :
2600mm; 2750mm; 2800mm; 2850mm
Certificate :
ISO CCC SGS BV
Container Volume :
3.0cbm/4.0cbm
Side Plate Thickness(mm) :
3.0 mm
Loading Time :
50-60s
Transport Package :
Naked, RO-RO, Bulk, Container
Specification :
5500x1700x2500 mm
Trademark :
EHY
Origin :
Suizhou, China
HS Code :
8705909090
Production Capacity :
500 Unit/Month
MOQ :
1
Price :
15000-35000 per unit
Model Number :
EHY
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Name :
Garbage Truck
Description
Product Description

1. Hook Lift Garbage Truck is also called garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport household waste in residential area.

2. According to loading and unloading type, it is divided into the following categories: dump garbage truck, hook lift garbage truck, compactor garbage truck, swing arm garbage truck, self-loading garbage truck, sealed type garbage truck.

Specification
Condition New condition/Left hand drive/Right hand drive/4x2











Main details

 Wheelbase(mm) 2600;2800;2850
Front/Rear Axle loading(kg) 2000/4000
Rear axle ratio 5.375(6.142)
Wheel track (front/rear) (mm) 1440/1425
Front/Rear overhang(mm) 1110/1488
Min. Ground Clearance 190
Approach/Departure angle(°) 20.5/17 °
Max. driving speed(km/h) 100
Battery 12V*2 ; 100Ah*2
Alternator 14V 60A
Starter 12V 2.8kw
Clutch Dry single plate
Brakes Hydraulic brake
Steering Gear Power steering, hydraulic steering with power assistance
Tire Quantity 6 pcs with one spare tire
Specifications 6.50-16
Oil tank Fuel tank material Steel
Fuel tank capacity (L) 100
Transmission Manual type, 5 Forwards and 1 reverse
Cab It can accommodate three people. With Air Conditioner


Engine

 Brand Optional
Model Optional
Fuel type Diesel
Emission standard Euro 1/Euro 2/Euro 3/Euro 4/Euro 5
Upper & Control System



Garbage box

 Capacity(cbm) 3.0cbm/4.0cbm
Tank material Q235 carbon steel
Side plate thickness(mm) 3.0 mm
Bottom thickness(mm) 4.0 mm
pulley wheel quantity(pcs) 4 pcs
Control System Control model Hydraulic control
Control panel Close to Cabin
