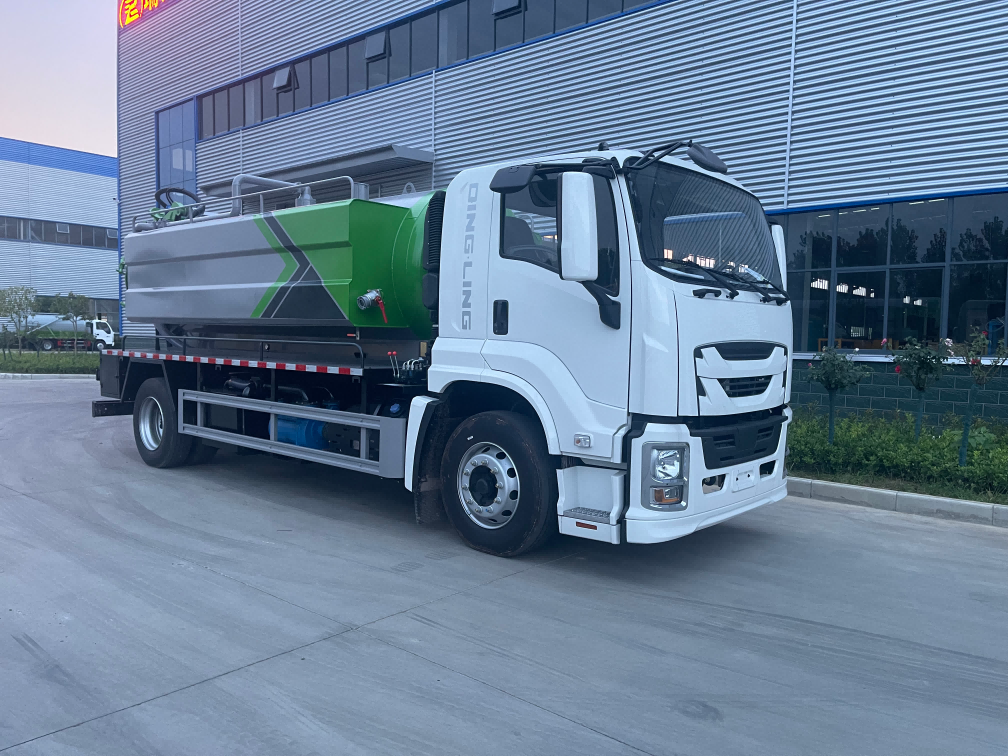

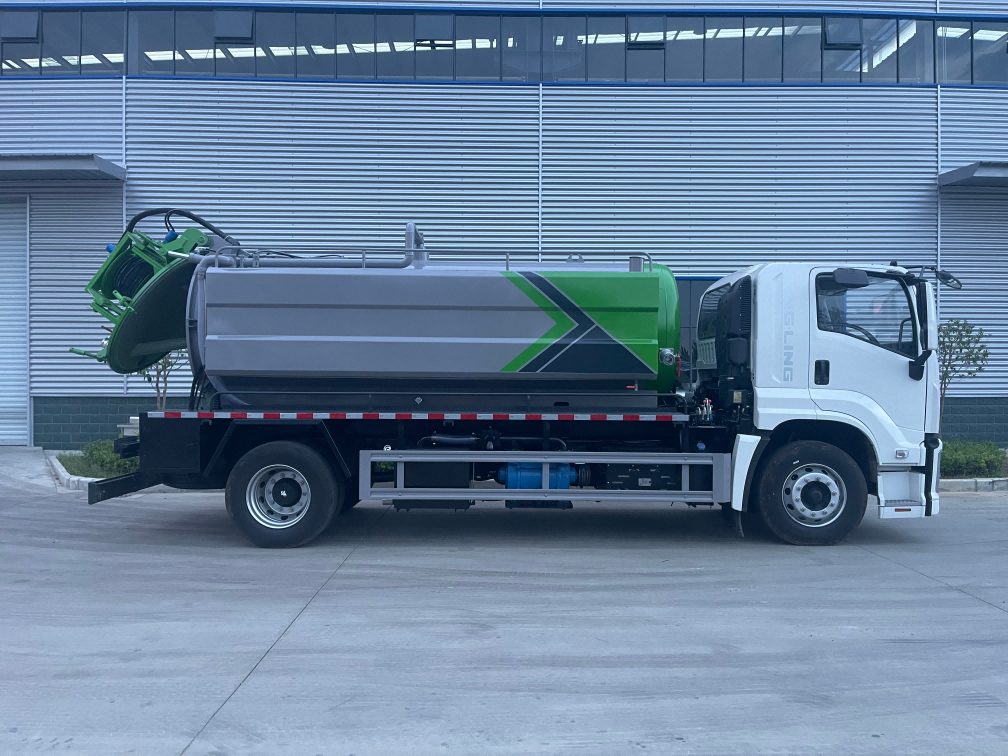

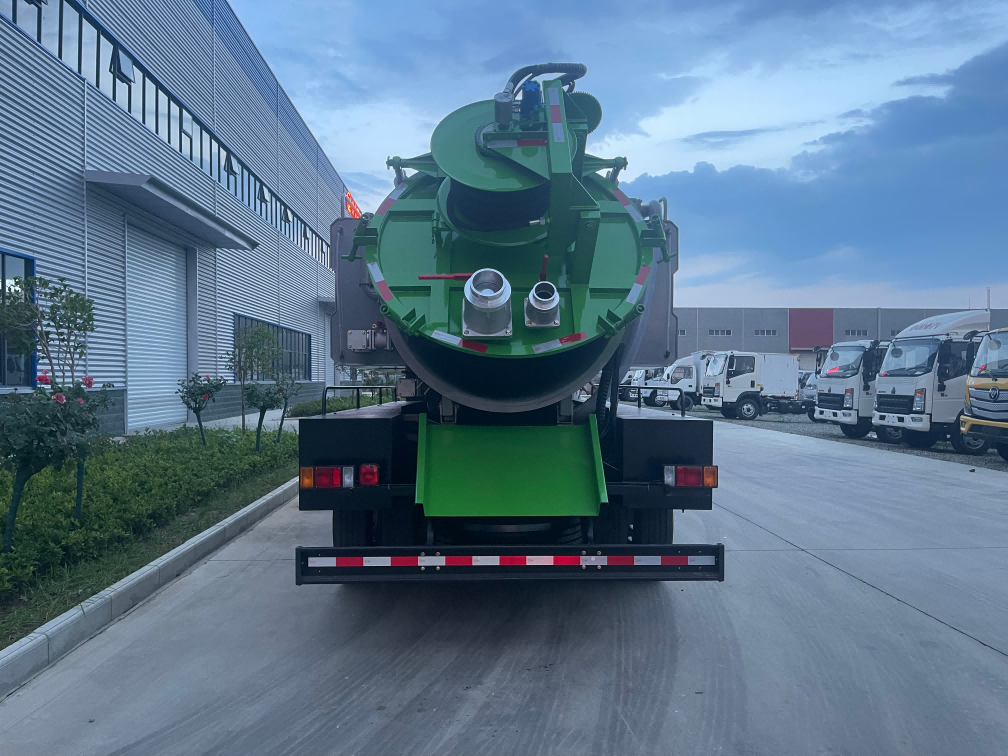

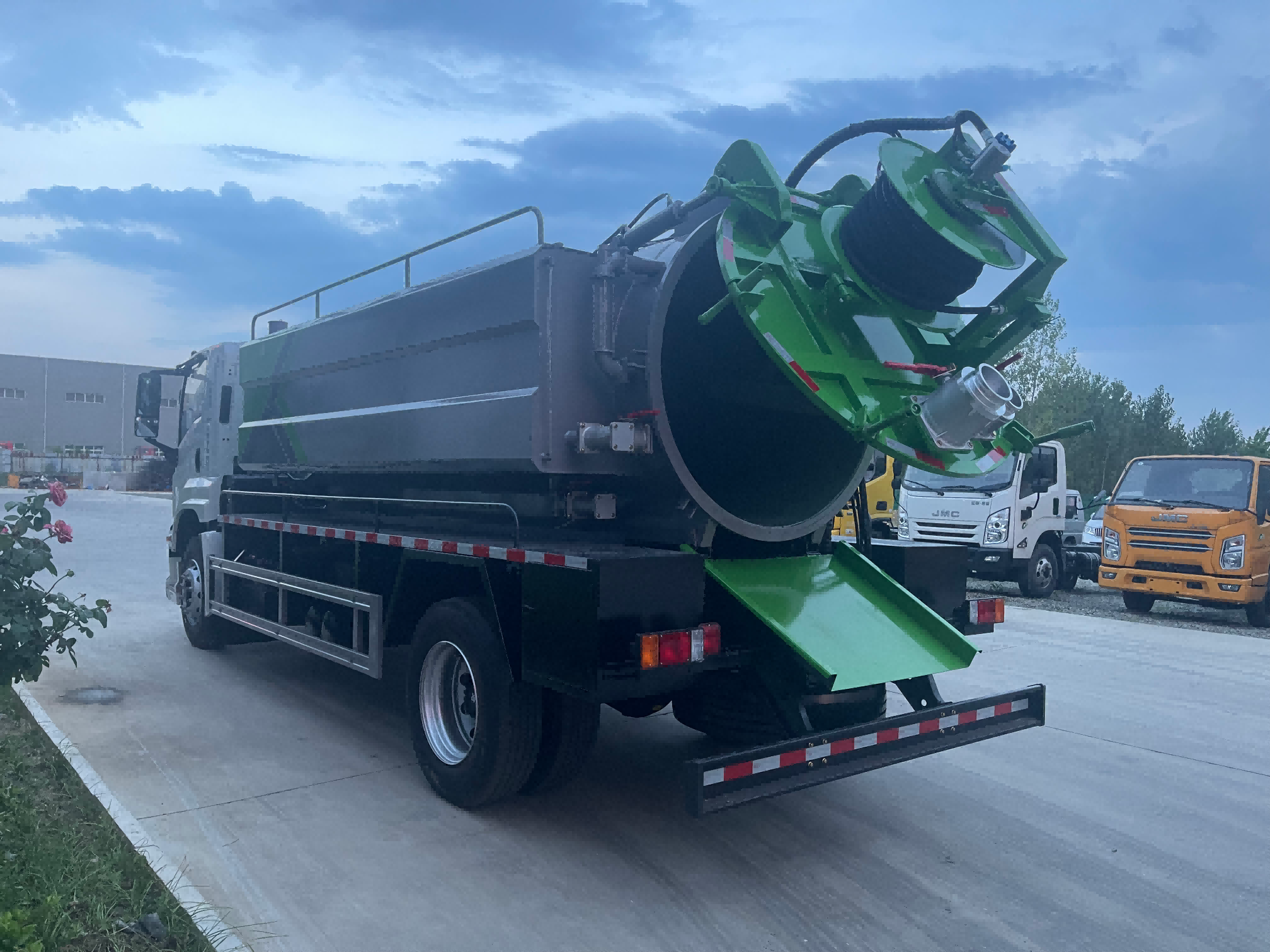

Isuzu Desert Dry Sand Vacuum Truck with 10m Suction Pipe 205HP Diesel Engine and 10000L Tank Capacity
Isuzu Desert Dry Sand Vacuum Truck with 10m Suction Pipe 205HP Diesel Engine and 10000L Tank Capacity
Isuzu Desert Dry Sand Vacuum Truck with 10m Suction Pipe 205HP Diesel Engine and 10000L Tank Capacity
Isuzu Desert Dry Sand Vacuum Truck with 10m Suction Pipe 205HP Diesel Engine and 10000L Tank Capacity
Isuzu Desert Dry Sand Vacuum Truck with 10m Suction Pipe 205HP Diesel Engine and 10000L Tank Capacity
Isuzu Desert Dry Sand Vacuum Truck with 10m Suction Pipe 205HP Diesel Engine and 10000L Tank Capacity
Isuzu Desert Dry Sand Vacuum Truck with 10m Suction Pipe 205HP Diesel Engine and 10000L Tank Capacity
Isuzu Desert Dry Sand Vacuum Truck with 10m Suction Pipe 205HP Diesel Engine and 10000L Tank Capacity
Isuzu Desert Dry Sand Vacuum Truck with 10m Suction Pipe 205HP Diesel Engine and 10000L Tank Capacity
Isuzu Desert Dry Sand Vacuum Truck with 10m Suction Pipe 205HP Diesel Engine and 10000L Tank Capacity
Isuzu Desert Dry Sand Vacuum Truck with 10m Suction Pipe 205HP Diesel Engine and 10000L Tank Capacity
Isuzu Desert Dry Sand Vacuum Truck with 10m Suction Pipe 205HP Diesel Engine and 10000L Tank Capacity
Isuzu Desert Dry Sand Vacuum Truck with 10m Suction Pipe 205HP Diesel Engine and 10000L Tank Capacity
Isuzu Desert Dry Sand Vacuum Truck with 10m Suction Pipe 205HP Diesel Engine and 10000L Tank Capacity
Specifications
MOQ :
1
Model NO. :
CLW50714
Hoesrpower :
205HP
Sewage Capacity :
10000 Liters, 10cbm
Transport Package :
Naked Packing, RO-RO, Bulk Ship
Production Capacity :
500unit Per Month
Price :
15000-35000 per unit
Fuel :
Diesel
Tank Volume :
10000L 15000lites
Pressure Gauge :
Yes
Specification :
8300x24900x3380mm
Drive Model :
Right Hand Drive & Left Hand Drive
Water Gas Separator :
Yes
Sewage Suction Pipe :
10m
Chassis Brand :
HOWO, Dongfeng, isuzu, Forland, Foton, JAC, etc.
Model Number :
CLW
Condition :
New
Hand Driving :
LHD or Rhd
Certificate :
ISO CCC SGS BV
Effective Suction Range :
>8m
Material :
Carbon Steel
Name :
Sewage Suction Truck
Payment Terms :
50% Deposit,Balance should be paid before ship out
Transmission Type :
Manual
Drive Wheel :
4x2
Discharge Valve :
Yes
Supply Ability :
10unit per month
Payload :
8tons - 15tons
Origin :
Suizhou, China
Oil and Gas Separator :
Yes
Certification :
ISO9000, CCC, TS16949, CE
Glass Window :
Yes
HS Code :
87059099
Place of Origin :
CHINA
Tank Material :
5mm Carbon Steel
Brand Name :
CLW
Vacuum Pump :
Chinese Brand, Italy Brand or Other Imported Brand
Emission Standard :
Euro3 Euro4 Euro5
Trademark :
CLW
Description
Isuzu Desert dry sand vacuum truck Powder material vacuum truck
Description:
  1. Chassis:
    • Drive type: 4x2, 4x4, 6x4, 8x4 etc.
    • Our factory has good business relationship with DONGFENG, FOTON, IISUZU, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
  2. Tanker body:From 2m3 to 25 m3 capacity.
  3. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.






Vehicle Main Dimensions

 Cab type a row and a half
Overall dimension(L*W*H)(mm) 7420×2530x2810
Wheelbase (mm) 4500
Axle number 2
Drive type 4*2
Steering type LHD/RHD
Max. Drive Speed (km/h) 110
Curb weight (kg) 7240



Chassis parameter

 Chassis brand ISUZU
Transmission Manual,6 forward and 1 reverse
Brakes air brake
Tire 295/80R22.5



Engine parameter

 Engine Brand ISUZU
Fuel type Diesel
Horse Power(hp) 205hp
Emission Standard Euro III/IV/V








Superstructure Parameter and main performance

 Cleaning Tank volume(m3) 2
Cleaning Tank material 4 mm good quality carbon steel; round shape
Sewage tank volume(m3) 8
Sewage tank material 6 mm good quality carbon steel
Pump Imported Italy high quality vacuum pump or chinese vacuum pump
Standard configuration 60m long high pressure pipe, 10 high pressure sprayers,inspect window, one gravity mouth, cleaning apparatus,8m long suction pipe, etc
Main performance Suction time ≤ 5min
effective suction range ≥ 9m
Main function Cleaning city sewer, pipeline dredge, suction sewage,etc
