Specifications
MOQ :
1
Tire Design :
Radial
Rear Lifting Platform :
Hydraulic Control
Rear Lifting Platform Size :
2100*1800mm
Name :
Cargo Truck
Price :
15000-35000 per unit
Condition :
New
Transmission :
6 Forwards and 1 Reverse
Box Volume :
46m3
Transport Package :
Nude, Container, RO-RO, Bulk
Trademark :
CLW
Certification :
ISO 3C
Seats :
≤5
Place of Origin :
CHINA
Horsepower :
＜160hp
Specification :
10100*2490*3720 mm
Model Number :
CLW
Emission Standard :
Euro 2
Paint :
Color and Logo According to Customer Needs
Production Capacity :
500 Units Per Month
Supply Ability :
10unit per month
Box Max. Loading Weight :
15tons-20tons
Chassis Brand :
Dongfeng, Foton, FAW, Isuzu, HOWO, etc.
Origin :
Suizhou, China
HS Code :
8705909090
Payment Terms :
50% Deposit,Balance should be paid before ship out
Box Size :
5200x2100x2100(mm)
Brake :
Air Brake
Box Material :
Roofing Iron
Brand Name :
CLW
Model NO. :
CLW41236CT524
Delivery Time :
30days After Receive The Deposit
Rear Lifting Platform Loading Capacity :
1500 Kg
Description

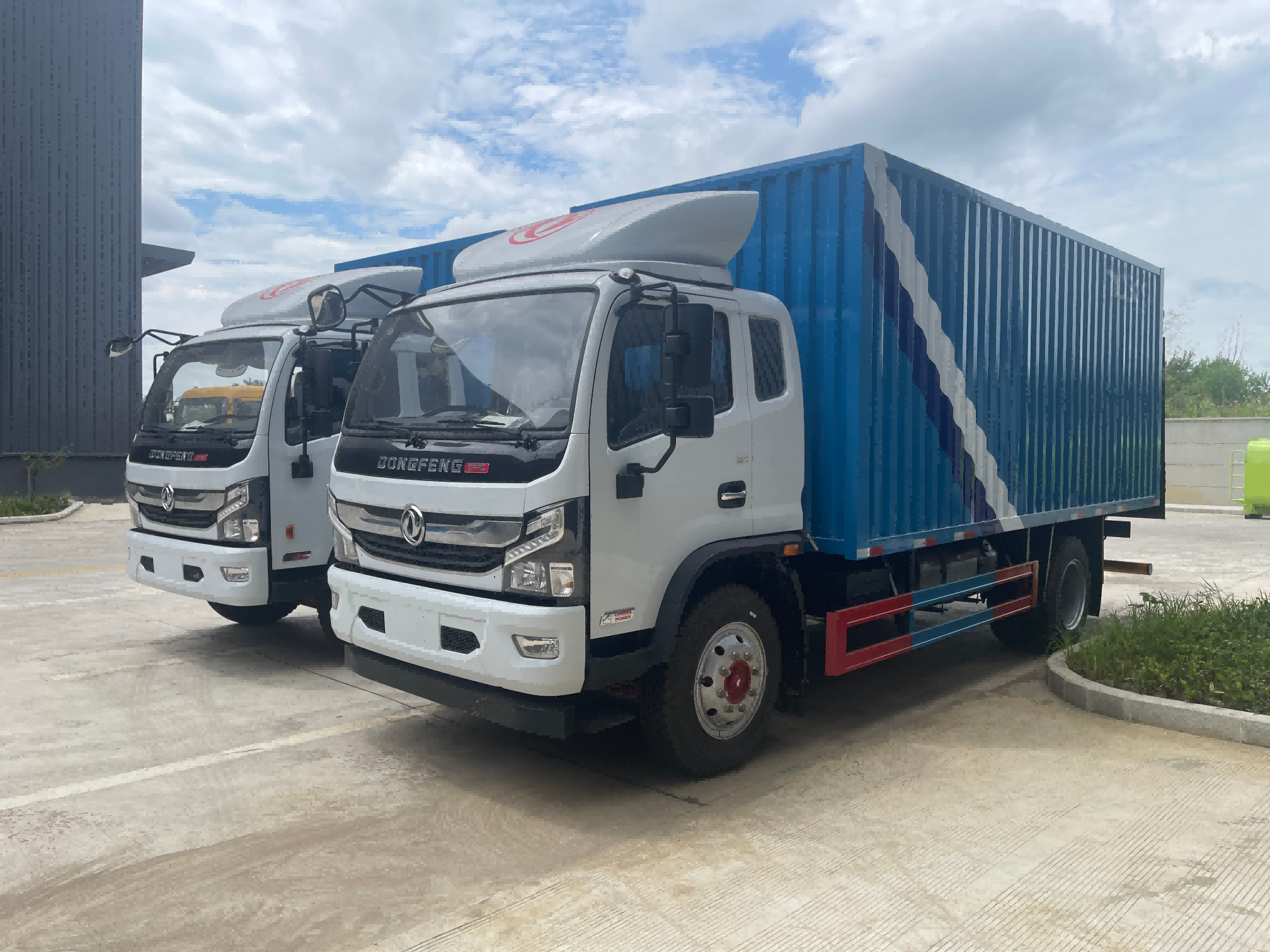

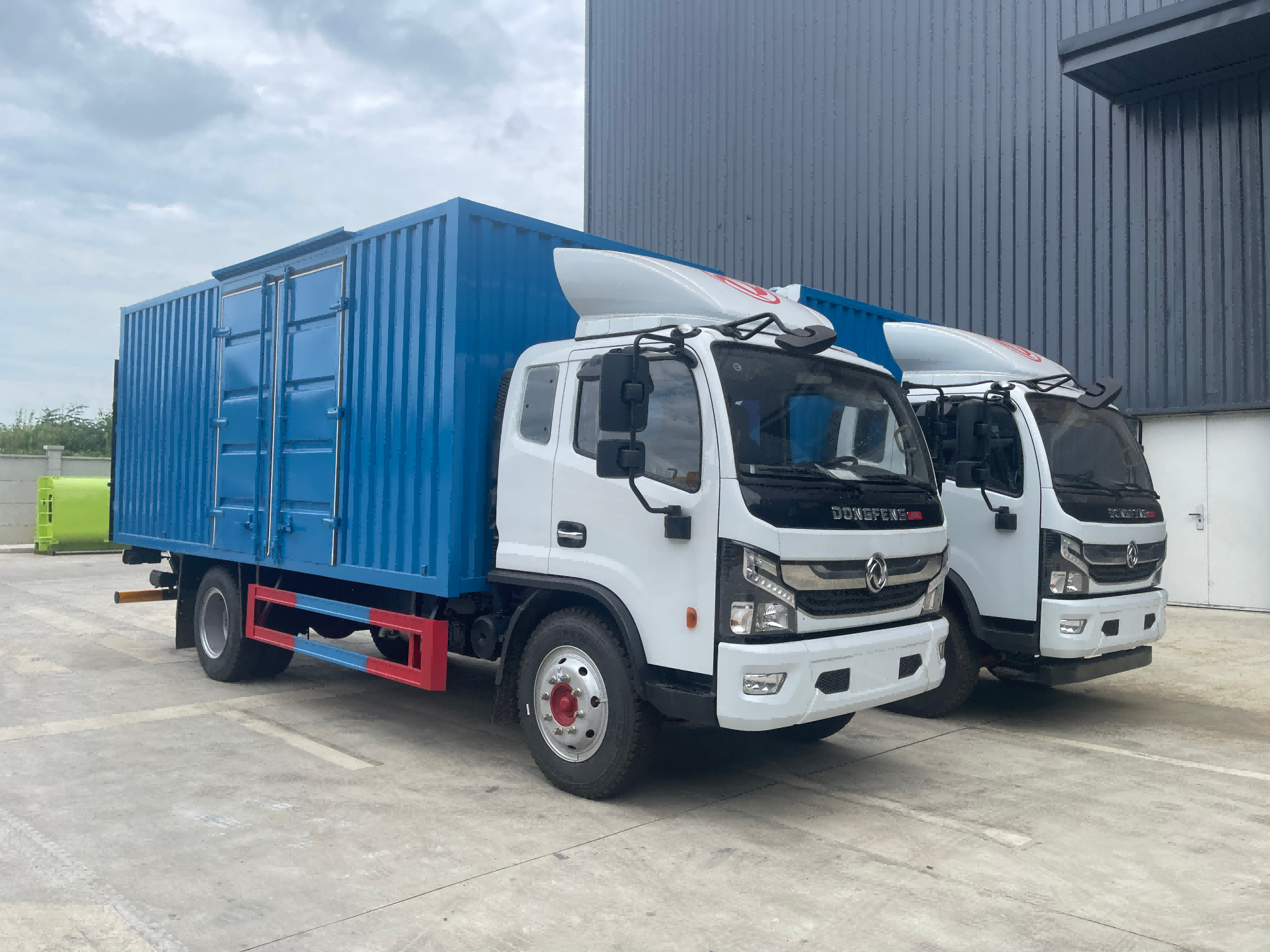

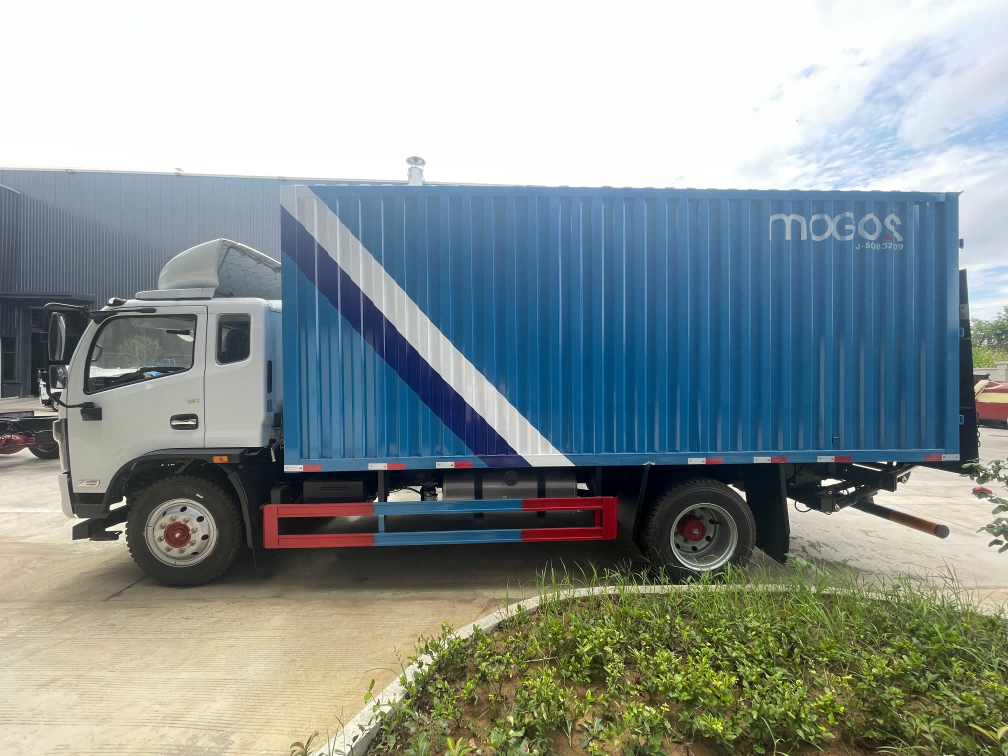

DONGFENG 160HP Box Truck Van Cargo Truck Light Duty Mini Lorry Truck

Description:

  • Strong power, super load capacity. We can provide trucks with a load capacity of up to 40 tons.
  • Warranty: One year for the engine, gear box, and axles.

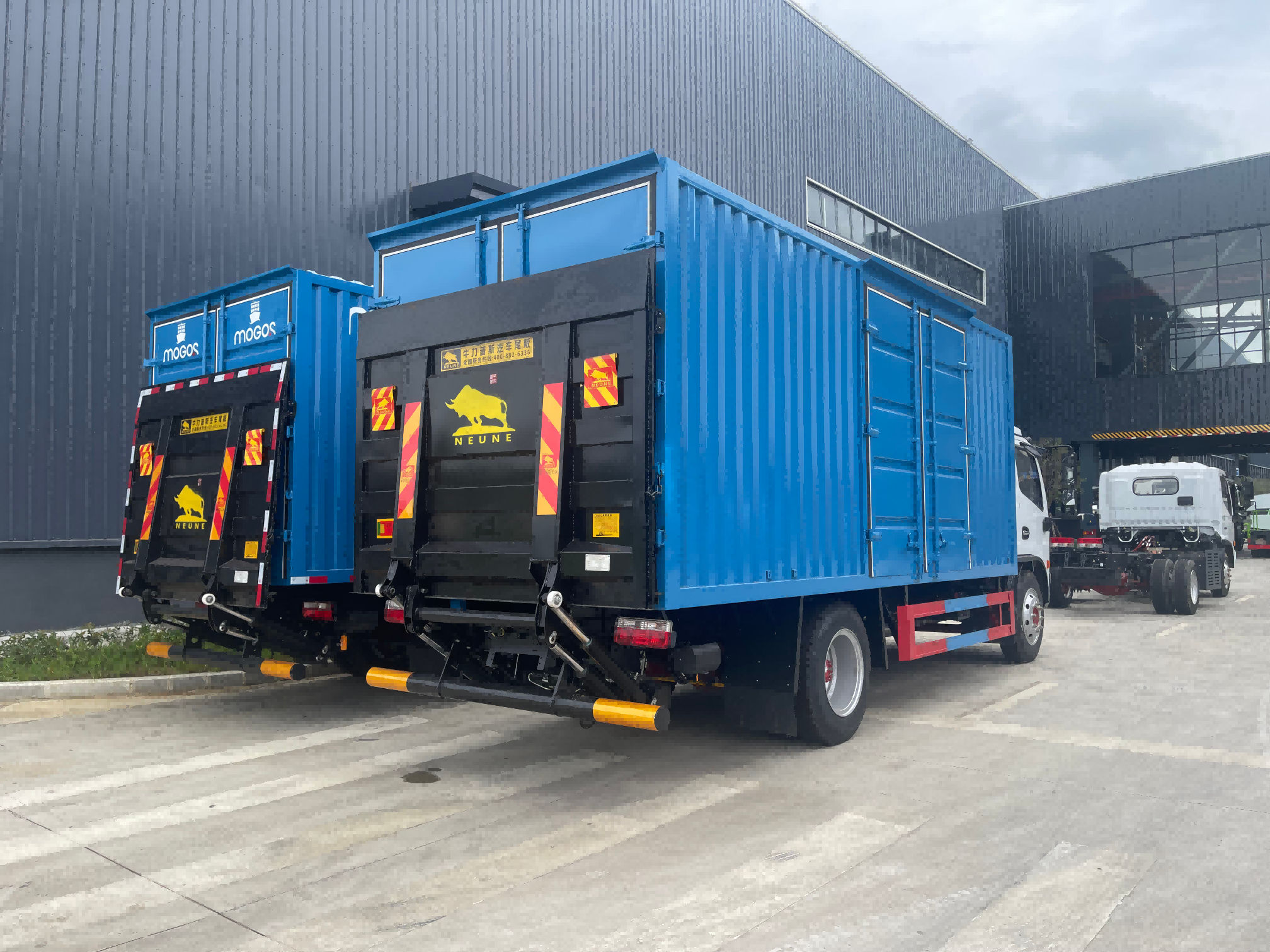

  • Rear Hydraulic Lifting Platform can carry 1500 kg.
  • Technical supporting and modification according to customers' requirements are available.

160HP VAN TRUCK Parameters

Parameters of chassis

Cabin

 D7 Flat top cab/no berth/with thermal insulation
cab /seats 3 people/with reversing video/center control touch-sensitive electronic screen/air conditioning/metal bumper/electric doors and Windows/center control lock / independent diesel heating/With low temperature start function
Driving Type Manual left hand drive
Drive Wheel 4x2
GVW 12000(kg)
Curb weight 4290(kg)
Loading capacity 8000(kg)
Overall dimensions 6805*2140*2430 (mm)
Box dimensions 5200*2200*2100(mm)
Number of axles 2
Wheelbase 3800(mm)
Front axle 4.3T
Rear axle 7.8T
Frame 188*750,6(mm)
Suspension Multi leaf spring suspension front and rear
Wheels and tires 7.00R16,with one spare tire
Brake Air brake with ABS
Air reservoir Aluminium alloy
Battery Camel battery , 12V
Fuel tank Aluminium alloy tank
Pipeline Low temperature oil and gas pipeline
Parameters of engine
Model YC4E160‑33
Function With low temperature start function
Fuel Diesel
Emission standard Euro 3(Shield exhaust treatment system)
Transmission Manual WLY, 6GS46 ,6 forward
Number of cylinder 4
Rated speed 2600(r/min)
Max.Torque 278N.m/1300~1700r/pm
Power 118/160(kw/hp)
Displacement 4.257(L)
Cargo box parameter
Box dimension 5200x2100x2100(mm)
The thickness of the side 3mm
The thickness of the bottom 4mm
Box material Corrugated iron sheet
Paint Electrophoretic spraying process
