Specifications
Model Number :
SNC2C6
Type :
Load Cell
Place of Origin :
Guangdong, China
Brand Name :
SNC
Use :
Force measurement
Theory :
strain gauge sensor
Output :
mV/V
Description :
SNC2C6
Model: :
SNC2C6
Capacity :
5kg-500kg
Stock :
yes
Precision :
0.1 %FS
Zero temperature coefficient :
±0.1 %FS/10℃
Temperature Effect On Output :
±0.1 %FS/10℃
Insulation resistance :
≥ 5000 MΩ
Excitation voltage :
9 ~ 15 VDC
IP grade :
IP 67
Wiring :
Red: EXC+, Green: EXC- , Yellow: SIG+, White: SIG-
Packaging Details :
50kg 100kg 150kg 200kg miniature load cell manufacturer-------carton box
Port :
shenzhen
Supply Ability :
500 Piece/Pieces per Month Miniature Inline Threaded Rod Load Cell 5 Kg 10 Kg 20 Kg 30 Kg 5
Price :
$50/units 1-9 units
Description

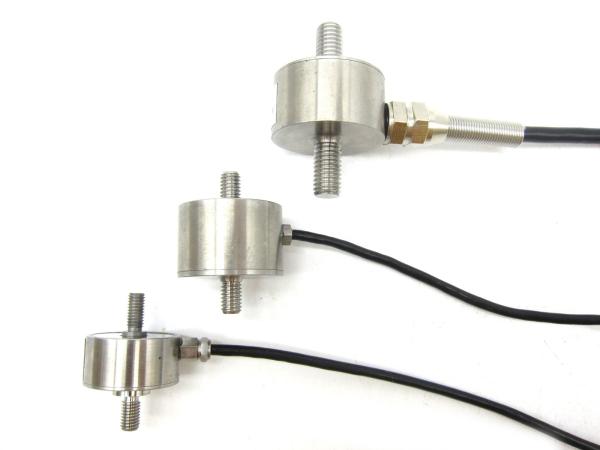

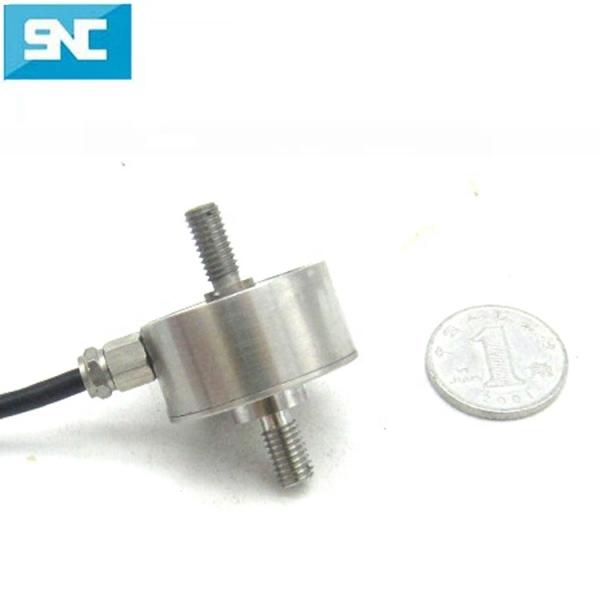

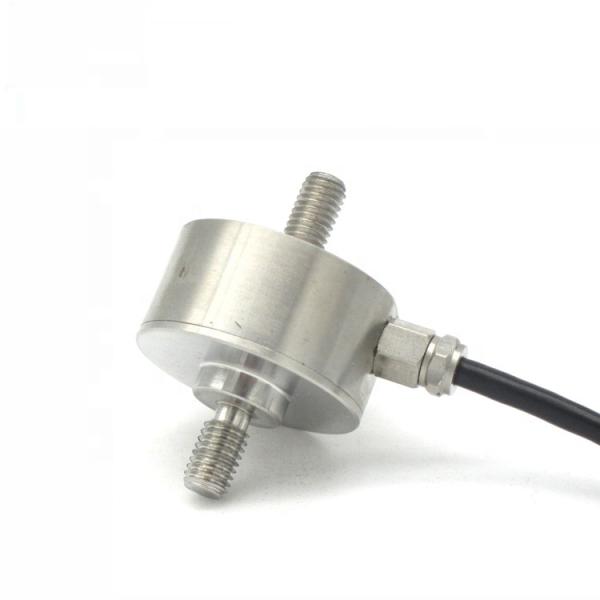

Miniature Inline Threaded Rod Load Cell 5 Kg 10 Kg 20 Kg 30 Kg 50 Kg 100 Kg 200 Kg 500 Kg

Precision Load Cell 5kg-500kg for Miniature Inline Threaded Rod High Capacity 5kg-500kg High Precision Precision 0.1 %FS

Product Description

Parameter:

Capacity 5kg ~ 500 kg
Sensitivity 0.8~2.0 mv/v
Creep ±0.1 %F·S/30min
Non-linearity ±0.3 %F·S
hysteresis error ±0.3 %F·S
Repeatability ±0.3 %F·S
Temp. effect on zero ±0.1 %F·S/10℃
Temp. effect on sensitivity ±0.1 %F·S/10℃
Input resistance 700 ~ 825 Ω
Output resistance 700 ± 50 Ω
Insulation resistance ≥ 5000 MΩ
Excitation voltage 9 ~ 15 VDC
Working temp. range -20 ~+70℃
Safety overload 150 %F·S
Sealing grade IP67
Material stainless steel

Note: We reserve the right to modify the information / parameters with/ without prior customer notification.
