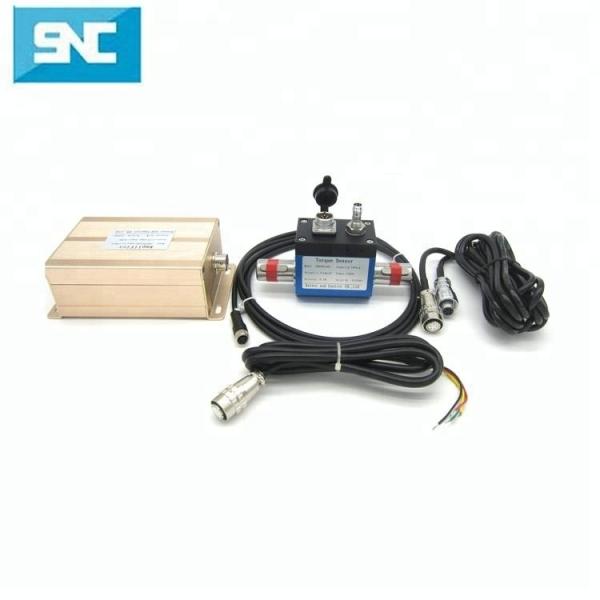

10N.m 20N.m 30Nm Rotary Torque Sensor for Accurate Torque Testing at 4000 RPM Max Rotation Speed
10N.m 20N.m 30Nm Rotary Torque Sensor for Accurate Torque Testing at 4000 RPM Max Rotation Speed
10N.m 20N.m 30Nm Rotary Torque Sensor for Accurate Torque Testing at 4000 RPM Max Rotation Speed
10N.m 20N.m 30Nm Rotary Torque Sensor for Accurate Torque Testing at 4000 RPM Max Rotation Speed
10N.m 20N.m 30Nm Rotary Torque Sensor for Accurate Torque Testing at 4000 RPM Max Rotation Speed
10N.m 20N.m 30Nm Rotary Torque Sensor for Accurate Torque Testing at 4000 RPM Max Rotation Speed
10N.m 20N.m 30Nm Rotary Torque Sensor for Accurate Torque Testing at 4000 RPM Max Rotation Speed
10N.m 20N.m 30Nm Rotary Torque Sensor for Accurate Torque Testing at 4000 RPM Max Rotation Speed
10N.m 20N.m 30Nm Rotary Torque Sensor for Accurate Torque Testing at 4000 RPM Max Rotation Speed
10N.m 20N.m 30Nm Rotary Torque Sensor for Accurate Torque Testing at 4000 RPM Max Rotation Speed
10N.m 20N.m 30Nm Rotary Torque Sensor for Accurate Torque Testing at 4000 RPM Max Rotation Speed
10N.m 20N.m 30Nm Rotary Torque Sensor for Accurate Torque Testing at 4000 RPM Max Rotation Speed
Specifications
Model Number :
ZHKY8050B
Type :
Load Cell, rotary torque sensor
Place of Origin :
Guangdong, China
Brand Name :
SNC
Use :
Torque detection
Theory :
strain gauge sensor
Output :
mV/V, 1.5mV/V or 0-5V/10V, 4-20mA
Description :
ZHKY8050B
Item :
rotary torque sensor
Capacity :
10Nm-100Nm
Torque accuracy :
0.5%/ 0.25% / 0.1%F.S
Output type :
Torque and speed
Power supply :
±12 VDC / ±24VDC
Max rotation speed :
4000 RPM
Speed measurement :
60 pulses
Application :
motor, dynamometer, pump, torque measuring devices
Packaging Details :
1 unit / carton
Port :
shenzhen
Supply Ability :
50 Piece/Pieces per Month Torque meter tester 10N.m 20N.m 30Nm rotary torque sensor price
Price :
$500-700/pieces
Description

Torque meter tester 10N.m 20N.m 30Nm rotary torque sensor price

Featires:

Model: ZHKY8050B
Capacity: 0~200/300/500 Nm
Precision: ±0.1; ±0.3; ±0.5%F.S
Output sensitivity: 1.0~1.5 mV/V,
Optional: 4-20mA, 0-5/ 0-10Vdc
Speed: Donot support speed measure.
If you need speed measure, please refer to ZHKY8050BS

Parameters:

Working Temperature: -10~+60 ℃
Temperature compensated range: room temperature +60 ℃
Temperature effect on zero: ±0.1 %F.S/10 ℃
Excitation voltage : 12 VDC
Insulted resistance: 2000 MΩ/100VDC
Input resistance: 700±10 / 350±10 Ω
Output resistance: 700±5 / 350±5 Ω
Zero output: 0~±1 %F.S
Safety overload: 120 %F.S
Cable length: 3 m
Cable connection: Red: Exc+ Black: Exc -

Green: Signal + White: Signal-

10N.m 20N.m 30Nm Rotary Torque Sensor for Accurate Torque Testing at 4000 RPM Max Rotation Speed

Accessories

10N.m 20N.m 30Nm Rotary Torque Sensor for Accurate Torque Testing at 4000 RPM Max Rotation Speed

Product Uses

10N.m 20N.m 30Nm Rotary Torque Sensor for Accurate Torque Testing at 4000 RPM Max Rotation Speed

Related Products

10N.m 20N.m 30Nm Rotary Torque Sensor for Accurate Torque Testing at 4000 RPM Max Rotation Speed 10N.m 20N.m 30Nm Rotary Torque Sensor for Accurate Torque Testing at 4000 RPM Max Rotation Speed 10N.m 20N.m 30Nm Rotary Torque Sensor for Accurate Torque Testing at 4000 RPM Max Rotation Speed
10N.m 20N.m 30Nm Rotary Torque Sensor for Accurate Torque Testing at 4000 RPM Max Rotation Speed 10N.m 20N.m 30Nm Rotary Torque Sensor for Accurate Torque Testing at 4000 RPM Max Rotation Speed 10N.m 20N.m 30Nm Rotary Torque Sensor for Accurate Torque Testing at 4000 RPM Max Rotation Speed
10N.m 20N.m 30Nm Rotary Torque Sensor for Accurate Torque Testing at 4000 RPM Max Rotation Speed 10N.m 20N.m 30Nm Rotary Torque Sensor for Accurate Torque Testing at 4000 RPM Max Rotation Speed 10N.m 20N.m 30Nm Rotary Torque Sensor for Accurate Torque Testing at 4000 RPM Max Rotation Speed
Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.

Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

10N.m 20N.m 30Nm Rotary Torque Sensor for Accurate Torque Testing at 4000 RPM Max Rotation Speed

Packaging & Shipping

10N.m 20N.m 30Nm Rotary Torque Sensor for Accurate Torque Testing at 4000 RPM Max Rotation Speed

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
