Specifications
Model Number :
ZHKY8050AS
Type :
Load Cell, rotary torque sensors
Place of Origin :
Guangdong, China
Brand Name :
SNC
Use :
Torque detection
Theory :
strain gauge sensor
Output :
mV/V, 1.0~1.5.0 mV/V, current, voltage
Description :
ZHKY8050AS
Material :
torque sensors
Capacity :
10Nm-100Nm
Torque accuracy :
0.1%F.S
Option :
speed measurement
Power supply :
±12 VDC / 24VDC
Max rotation speed :
4000RPM
Speed measurement :
60 pulses frequency output
Application :
motor, dymometer, pump, turbin
Packaging Details :
paper carton box / wooden carton, 1 unit per carton
Port :
shenzhen
Supply Ability :
50 Piece/Pieces per Month Rotary transformer 30Nm torque sensors
Price :
$500-700/units
Description

20Nm torque measuring device for motor engine

Product Description

Sensorcon Product Lists
Strain Gauge Load Cell Torque Sensor Display
Linear Strain gauge-AA Wireless sensor Slip ring rotary torque sensor Platform scale display
Half bridge strain gauge-BB,HA,GB,FB Micro load cell Contactless rotary torque sensor Truck scale display
Shear/torque strain gauge-AB,HA Single point load cell Static torque sensor Controller
Full bridge strain gauge-EB, FG,FD Button load cell Meters Junction box
Tee Rosettes strain gauge-CA,BA Shear beam load cell Coupling Big screen display
Round type strain gauge S type load cell Amplifier
Semi-conductor strain gauge Column load cell
Bridge type load cell

Features:

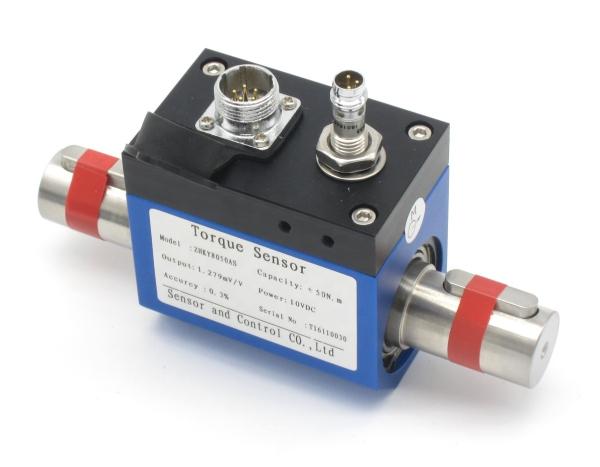

Model: ZHKY8050AS

Capacity: 10Nm, 20Nm, 30Nm, 50Nm, 100Nm

Precision: ±0.1; ±0.3; ±0.5%F.S

Output sensitivity: 1.0~1.5.0 mV/V (Default), 4-20mA, 0-5/ 0-10VDC

Type: TORQUE SENSOR

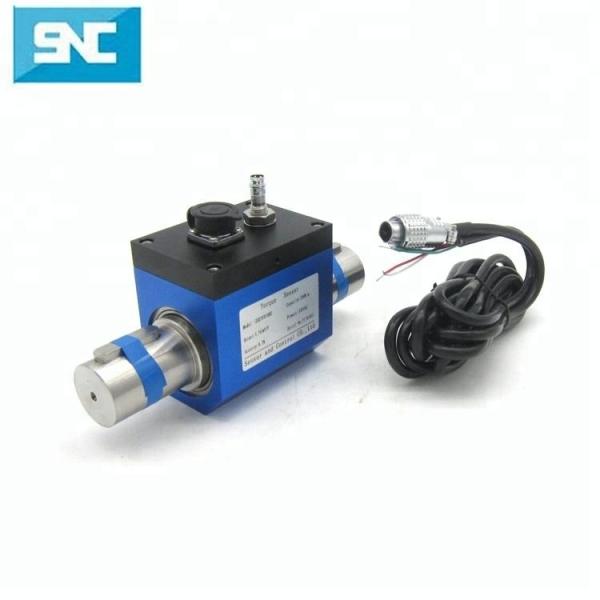

Industrial Rotary Torque Transducer 30Nm 50N.m with High Precision Torque Measurement

Parameters:

Working Temperature:

-10~+80

Temperature compensated range:

room temperature ~+60

Temperature effect on zero:

±0.1 %F.S/10

Excitation voltage :

12 VDC

Insulted resistance:

2000 MΩ/100VDC

Input resistance:

700±10/350±10 Ω

Output resistance:

700±5/350±5 Ω

Zero output:

0~±1 %F.S

Safety overload:

120 %F.S

Cable length:

3 m

Cable connection:

Red: output (signal+) Yellow: Output (signal-)

White: Input (Excitation-) Green: Input (Excitation+)

Industrial Rotary Torque Transducer 30Nm 50N.m with High Precision Torque MeasurementNm

Accessories

Industrial Rotary Torque Transducer 30Nm 50N.m with High Precision Torque Measurement

Product Uses

Industrial Rotary Torque Transducer 30Nm 50N.m with High Precision Torque Measurement

Related Products

Industrial Rotary Torque Transducer 30Nm 50N.m with High Precision Torque Measurement Industrial Rotary Torque Transducer 30Nm 50N.m with High Precision Torque Measurement Industrial Rotary Torque Transducer 30Nm 50N.m with High Precision Torque Measurement
Industrial Rotary Torque Transducer 30Nm 50N.m with High Precision Torque Measurement Industrial Rotary Torque Transducer 30Nm 50N.m with High Precision Torque Measurement Industrial Rotary Torque Transducer 30Nm 50N.m with High Precision Torque Measurement
Industrial Rotary Torque Transducer 30Nm 50N.m with High Precision Torque Measurement Industrial Rotary Torque Transducer 30Nm 50N.m with High Precision Torque Measurement Industrial Rotary Torque Transducer 30Nm 50N.m with High Precision Torque Measurement

Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.

Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

Industrial Rotary Torque Transducer 30Nm 50N.m with High Precision Torque Measurement

Packaging & Shipping

Industrial Rotary Torque Transducer 30Nm 50N.m with High Precision Torque Measurement

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
