Specifications
Model Number :
ZHKY8050AS
Type :
Load Cell, dynamic torque sensors
Place of Origin :
Guangdong, China
Brand Name :
SNC
Use :
Torque detection
Theory :
strain gauge sensor
Output :
mV/V, mV/V or 0-5V, 0-10V, 4-20mA
Description :
ZHKY8050AS
Item :
rotary torque sensor
Capacity :
10NM-100N.m
Torque accuracy :
0.1% Full scale
Output type :
Torque and speed
Power supply :
±12 VDC / 24VDC
Max rotation speed :
4000 RPM max.
Speed measurement :
60 pulses
Application :
motor, dynamometer, torque measuring
Packaging Details :
Dynamic torque transducer 10Nm 20Nm 50Nm 100Nm dynamic rotary torque sensor----Carton box
Port :
shenzhen
Supply Ability :
50 Piece/Pieces per Month 10Nm 20Nm 50Nm100Nm rotary torque sensor
Price :
$500-700/pieces
Description

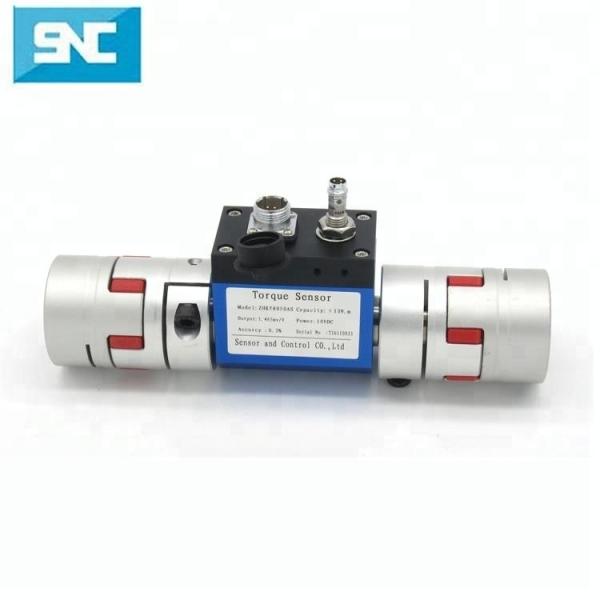

Dynamic torque transducer 10Nm 20Nm 50Nm 100Nm dynamic rotary torque sensor

Features:

Model: ZHKY8050AS

Capacity: 10Nm, 20Nm, 30Nm, 50Nm, 100Nm

Precision: ±0.1; ±0.3; ±0.5%F.S

Output sensitivity: 1.0~1.5.0 mV/V (Default), 4-20mA, 0-5/ 0-10VDC

Type: TORQUE SENSOR

Parameters:

Working Temperature:

-10~+80

Temperature compensated range:

room temperature ~+60

Temperature effect on zero:

±0.1 %F.S/10

Excitation voltage :

12 VDC

Insulted resistance:

2000 MΩ/100VDC

Input resistance:

700±10/350±10 Ω

Output resistance:

700±5/350±5 Ω

Zero output:

0~±1 %F.S

Safety overload:

120 %F.S

Cable length:

3 m

Cable connection:

Red: output (signal+) Yellow: Output (signal-)

White: Input (Excitation-) Green: Input (Excitation+)

Dynamometer Description ZHKY8050AS Dynamic Rotary Torque Sensor 10Nm 20Nm 50Nm 100NmNm

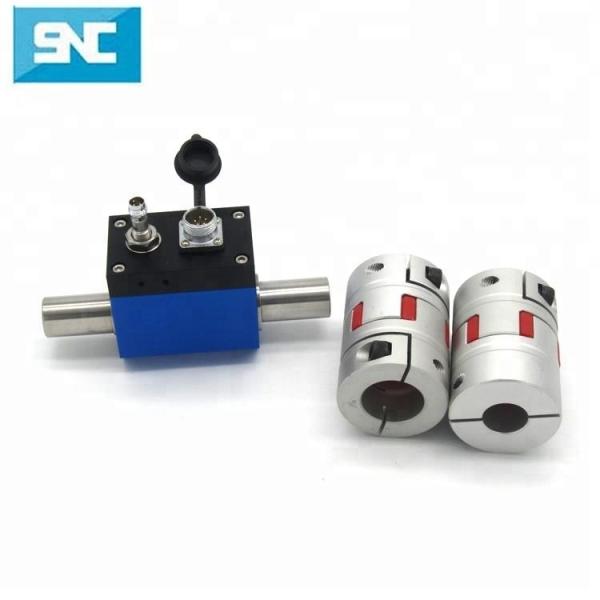

Accessories

Dynamometer Description ZHKY8050AS Dynamic Rotary Torque Sensor 10Nm 20Nm 50Nm 100Nm

Product Uses

Dynamometer Description ZHKY8050AS Dynamic Rotary Torque Sensor 10Nm 20Nm 50Nm 100Nm

Related Products

Dynamometer Description ZHKY8050AS Dynamic Rotary Torque Sensor 10Nm 20Nm 50Nm 100Nm Dynamometer Description ZHKY8050AS Dynamic Rotary Torque Sensor 10Nm 20Nm 50Nm 100Nm Dynamometer Description ZHKY8050AS Dynamic Rotary Torque Sensor 10Nm 20Nm 50Nm 100Nm
Dynamometer Description ZHKY8050AS Dynamic Rotary Torque Sensor 10Nm 20Nm 50Nm 100Nm Dynamometer Description ZHKY8050AS Dynamic Rotary Torque Sensor 10Nm 20Nm 50Nm 100Nm Dynamometer Description ZHKY8050AS Dynamic Rotary Torque Sensor 10Nm 20Nm 50Nm 100Nm
Dynamometer Description ZHKY8050AS Dynamic Rotary Torque Sensor 10Nm 20Nm 50Nm 100Nm Dynamometer Description ZHKY8050AS Dynamic Rotary Torque Sensor 10Nm 20Nm 50Nm 100Nm Dynamometer Description ZHKY8050AS Dynamic Rotary Torque Sensor 10Nm 20Nm 50Nm 100Nm

Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.

Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

Dynamometer Description ZHKY8050AS Dynamic Rotary Torque Sensor 10Nm 20Nm 50Nm 100Nm

Packaging & Shipping

Dynamometer Description ZHKY8050AS Dynamic Rotary Torque Sensor 10Nm 20Nm 50Nm 100Nm

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
