Specifications
Series :
Miniature Load Cell
Features :
small sensor
Mounting Type :
Fixed installation
Description :
Can be consulted, SC133 Load Cell
Model Number :
SC133
Type :
Load Cell
Place of Origin :
Guangdong, China
Brand Name :
SNC
Use :
PRESSURE SENSOR
Theory :
Resistance Sensor
Output :
Analog SENSOR
Model :
SC133
Material :
Aluminum load cell
Capacity :
1kg--20kg
rated output :
1.0±0.15mV/V
Accuracy class :
0.05% FS
safety overload :
120% RO
Size :
80x12.7x12.7mm
IP grade :
IP65
Connector :
JST or others connectors
Application :
small scale/ force / weight measurement
MOQ :
10 pieces
Price :
$2.80/pieces 10-499 pieces
Description

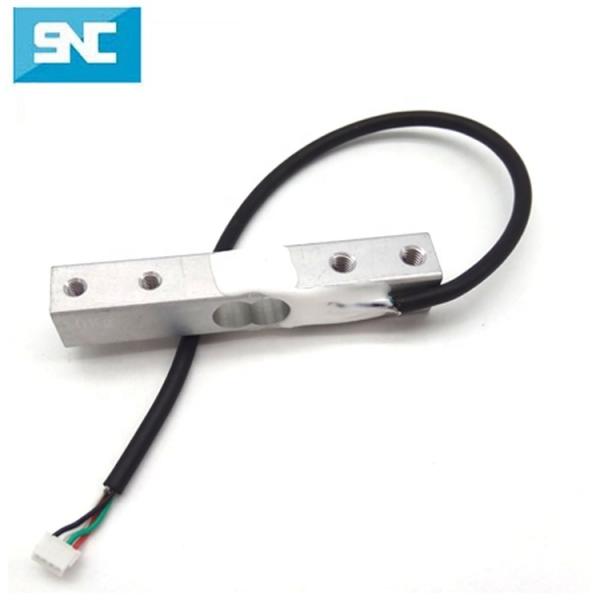

SC133 Mini Load cells Sensor 1kg 2kg 3kg 5kg 10kg 20kg 50kg High precision miniature weighing sensor load cell

High Precision Miniature Load Cell Sensor 1kg 2kg 3kg 5kg 10kg 20kg 50kg Ideal for Small Scale Weighing and Weight Measurement

Product List

Sensorcon Product Lists
Strain Gauge Load Cell Torque Sensor Display
Linear Strain gauge-AA Wireless sensor Slip ring rotary torque sensor Platform scale display
Half bridge strain gauge-BB,HA,GB,FB Micro load cell Contactless rotary torque sensor Truck scale display
Shear/torque strain gauge-AB,HA Single point load cell Static torque sensor Controller
Full bridge strain gauge-EB, FG,FD Button load cell Meters Junction box
Tee Rosettes strain gauge-CA,BA Shear beam load cell Coupling Big screen display
Round type strain gauge S type load cell Amplifier
Semi-conductor strain gauge Column load cell
Bridge type load cell
Product Description

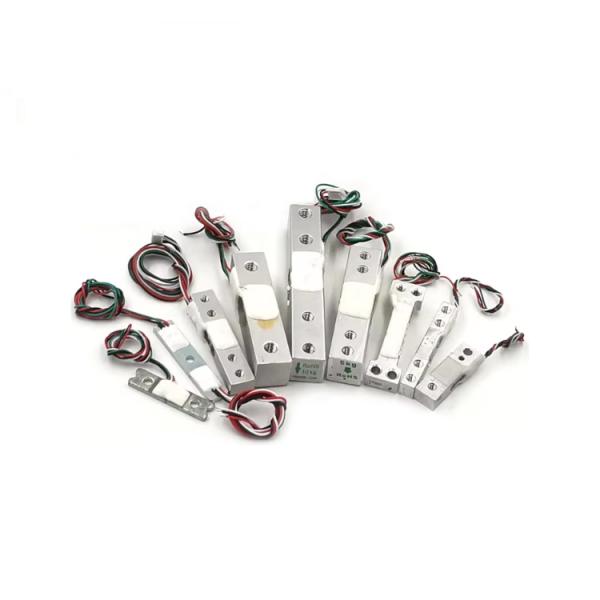

High Precision Miniature Load Cell Sensor 1kg 2kg 3kg 5kg 10kg 20kg 50kg Ideal for Small Scale Weighing and Weight Measurement

High Precision Miniature Load Cell Sensor 1kg 2kg 3kg 5kg 10kg 20kg 50kg Ideal for Small Scale Weighing and Weight Measurement

Parameters

Application kitchen scale, pricing scale, small weighing scale, force test equipment
Capacity 1kg, 2kg 3kg 5kg 100kg 20kg 30kg 50kg
Comprehensive Error 0.05
Output sensitivity 1.0±0.1mV/V
Nonlinearity 0.05% F.S.
Repeatability 0.05% F.S.
Hysteresis 0.05% F.S.
Creep 0.05 (3min) % F.S.
Zero balance 0.05 (1min) % F.S.
Temperature effect on zero 0.2 % F.S./10℃
Temp. effect on span ≤0.15 F.S./10℃
Zero output ±0.1 MV/V
Input resistance 1000±50 ohm
Output resistance 1000±50 ohm
insulation resistance ≥2000 MΩ
Recommended excitation voltage 5-10V
Ultimate overload 150%F.S.
Load cell material Aluminum alloy
Wiring Red- input+, black- Input-. Green- Output+, White- output -

High Precision Miniature Load Cell Sensor 1kg 2kg 3kg 5kg 10kg 20kg 50kg Ideal for Small Scale Weighing and Weight Measurement

Load cell Accessorie

High Precision Miniature Load Cell Sensor 1kg 2kg 3kg 5kg 10kg 20kg 50kg Ideal for Small Scale Weighing and Weight Measurement

High Precision Miniature Load Cell Sensor 1kg 2kg 3kg 5kg 10kg 20kg 50kg Ideal for Small Scale Weighing and Weight Measurement

Related Products

High Precision Miniature Load Cell Sensor 1kg 2kg 3kg 5kg 10kg 20kg 50kg Ideal for Small Scale Weighing and Weight Measurement

Packaging & Shipping

High Precision Miniature Load Cell Sensor 1kg 2kg 3kg 5kg 10kg 20kg 50kg Ideal for Small Scale Weighing and Weight Measurement

Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.

Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

High Precision Miniature Load Cell Sensor 1kg 2kg 3kg 5kg 10kg 20kg 50kg Ideal for Small Scale Weighing and Weight MeasurementHigh Precision Miniature Load Cell Sensor 1kg 2kg 3kg 5kg 10kg 20kg 50kg Ideal for Small Scale Weighing and Weight Measurement

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
