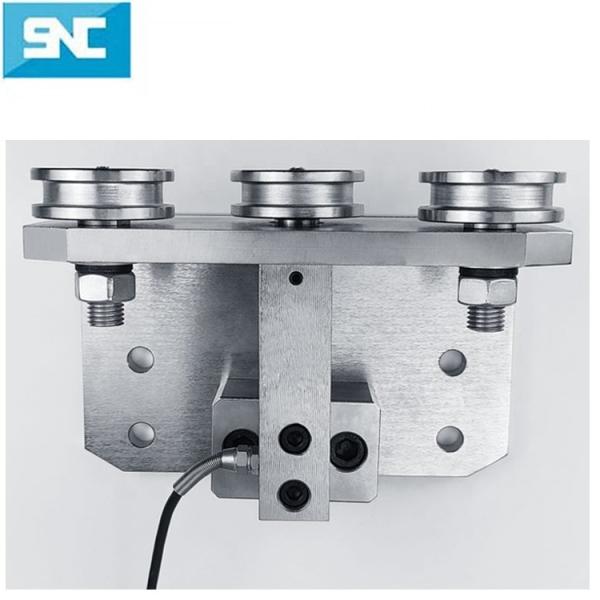

Accurate Measurement of Metal Wire Rope Weight with Three Pulley Cable Tension Sensor and Tension Load Cell 20N 50KG 1000N
Accurate Measurement of Metal Wire Rope Weight with Three Pulley Cable Tension Sensor and Tension Load Cell 20N 50KG 1000N
Accurate Measurement of Metal Wire Rope Weight with Three Pulley Cable Tension Sensor and Tension Load Cell 20N 50KG 1000N
Accurate Measurement of Metal Wire Rope Weight with Three Pulley Cable Tension Sensor and Tension Load Cell 20N 50KG 1000N
Accurate Measurement of Metal Wire Rope Weight with Three Pulley Cable Tension Sensor and Tension Load Cell 20N 50KG 1000N
Accurate Measurement of Metal Wire Rope Weight with Three Pulley Cable Tension Sensor and Tension Load Cell 20N 50KG 1000N
Accurate Measurement of Metal Wire Rope Weight with Three Pulley Cable Tension Sensor and Tension Load Cell 20N 50KG 1000N
Accurate Measurement of Metal Wire Rope Weight with Three Pulley Cable Tension Sensor and Tension Load Cell 20N 50KG 1000N
Accurate Measurement of Metal Wire Rope Weight with Three Pulley Cable Tension Sensor and Tension Load Cell 20N 50KG 1000N
Accurate Measurement of Metal Wire Rope Weight with Three Pulley Cable Tension Sensor and Tension Load Cell 20N 50KG 1000N
Accurate Measurement of Metal Wire Rope Weight with Three Pulley Cable Tension Sensor and Tension Load Cell 20N 50KG 1000N
Accurate Measurement of Metal Wire Rope Weight with Three Pulley Cable Tension Sensor and Tension Load Cell 20N 50KG 1000N
Specifications
Series :
tension load cell
Features :
3 pulley load cell
Mounting Type :
screw installation
Description :
rope tension load cell, SC313 Load Cell
Model Number :
SC313
Type :
Tension Load Cell
Place of Origin :
Guangdong, China
Brand Name :
SNC
Use :
PRESSURE SENSOR
Theory :
Resistance Sensor
Output :
Analog SENSOR
Model :
SC313
Material :
Aluminum Alloy
Capacity :
5N to 1000N
Accuracy class :
0.05% F.S
rated output :
1.5+/- 0.1 MV/V
Excitation voltage :
5-12VDC
safe over load :
120% R.O.
IP grade :
IP66
Cable :
5 x 2m
Application :
Textile, Mechanical Tension Testing
Price :
$60-300/pieces
Description

Three pulley cable tension sensor measuring pull load cell measurement yarn Metal wire rope weight Force sensors 20N 50KG 1000N

Accurate Measurement of Metal Wire Rope Weight with Three Pulley Cable Tension Sensor and Tension Load Cell 20N 50KG 1000N

Accurate Measurement of Metal Wire Rope Weight with Three Pulley Cable Tension Sensor and Tension Load Cell 20N 50KG 1000N

Accurate Measurement of Metal Wire Rope Weight with Three Pulley Cable Tension Sensor and Tension Load Cell 20N 50KG 1000N

Accurate Measurement of Metal Wire Rope Weight with Three Pulley Cable Tension Sensor and Tension Load Cell 20N 50KG 1000NAccurate Measurement of Metal Wire Rope Weight with Three Pulley Cable Tension Sensor and Tension Load Cell 20N 50KG 1000N

Accurate Measurement of Metal Wire Rope Weight with Three Pulley Cable Tension Sensor and Tension Load Cell 20N 50KG 1000N

Product Description

Parameter:

Capacity 5N, 10N, 20N, 30N, 50N, 10N, 200N. 500N. 1000N
Sensitivity 1.5 ± 0.1 mv/V
Precision 0.05%F·S
Creep ±0.03 %F·S/30min
Non-linearity ±0.03 %F·S
hysteresis error ±0.03 %F·S
Repeatability ±0.03 %F·S
Zero temperature coefficient ±0.02 %F·S/10℃
Temperature Effect On Output ±0.02 %F·S/10℃
Input resistance 385 ± 35 Ω
Output resistance 350± 3 Ω
Insulation resistance ≥ 2000 MΩ
Excitation voltage 5-12 VDC
Working temp. range -20 ~ 70℃
Safety overload 120 %F·S
Sealing grade IP66
Material Aluminum alloy
Cable 5 x 2m
Wiring Red: EXC+, Black: EXC- , Green: SIG+, White: SIG-
Optional function with build-in transmitter, have 0-5V, 4-20mA output
Or RS485, RS232 communication output



Accurate Measurement of Metal Wire Rope Weight with Three Pulley Cable Tension Sensor and Tension Load Cell 20N 50KG 1000N

Accurate Measurement of Metal Wire Rope Weight with Three Pulley Cable Tension Sensor and Tension Load Cell 20N 50KG 1000N

Accurate Measurement of Metal Wire Rope Weight with Three Pulley Cable Tension Sensor and Tension Load Cell 20N 50KG 1000N

Related Products

Accurate Measurement of Metal Wire Rope Weight with Three Pulley Cable Tension Sensor and Tension Load Cell 20N 50KG 1000N

Product List

Sensorcon Product Lists
Strain Gauge Load Cell Torque Sensor Display
Linear Strain gauge-AA Wireless sensor Slip ring rotary torque sensor Platform scale display
Half bridge strain gauge-BB,HA,GB,FB Micro load cell Contactless rotary torque sensor Truck scale display
Shear/torque strain gauge-AB,HA Single point load cell Static torque sensor Controller
Full bridge strain gauge-EB, FG,FD Button load cell Meters Junction box
Tee Rosettes strain gauge-CA,BA Shear beam load cell Coupling Big screen display
Round type strain gauge S type load cell Amplifier
Semi-conductor strain gauge Column load cell
Bridge type load cell
Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.

Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

Accurate Measurement of Metal Wire Rope Weight with Three Pulley Cable Tension Sensor and Tension Load Cell 20N 50KG 1000N

Accurate Measurement of Metal Wire Rope Weight with Three Pulley Cable Tension Sensor and Tension Load Cell 20N 50KG 1000N

Packaging & Shipping

Accurate Measurement of Metal Wire Rope Weight with Three Pulley Cable Tension Sensor and Tension Load Cell 20N 50KG 1000N

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
