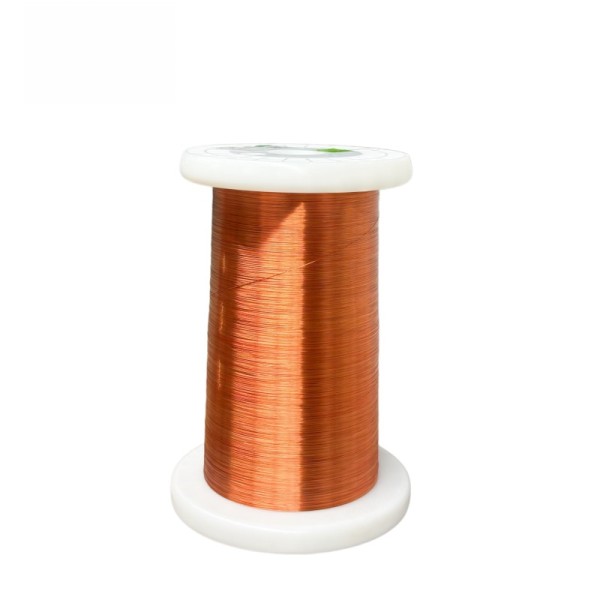

0.100×2 mm Parallel Wire UEW Enamelled Copper Wire Bonded Integrated Structure
0.100×2 mm Parallel Wire UEW Enamelled Copper Wire Bonded Integrated Structure
Specifications
Model Number :
2UEW/155RN/NP
Film thickness :
Thin film
MOQ :
200KG
Delivery Time :
15days
Thermal Class :
155℃
Payment Terms :
T/T
Conductor Material :
Copper
Supply Ability :
10 Tons/Monthly
Solderability Test :
≤ 2S/390±10℃
Certification :
UL/QC080000/ISO9001/ISO14001/IATF16949/HSF
Finished Resistance :
1.044-1.132 Ω/m20℃
Place of Origin :
China
Conductor Diameter :
0.1mm
Price :
Negotiation
Color :
Red+Natural
Brand Name :
HUAYE
Breakdown Voltage :
≥1200V
Packaging Details :
Cartons
Description
OVERVIEW

This multifilar parallel wire is composed of two 0.1mm UEW enameled wires fixed in parallel. One wire is red, the other is natural color, with uniform enamel thickness of 2 and thermal class 155°C. The bonded integrated structure avoids strand separation during winding and cutting, featuring low high-frequency loss and stable electrical performance, widely used in small transformers and inductors.

FEATURES
  • Bonded integrated structure, no strand separation during cutting and winding
  • Great flexibility, no cracking when winding tiny coils
  • Effectively reduce high-frequency AC loss, lower heating
  • Stable resistance & uniform impedance for consistent performance
  • Multiple thermal class options (130–220℃) to match different working environments
APPLICATIONS
  • Small transformers
  • High-frequency coils
  • Inductors
  • Relays
  • Solenoid coils
  • Precision electronic components
  • Automotive electronic coils
  • Sensor winding
  • Consumer electronics
  • Color-coded internal wiring
FAQ

Q1: Why are the two wires colored red and natural separately?

A1: Two different colors help you quickly distinguish positive and negative terminals during winding and soldering, reducing wiring errors.

Q2:Will the two separate strands spread apart when cutting or winding?

A2: The wire adopts self-bond integrated parallel structure. The two wires stick tightly together, no strand scattering during cutting, stripping and winding.

Q3: Can this wire be used for automatic high-speed winding machines?

A3: Yes. Fixed parallel structure keeps neat arrangement, perfectly compatible with automatic winding equipment.

Q4:Can I customize other wire diameters, strand counts or colors?

A4: Customization is available. We support different wire gauges, 2/3/4 multi-strand parallel wires and custom color combinations.

Q5:What’s your minimum order quantity for this parallel wire?

A5: Small trial orders are acceptable, contact us for MOQ and unit price.
