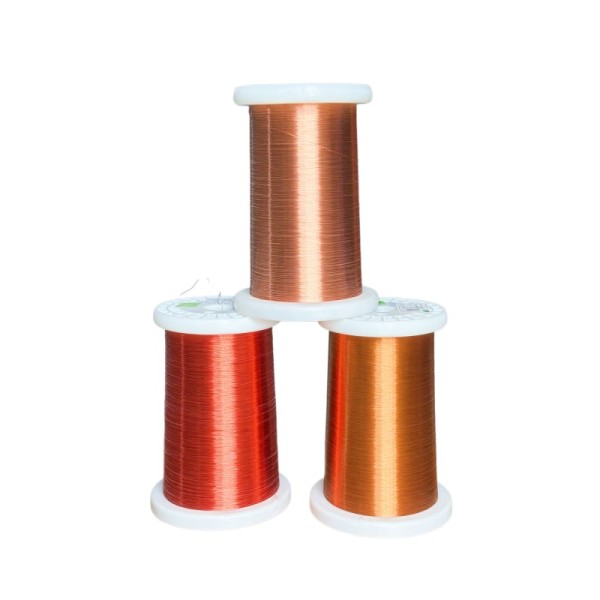

Custom Self-bonding Round Wire Series
Custom Self-bonding Round Wire Series
Specifications
Model Number :
UEW AIW SVW
Insulation material :
Polyurethane/Polyester-Imide/Polyamide-Imide
MOQ :
200KG
Delivery Time :
15days
Tensile strength :
≥320Mpa
Payment Terms :
T/T
Film thickness :
Customizable
Supply Ability :
10 Tons/Monthly
Heat resistence class :
155, 180, 200 and above
Certification :
UL/QC080000/ISO9001/ISO14001/IATF16949/HSF
Nomina Diameter :
0.015-1.500mm
Place of Origin :
China
Bending resistance :
> 1500 times
Price :
Negotiation
Solderability :
Direct soldering
Brand Name :
HUAYE
Conductor Material :
Copper/CCA/Alloy
Packaging Details :
Cartons
Description

OVERVIEW

Self-bonding enameled wire is a double-coated magnet wire. A self-bonding layer made of thermoplastic, thermosetting or other materials is applied over the primary insulating film. The insulating varnish generally adopts polyurethane, polyester or equivalent materials. This wire features excellent heat resistance, corrosion resistance, dielectric performance and mechanical strength, supporting safe and stable operation of electronic and communication equipment, while boosting production efficiency and finished product quality.

We supply self-bonding enameled wires with diverse matching combinations of bonding varnish and insulating varnish to satisfy varied customer requirements.

FEATURE

  • Excellent size control.
  • Excellent bending resistance and Breaking force resistance.
  • Good high temperature resistance and anti-bacterial properties.
  • Excellent reliability.

APPLICATION

With its excellent mechanical properties and electrical conductivity, this product is widely used in: speaker/High frequency litz wire/voice coil/Consumer Electronics/-textile.

FAQ

Q1: Is soldering required to remove enamel?

A1: UEW enamel typically supports direct soldering under appropriate temperature conditions, depending on process requirements.

Q2: How is this self-bonding magnet wire processed?

A2: This self-bonding magnet wire can be activated either by heat and by solvent treatment. Heat bonding uses hot air, ovens, or electrical current to soften the bonding layer, while solvent bonding uses alcohol-based or specialized solvents to fuse adjacent turns of the winding.

Q3: Can you provide customized dimensions?

A3: Yes. Customized diameters, color, insulation build, and spool packaging can be supplied according to customer requirements.

Q4: What information is required for a quotation?

A4: To provide an accurate quotation, please share the wire dimensions, insulation type, thermal class, required quantity, packaging requirements, and destination country.

Q5: If the MOQ is not met, can it still be produced?

A5: If the order quantity does not meet the MOQ requirement, we can also produce it for you, but the price will be higher than the MOQ price. Generally, it is calculated based on 3-5 times the MOQ unit price multiplied by the order quantity that you need, and plus a startup/module fee of 1,500 RMB. (If the total price of samples is higher than the MOQ price, then we will follow the total price of MOQ)
