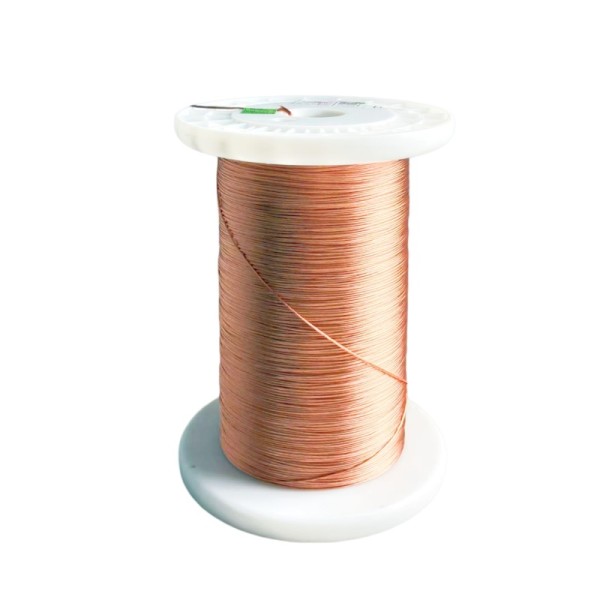

2SBUEWZ Polyurethane Self Bonding Enameled Litz Wire 0.050mmX46X4 Class F
2SBUEWZ Polyurethane Self Bonding Enameled Litz Wire 0.050mmX46X4 Class F
Specifications
Model Number :
PIT
Cover Material :
PIT
MOQ :
200
Delivery Time :
15-25 Working Days
Insulation :
Enamel
Payment Terms :
T/T
Highlight :
super thin copper litz wire, copper litz wire 0.04 mm, super thin 0.04 mm copper wire
Supply Ability :
5000kgs/month
Certification :
IEC/NEMA/JIS/RoHS/ISO/UL/VDE
Rated Temperature :
155（F）
Place of Origin :
CHINA
No. Of Strands :
184
Price :
Negotiation
Single wire Diameter :
0.050mm
Brand Name :
HUAYE
Conductor Material :
Copper/Pure Copper/Oxygen Free Copper/CCA
Packaging Details :
Carton + Wooden Case
Description
Self-Bonding Litz Wire 0.050mm * 46 * 4
Technical Specifications
Model
2SBUEW 0.290*46*4 Litz Wire
Structure
46*4 Ø0.050mm (Total 184 Strands)
Conductor
99.99% Oxygen-Free Copper
Insulation
2UEW
Thermal Class
Class F (155°C)
Certifications
RoHS, REACH, UL, ISO9001, IATF16949
Overview

This self-bonding litz wire is made of 0.050mm ultra-fine polyurethane enameled copper strands (46 * 4 construction). It is designed for high-frequency applications requiring low AC loss, excellent flexibility, and stable coil forming performance.

The self-bonding feature allows coil fixation through heat or solvent activation, improving assembly efficiency and structural stability.

Key Features

  • 0.050mm ultra-fine copper strands

  • 46 * 4 litz construction

  • Low AC resistance for high-frequency use

  • Self-bonding for stable coil forming

  • High flexibility and good winding performance

Applications

  • High-frequency transformers

  • Wireless charging coils

  • EV power electronics

  • High-efficiency inductors

  • Communication devices

Quality & Standards

Manufactured under strict quality control, compliant with JIS, NEMA, and IEC standards. Each batch is tested for electrical performance and insulation reliability.

Custom Options

  • Strand size and construction

  • Insulation type

  • Bonding temperature

  • Thermal class customization
