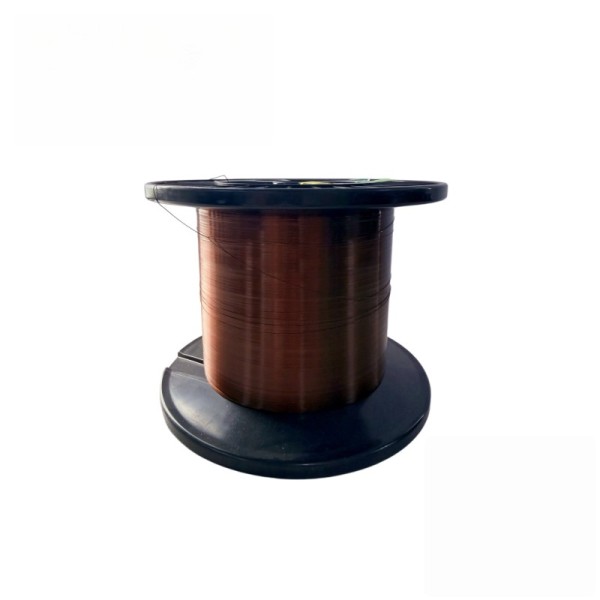

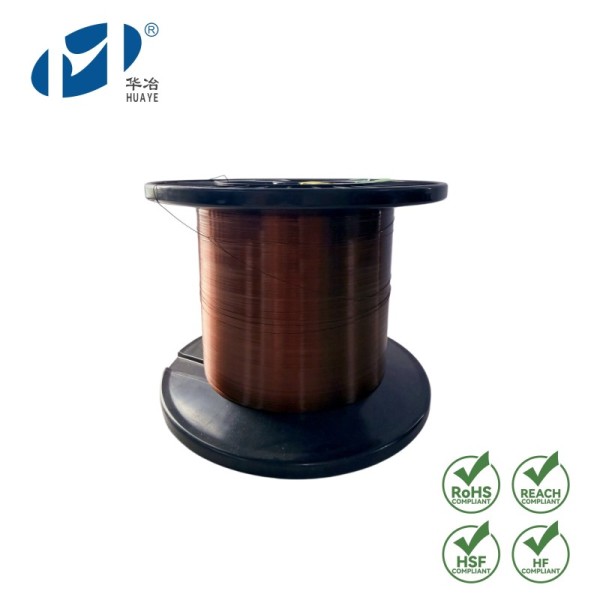

Custom Size Copper Clad Aluminum Wire Enameled Copper Wire For Voice Coil And HiFi Audio
Custom Size Copper Clad Aluminum Wire Enameled Copper Wire For Voice Coil And HiFi Audio
Custom Size Copper Clad Aluminum Wire Enameled Copper Wire For Voice Coil And HiFi Audio
Custom Size Copper Clad Aluminum Wire Enameled Copper Wire For Voice Coil And HiFi Audio
Specifications
Type :
Self-bonding
Color :
Red/black/blue/green/nature .etc
Wire gauge :
0.020mm~0.700mm,Customized
Model Number :
SBEISVW
Packaging Details :
Cartons
Insulation :
Polyesterimide(EI)/ Polyesterimide Composite Polyamide Imide(EI-AI)
Special use :
Cold Heading Steel,Free Cutting Steel
Brand Name :
HUAYE
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Conductor material :
≥99.95% pure copper, CCA wire
Conductor type :
Solid,Stranded,solid or stranded
Alloy or not :
CCAW/Copper
Tensile strength :
≥240Mpa
Certification :
UL/ISO 9001/ISO 14001/IATF 16949/QC080000
Delivery Time :
15 days
Payment Terms :
T/T
Standard :
IEC60317/JIS C3202/NEMA 1000
Supply Ability :
50 Tons/monthly
Application :
Hi-Fi stereo speakers, vehicle car audio speakers, professional loudspeakers and other audio equipment fields.
Rated temperature :
Class 180℃
Description
Overview
This 0.100-0.700mm Enameled Copper Wire for Voice Coil is professionally designed for high-fidelity audio and speaker equipment. We provide two mainstream insulation solutions: single polyesterimide (EI) Class 180 and composite polyesterimide over polyamide-imide (EI/AI) Class 200, perfectly matching ordinary and high-temperature working environments of speakers, earphones and car audio. The wire features stable electrical performance, firm paint film adhesion and excellent secondary softening property, ensuring clear sound quality and long-term stable operation of audio equipment.
We are a professional enameled wire factory with 20 years of manufacturing experience. This Enameled Copper Wire for Voice Coil covers a size range of 0.100mm to 0.700mm, providing two insulation options including Class 180 polyesterimide (EI) and Class 200 EI/AI composite insulation. The wire features high temperature resistance, ultra-strong paint film adhesion and excellent secondary softening performance, maintaining stable electrical and mechanical performance during long-term high-frequency vibration. It is widely applicable to HiFi speakers, car audio systems and Bluetooth earphone speakers. All products have complete certification qualifications. We support sample testing, OEM customization and large-scale mass production with flexible MOQ and 15-day delivery cycle. Welcome to contact us for technical parameters and samples!
Core Product Advantages
1. High Temperature Resistance: Dual temperature grades of Class 180 and Class 200 optional, resisting high heat generated by high-frequency vibration of voice coils, not easy to age or deform.
2. Super Strong Paint Adhesion: Uniform and smooth paint film with strong bonding force, no peeling or cracking during high-speed winding and long-term vibration.
3. Excellent Secondary Softening Performance: Good thermal softening characteristic, convenient for voice coil shaping and fixing, improving production yield for audio manufacturers.
4. Ultra-stable Overall Performance: Consistent wire diameter and stable conductivity, effectively avoiding sound distortion, noise and unstable acoustic output.
5. Professional Audio-grade Matching: Suitable for full-range audio equipment from mini earphone speakers, HiFi speakers to vehicle-mounted car audio systems.
Product Basic Parameters
Product Name: Enameled Copper Wire for Voice Coil
Wire Type: Round Enameled Copper Wire
Size Range: 0.100mm - 0.700mm
Insulation & Temperature Grade: Class 180 EI / Class 200 EI/AI Composite
Core Material: High-purity Oxygen-free Copper
Application: HiFi Speaker, Car Audio, Bluetooth Earphone Speaker, Loudspeaker
Factory Strength & Service Support
We are a professional enameled wire manufacturer with 20+ years of R&D and production experience, specializing in high-precision audio-grade voice coil wires.
- Support free sample testing for performance verification
- Flexible MOQ and stable mass production capacity
- Custom wire size and insulation requirements acceptable
- Strict quality control, uniform wire diameter and stable batch performance
- Standard production lead time: 15 working days
Application Scenarios
Widely used in Hi-Fi stereo speakers, vehicle car audio speakers, Bluetooth earphone miniature speakers, professional loudspeakers and other audio equipment fields.
