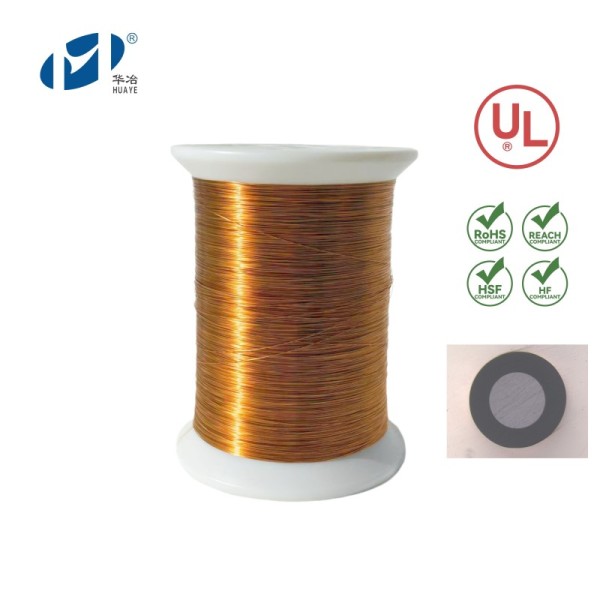

0.250mm Fully Insulated Enameled Wire Class 180 High Temperature Resistant IEC 60317
0.250mm Fully Insulated Enameled Wire Class 180 High Temperature Resistant IEC 60317
0.250mm Fully Insulated Enameled Wire Class 180 High Temperature Resistant IEC 60317
0.250mm Fully Insulated Enameled Wire Class 180 High Temperature Resistant IEC 60317
Specifications
Model Number :
FIW4
Packaging Details :
Carton+Wooden case
Conductor material :
Copper,Copper Clad Aluminum,Aluminum,CU/CCA/CCAM
Payment Terms :
T/T,Western Union
Price :
Negotion
Thermal class :
130 , 155 , 180
Material :
99.99% Pure Copper,Polyesterimide enameled,High Purity Copper,oxygen-free copper
Standard :
NEMA,IEC,GB,JIS,IEC/NEMA/JIS
Insulation :
PU
Product name :
enameled binding wire,Soldering enameled aluminum wire,180 Polyesterimide Enameled Copper Clad Aluminum Wire,ustc litz wire,copper wire mesh
Size :
0.090mm (Customized)
Enamel type :
UEW
Supply Ability :
5000kgs/month
Application :
Heating,Transformer,Other,motor,windings
Conductor type :
Solid,Stranded,Other
Certification :
ISO9001/ISO14004/IATF16949/UL/RoHS/REACH
Place of Origin :
HUBEI
Color :
Red,Reddish brown (as clients' request),natural,Normal,optional
Rated voltage :
3600V
MOQ :
250kg
Insulation material :
Enameled,Rubber,PVC,Other,PEW UEW EIW EI/AIW
Delivery Time :
15-25 work days
Brand Name :
HUAYE
Conductor :
Copper
Description
FIW6 0.250mm Fully Insulated Wire Details
Brief Introduction

FIW6 0.250mm fully insulated wire is Class F high-temperature resistant composite insulated wire, manufactured in accordance with IEC 60317 and NEMA MW85-C standards. Featuring ultra-high breakdown voltage, direct solderability without stripping insulation, and uniform insulation thickness, it is an upgraded and cost-effective alternative to traditional triple insulated wire. Widely used in high-frequency transformers, SMPS, automotive coils, miniature motors and precision electronic equipment.

Exact Technical Parameters
Item Specification
Conductor Diameter 0.250mm ± 0.003mm
Finished Outer Diameter 0.393mm – 0.402mm
Conductor Resistance (20℃) ≤ 348.0 Ω/km
Temperature Class 180℃ (Class H)
Minimum Breakdown Voltage ≥ 11kV
Solder Condition 390℃ / 2s, no stripping required
Thermal Softening Breakdown 250℃ / 2min no breakdown
Insulation Material Cresol Free Modified Epoxy / Polyimide Composite
Standard Compliance IEC 60317, NEMA MW85-C
Color Natural / Black / Red / Blue / Green (Customizable)
Core Features
  • High Insulation Performance: Multi-layer composite coating with full online high-voltage testing, no pinholes, meets reinforced insulation requirements, stable and safe for high-frequency working conditions.
  • Excellent Solderability: Supports direct soldering without insulation stripping, greatly improves production efficiency and reduces processing costs.
  • Compact & High Density Winding: Uniform and thin insulation layer, smaller finished outer diameter, supports dense winding, effectively reduces product volume.
  • Superior Mechanical Properties: Tough insulation film with great wear resistance and flexibility, adapts to high-speed automatic winding machines, low breakage rate.
  • Eco-friendly & Reliable: Cresol free formula, halogen-free optional, fully compliant with international safety standards, non-toxic and environmentally friendly, suitable for industrial, automotive and consumer electronic applications.
Packaging & Application

Packaging: Standard 5kg / 10kg plastic/wooden reels, fixed length packaging or customized length available.

Application: High frequency transformers, switching power supplies, automotive electronic coils, miniature motors, inductors and precision electrical equipment.
