Multi Cores Mini Flat Indoor Fiber Optic Cable With Aramid Yarn GJFJV
Multi Cores Mini Flat Indoor Fiber Optic Cable With Aramid Yarn GJFJV
Specifications
Brand Name :
HUAXIN/ OEM
Model Number :
Indoor Fiber Optic Cable GJFJV
Certification :
ISO9001,ISO14001,ISO45001,CE
Place of Origin :
CHINA
MOQ :
2000M
Price :
$0.03-$0.08
Payment Terms :
T/T,L/C
Supply Ability :
2000KM PER DAY
Delivery Time :
5-30Work Days
Packaging Details :
1000-2000km per tray, according to customer's requirement Plastic tray or wooden tray. Plastic or pearl cotton outer cover, suitable for ocean transportation.
Description

Multi Cores Mini Flat Indoor Fiber Optic Cable With Aramid Yarn GJFJV

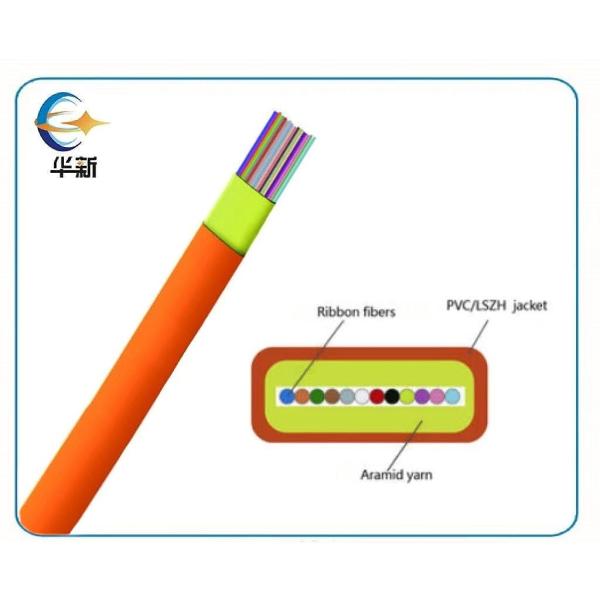

GJFJV indoor fiber optic cables are made of uniformly applied aramid yarns or high-strength glass, with the yarns serving as the strength building blocks for 900μm or 600μm compact buffer fibers.A tight plastic buffer layer (usually PVC or LSZH) is wrapped directly around the outside of the fiber to provide mechanical protection and resistance to bending. Single-mode fiber (e.g. G.652D) is used to support long-distance transmission, and multi-core design (e.g. 4-core, 6-core, 12-core, etc.) meets the needs of high-density cabling.

Product Features

  • Lined fibers with different colors make it easy for installation
  • High strength aramid yarn offers high tensile strength.
  • Good stability performance with high and low temperatures.
  • Flame-retardant.

Technical Parameters

Fiber Count

Outer Diameter

(MM)

Weight

(G/M)

Tension

(N)

MIn.bending radius

(MM)

Crush Resistance

(N/100mm2)
Long Time Short Time Static Dynamic
4 3.5*2.5 12.0 200 80 35H 25H 500
6 3.8*2.5 13.0 200 200 35H 25H 500
8 4.5*2.5 15.0 200 200 35H 25H 500
12 5.0*2.5 17.0 200 200 35H 25H 500

Temperature:

PVC A:-20℃~ +70 ℃ B:-20℃ ~+90℃
Hytrel: -40℃~+120℃
LSZH -20℃~+70℃
Nylon -40℃~+120℃

Company Profile

Multi Cores Mini Flat Indoor Fiber Optic Cable With Aramid Yarn GJFJV

Certification

Multi Cores Mini Flat Indoor Fiber Optic Cable With Aramid Yarn GJFJV

Exhibition

Multi Cores Mini Flat Indoor Fiber Optic Cable With Aramid Yarn GJFJV

Packaging and Transportation

Multi Cores Mini Flat Indoor Fiber Optic Cable With Aramid Yarn GJFJV

FAQ

  • Do you accept customized packaging/labels?

We can provide OEM packaging (such as customer LOGO box label), but need to confirm the design in advance.

  • Can the length of optical fiber be customized?

Yes, we support customization service and can provide specific length of fiber optic products according to your requirements.

  • Can you provide samples?

We can provide free samples, but the shipping cost is borne by the customer.

  • Is the quality of your fiber optic cable products guaranteed?

All our fiber optic cable products are ISO 9001 certified.

  • How do I make a payment?

Support T/T (Telegraphic Transfer), L/C (Letter of Credit), 30% deposit, 70% final payment before shipment.
